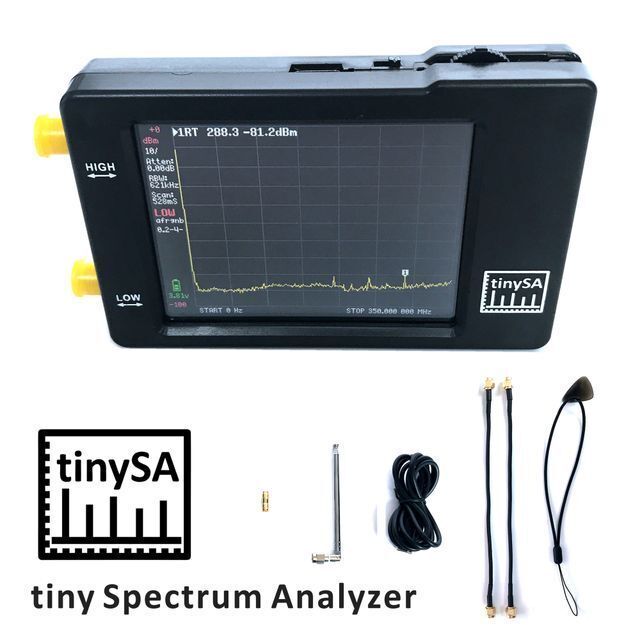

Erik Hugen Zeenko Hand held tiny Spectrum analyzer tinySA 2.8" display with battery

1. Pls open the parcel and check before signing. And refuse if it's demaged. We can apply for compensation.

2. We will mark original amount in invoice bec customs are very strict this period. Kindly note this.

3. If you don't need the battery in the NanoVNA, pls contact us in advance.

4. According to clients' feedback, DHL (3C way) is good for US clients, it's quick and no extra duty. But will charge duty for
other countries, especially EU clients. You can choose post shipping way via Aliexpress.
https://www.aliexpress.com/store/all-wholesale-products/5800447.html?spm=a2g0o.detail.0.0.8ef25c75xsnOUH

Low input mode spec:

* Input frequency range from 100kHz to 350MHz
* Input impedance 50 ohm when input attenuation set to 10dB or more.
* Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps
* Absolute maximum input level without attenuation of +10dBm
* Absolute maximum input power with 30dB attenuation of +20dBm for short period
* Input Intercept Point of third order modulation products (IIP3) with 0dB attenuation of +15dBm
* 1dB compression point at +2dBm with 0dB attenuation
* Power detector resolution of 0.5dB and linearity versus frequency of +/-1dB
* Absolute power level accuracy after power level calibration of +/- 1dB
* Lowest discernible signal using a resolution bandwidth of 30kHz of -102dBm
* Frequency accuracy equal to the selected resolution bandwidth
* Phase noise of -90dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset
* Spur free dynamic range when using a 30kHz resolution bandwidth of 70dB
* Manually selectable resolution filters of 3, 10, 30, 100, 300, 600kHz. Automatic selection of one of the 57 resolution filters.
* On screen resolution of 145 or 290 measurement points.
* Scanning speed of over 1000 points/second using largest resolution filters.
* Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth
* Spur suppression option for assessing if certain signals are internally generated or actually present in the input signal

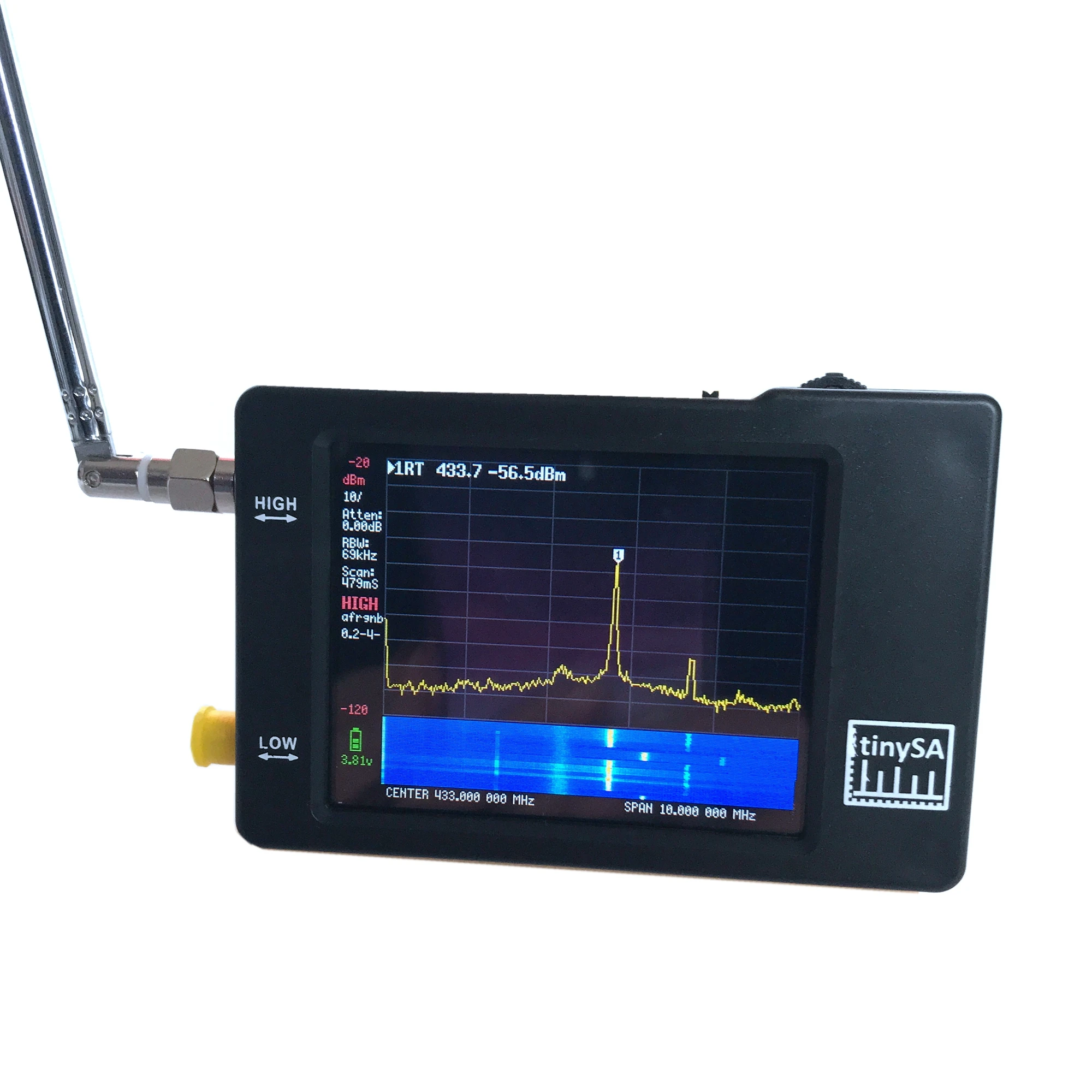

High input mode spec:

* Input frequency range from 240MHz to 960MHz
* As there is no input bandfilter strong signals outside the 240MHz to 960MHz range can cause distortion of the in band signals
* Absolute maximum input level without attenuation of +10dBm
* Input Intercept Point of third order modulation products (IIP3) of -5dBm
* 1dB compression point at -6dBm with 0dB attenuation
* Power detector resolution of 0.5dB and linearity versus frequency of +/-1dB
* Absolute power level accuracy after power level calibration of +/- 1dB
* Lowest discernible signal using a resolution bandwidth of 30kHz of -115dBm
* Frequency accuracy equal to the selected resolution bandwidth
* Spur free dynamic range when using a 30kHz resolution bandwidth of 50dB
* Selectable (automatic and manual) resolution filters of 3, 10, 30, 100, 300 and 600kHz
* Optional 25dB to 40dB frequency dependent input attenuator. The power level error with this attenuator activated increases to +/- 15dB
* On screen resolution of 145 or 290 measurement points.
* Scanning speed of over 1000 points/second using largest resolution filters.
* Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth

Low output mode spec:

* Sinus output with harmonics below -40dB of fundamental
* Output frequency range from 100kHz to 350MHz
* Output level selectable in 1dB steps between -76dBm and -6dBm
* Optional AM, narrow FM and wide FM modulation or slow sweep over selectable frequency span

High output mode spec:

* Square wave output
* Output frequency range from 240MHz to 960MHz
* Output level selectable in variable increments between -38dBm and +13dBm
* Optional narrow FM and wide FM modulation or slow sweep over selectable frequency span

Reference generator spec:

* Optional square wave output with fundamental at -25dBm connected to high input/output
* Frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz.

Battery spec:

* Charging time max 1 hour on 500mA minimum USB port or USB charger
* Operation on fully charged battery for at least 2 hours
