Beston high quality smokeless biomass carbonization furnace wood charcoal making machine

Supplier: Beston (Henan) Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Alica Luo
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Raw material:	rice husk, straw, bits of wood, Palm Shell;
Brand Name:	Beston;	Usage:	Charcoal Maker;
Applicable Industries:	Manufacturing Plant,Carbonization equipment;	Payment Terms:	L/C,T/T;
Dimension(LWH):	1.62.28.5 m;	Advantage:	Continuous Working Environment Friendly;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Port:	Lianyungang/qiangdao/shanghai;
Product Material:	Carbon Steel;	Installation:	Engineer Guide;
Supply Ability:	200 Sets per Year smokeless biomass biochar charcoal carbonization stove;	Local Service Location:	Egypt,Turkey,France,Philippines,Mexico,Spain,Morocco,Kenya,Chile,Kazakhstan,Uzbekistan;
Final product:	Charcoal;	Warranty of core components:	1 Year;
Packaging Detail:	China high quality smokeless biomass carbonization to biochar charcoal stove in standard export wooden case or as requested;	Voltage:	380V;
Effective Volume:	15cube meter;	Power:	18.5Kw/h;
Certification:	ce,ISO,Sgs,CE / ISO;	Key Selling Points:	High Productivity;
Capacity:	1200kg/h;	Product name:	smokeless biomass biochar charcoal carbonization stove;
Video outgoing-inspection:	Provided;	Place of Origin:	Henan, China;
Marketing Type:	Ordinary Product;	Color:	Customer Required;
Core Components:	PLC,Engine,Bearing,Motor,Pressure vessel,Gear,Pump,Spray tower;	Warranty:	12 months;
Showroom Location:	Turkey,France,Philippines,Mexico,Russia,Spain,Thailand,Chile,Kazakhstan,Uzbekistan;	Package Preview:	;
Machinery Test Report:	Provided;	Host size:	D1300;

Beston(Henan)Machinery Co., Ltd. was founded in 2013. We are professional in manufacturing all kinds of waste recycling equipment. In 2018, the branch of Beston Machinery was founded in Romania. Now we have 8 overseas branches and more than 60 overseas after-sales services personnel. All the plants we supply has the certification of ISO and CE. We promise the quality of all plants we sell to every customer and welcome people from all over the world who have the intention to change the world by waste recycling to contact us.

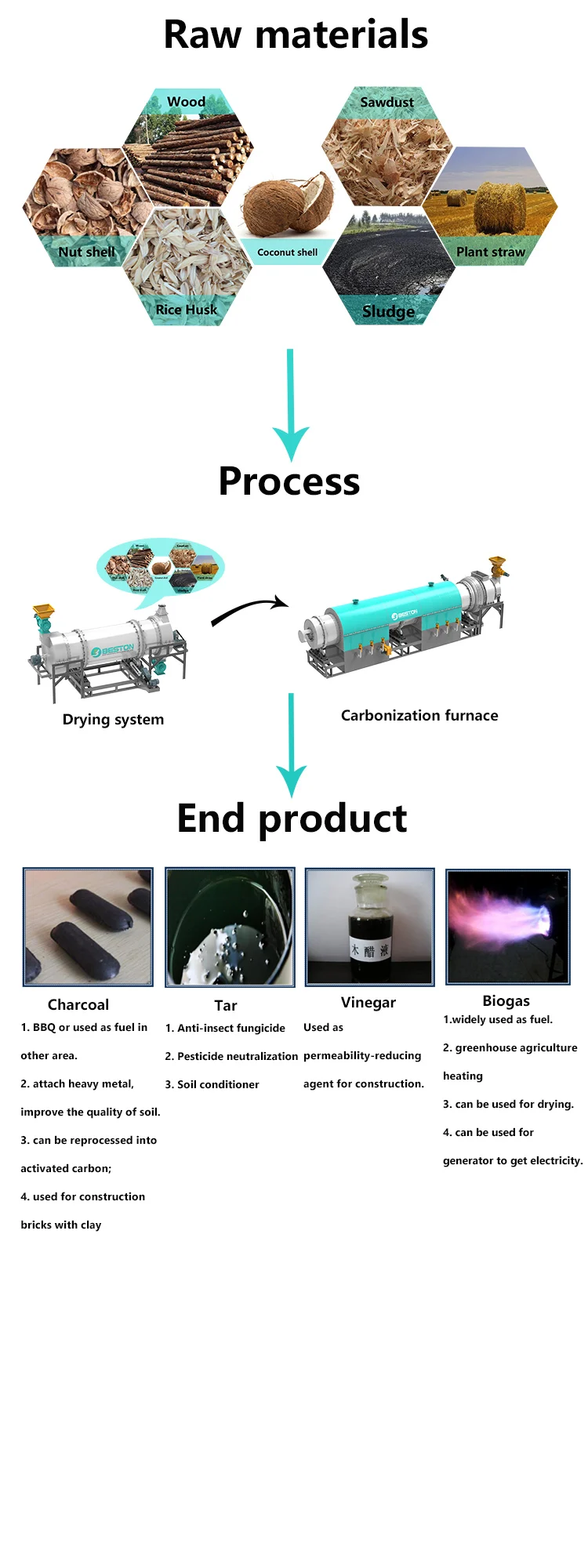

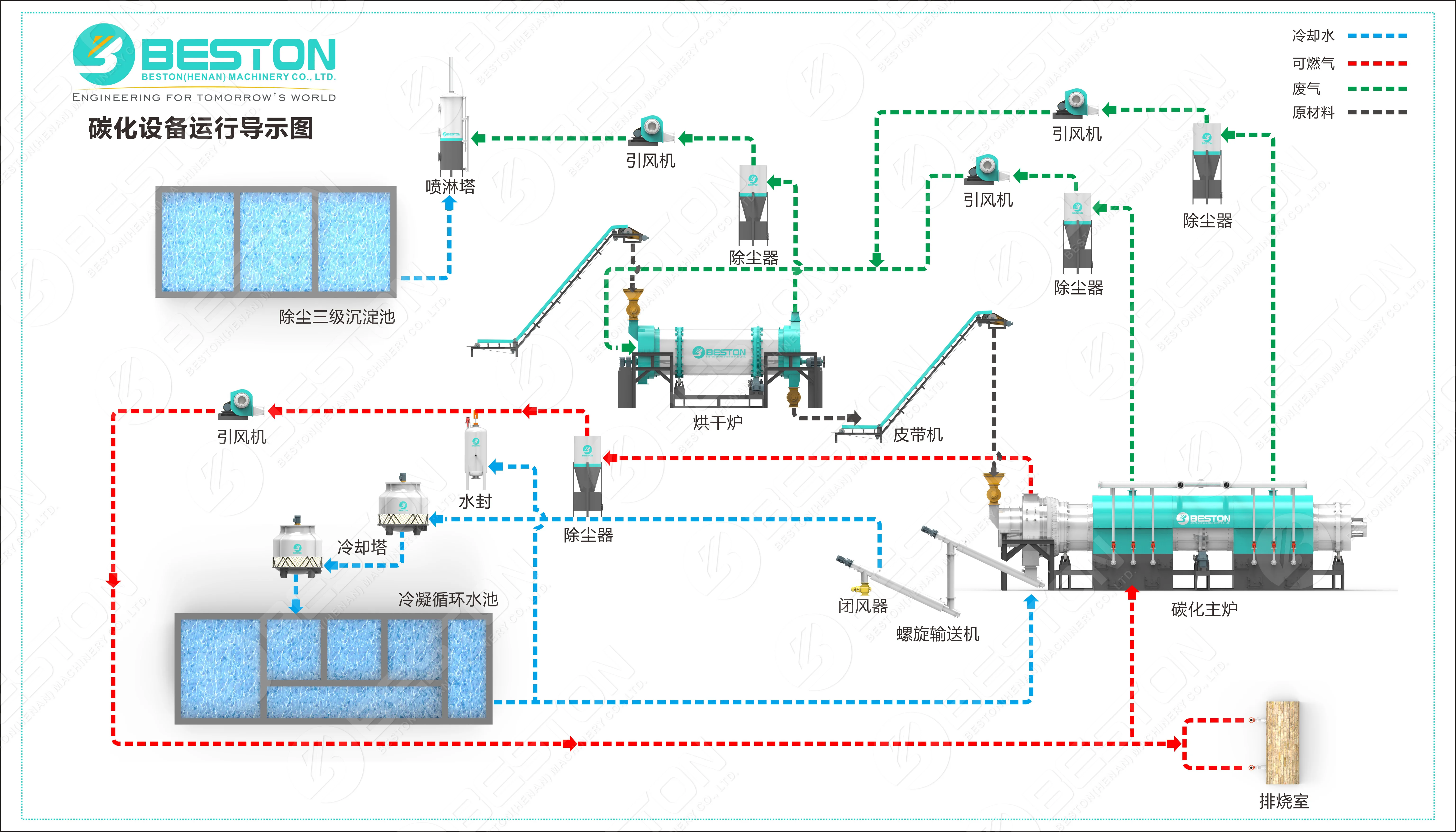

Biomass Carbonization Plant
Model	BST-05	BST-10	BST-30	BST-50
Raw Material	Sawdust,Coconut shell,Wood,Rice husk and Other biomass material/Waste Sludge
Structure	Horizontal，Dual layers
Capacity(kg/h)	500	1200	3000	5000
Rotary Speed	3-9 turn/min
Power(kw/h)	32.4	51	61.5	103.9
Host Size(WHL)	9400X1640X2100mm	13695xφ1300mm	13695×φ1968mm	13695×φ2240mm

Name:Dryer system

Brand: Beston

Original:China

The wood chips are fully in contact with the hot air and then discharged from the output air locker to the carbonization machine

Name: Dust collector
Brand: Beston
Original: China
Using advanced dust removal technology, dust removal and desulfurization.

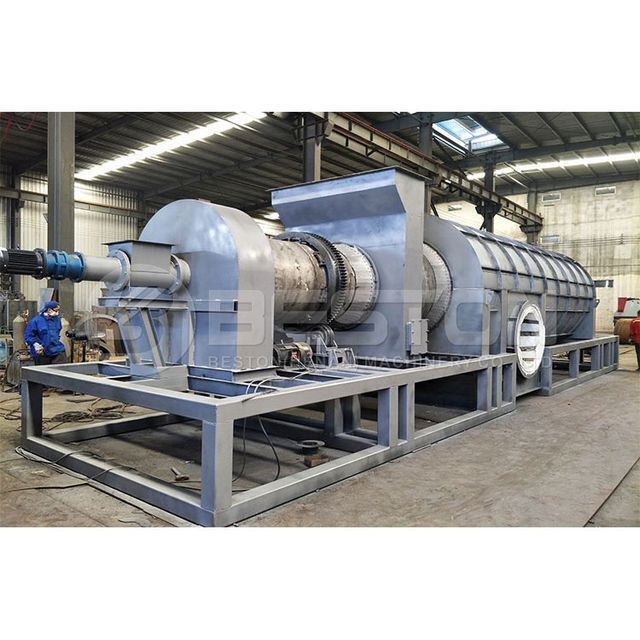

Name: Carbonization host

Brand: Beston

Original: China

The material completes the carbonization reaction in this equipment.

Φ1700×12300 mm, Main Roller Made of Q235, 245R, 310s Stainless Steel
10 years service life.

Name: Condenser system
Brand: Beston
Original: China
The gas treated in the flue gas condenser was cooled for 2 times and purified.

Name: De-dusting tower
Brand: Beston
Original: China

smoke scruber - purify the hot smoke before releasing to air meeting emission standard

We will provide the most reliable, safest mode of transportation, in order to make machine arrived at destination timely.
Installation and training-our company will send one technician for each set of machine for guiding your installation, testing the machine and training your workers.

After service:

1.Delivery time- It will be 30 days after we receive the deposit.
2.24 hours online service.
3.One year warranty from the date of receiving. The warranty equipment within warranty time, facilities failure is freely repaired or replaced by our company.
4.According to users' needs, after deliver equipment, we can send technical personnel to train operation, maintenance.
5.After the expiration, seller provide spare parts at cost price.
6.Seller provide free lifetime technical services.
7.Whether it is within the warranty period, once receiving a notification service, maintenance personnel to reach the user site in 48 hours.
8.Regular visits, listen to users' comments and suggestions on the service quality and product quality.

Q1. Where have you installed working plants?
A1:Place installed working plants:Vietnam, India, Malaysia, Turkey, nearby our factory , etc.
Q2. How many MSW carbonized we can get/day?
A2:15:1 is an estimate, not the absolute value. The composition of garbage is different each time, the ratios will be different,exactly, there is no standard value.
Q3. So what will be the output yield%?

A3:Usually it's 3:1
Q4. Can you replace your rotator reactor by the viberator reactor?
A4:After discussion with our engineers, the conclusion is our rotator could not replace by viberator reactor. But our engineer will design another plan to achieve the same effect.
Q5. what is the dedusting system?
A5:In order to meet the emission standards, our dust removal system mainly includes activated carbon adsorption, water spray, ocean ball adsorption and so on.
