1 2 Ton Small Mobile Gantry Crane Drawing, Used Portable Workshop Gantry Crane 3 5 10 Ton For Sale

Supplier: Shanxi Kyzz Industry Co., Ltd.
Region: Shanxi, China
Contact: Ms Amanda Lee
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Span:	2M-8M;	Delivery Detail:	15days after payment;
Place of Origin:	Shanxi China (Mainland);	Power Source:	3-phase A.C.;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;	Packaging Detail:	wooden case or pallet 1 2 Ton Small Gantry Crane Design Drawing, Used Workshop Gantry Crane 3 5 10 Ton China For Sale;
Certification:	CE/ISO9001/SGS;	Brand Name:	KYZZ;
Product name:	Used Workshop Gantry Crane 3 5 10 Ton China For Sale;	Crane type:	Single Beam Light Duty Gantry Crane;
Brand:	KYZZ;	Condition:	New;
Rated Loading Capacity:	1ton 2ton 3ton 5ton 7.5ton 10ton;	Color:	orange;
Supply Ability:	100 Set/Sets per Month;	After-sales Service Provided:	Overseas third-party support available;
Item:	PT3-3;	Control Method:	Wireless Control or Handle Remote Control;
Lifting mechanism:	Electronic Hoist;	Type:	adjustable height by electric;
Feature:	Gantry Crane;	Max. Lifting Height:	10m;
Port:	Tianjin;	Rated Lifting Moment:	Load Capacity;
Model Number:	PT3-3;	Max. Lifting Load:	10 ton;
Warranty:	1 Year;	Application:	Warehouse;
Crane feature:	High Efficiency;

1 2 Ton Small Gantry Crane Design Drawing, Used Workshop Gantry Crane 3 5 10 Ton China For Sale

Product Description

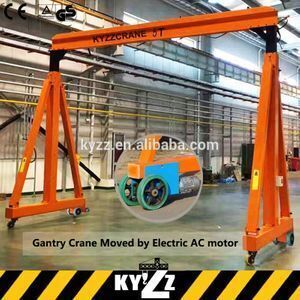

PT3 Series Type Gantry Crane Moved by Electric Motor

Mini gantry crane are designed for transporting and lifting materials.

Small lift Gantry Crane which is manufactured for the medium and small factory (company) daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.

The small electric gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 10000 kg weight, span up to 10 meters.

Especially apply to yard and workshop equipment installation, transportation.

The small gantry hoisting belt brake on bearing universal wheel can move on the ground, with electric hoist or manual hoist, chain blocks or monorail car accessory, realize the mechanization of hoisting, can reduce manpower and production costs, improve work efficiency.

Advantages of Small mobile gantry crane

Light weight ,five times the safety factor
Easy operation ,wireless controller available
move under load ,Smooth starting and stopping
Every steel tube is detachable, disassembly and assembly are easy
Easy operation Control by Pendent controller with push buttons or wireless controller ,control the gantry moved front and back , the hoist travelling left and right , lift up and down.
Portable design allows for relocation for use in more than one facility or work area.

Model	PT3-1 / PT3-2 / PT3-3
Capacity	0.5 ton	1 ton	2 ton	3 ton	5 ton	7.5 ton	10 ton
Span (m)	2-12 (as your require)
Height (m)	1-10 (as your require)
Lifting equipment	Manual / Electric wire rope or Chain hoist
Power	380V 50HZ 3P or As Required

SHANXI KYZZ INDUSTRY CO.,LTD is located in Taiyuan,Shanxi,China,which has more than 20 years experiences in the lifting machinery industry.Our products is portal mobile gantry crane,chain hoist,pallet truck,pallet lifter,winch and so on. Specifically,Our company focus on new type mobile gantry crane designing,researching & developing,own many patents,and approved the CE and other certificates.Our portal gantry crane can be adjusted the height & span,drove to walk by electric .if u need,it also can be controlled by wireless remote.We has 20 scientific technicians, standardd testing equipment. We can provide satisfied solutions and drawings according your operating environment,customized your our gantry crane.Our products had been exported to Southeast Asia,Europe,the United States, Australia, South America and many other countries, and got much satisfied feedback from our clients.

Factory display

Trade Shows

FAQ

1. Can u send me your price list ?

Sorry dear friend, as you know, if u are enduser , we can customize your gantry crane according your working environment. So pls tell me your information bellow, so i can give your quick offer .

a: Lift capacity b: Lift height c: Span length d: Power source f: Working environment.

2. Can u draw for us ?

Yes , we have good experienced technicians , we can design and draw for your own portal gantry crane according your requirements to solution your problems.

3. Operating methods for selection ?

A : Pendent controller with push buttons

B : wireless controller

We integrate all circuit in the controller to control the gantry crane move front and back , the hoist lift up and down , travel left and right .

4 . Can u provide the lifting tools series ?

Sure, we can provide any other lifting machinery you need , such as pallet stacker , truck and so on .

5. How to install the mobile gantry crane ?

We can send u the install operate manual or video , it’s easy to install the crane, but if u need our engineer can be your side.

6. What is your lead time ?

The lead time is 15 days for one set .
