1 2 3 5 7.5 10 15 20 Ton Single Double Girder Overhead Crane

Supplier: Shanxi Kyzz Industry Co., Ltd.
Region: Shanxi, China
Contact: Ms Amanda Lee
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Span:	3-16m;	Application:	Warehouse;
Power Source:	3Phase;	Control method:	Remote Controller;
Place of Origin:	Shanxi China (Mainland);	Feature:	Bridge Crane;
Lifting speed:	3.5-8m/min;	Main electrical parts:	Famous Brand;
Port:	Tianjin;	Color:	Customer Request;
Brand Name:	KYZZCRANE;	Certification:	CE GOST ISO SGS;
Supply Ability:	100 Set/Sets per Month;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Crane type:	Single Girder Overhead Bridge Automatic Crane;	Rated Lifting Moment:	Lifting Weight;
Max. Lifting Height:	3m~30m;	Packaging Detail:	pallet 1 2 3 5 7.5 10 15 20 Ton Single Double Girder Overhead Crane Price For Sale;
Delivery Detail:	30days;	Product Name:	1 2 3 5 7.5 10 Ton Single Double Girder Overhead Crane Price For Sale;
Crane feature:	Single Girder Oveherd Crane;	Warranty:	12 Months;
Lifting mechanism:	Eliectric Hoist;	Model Number:	LD;
Max. Lifting Load:	1-32 ton;	Type:	Hoist Single Girder Bridge Crane;
Condition:	New;	After-sales Service Provided:	Overseas third-party support available;
Rated Loading Capacity:	1-32t;

1 2 3 5 7.5 10 15 20 Ton Single Double Girder Overhead Crane Price For Sale

Product Description

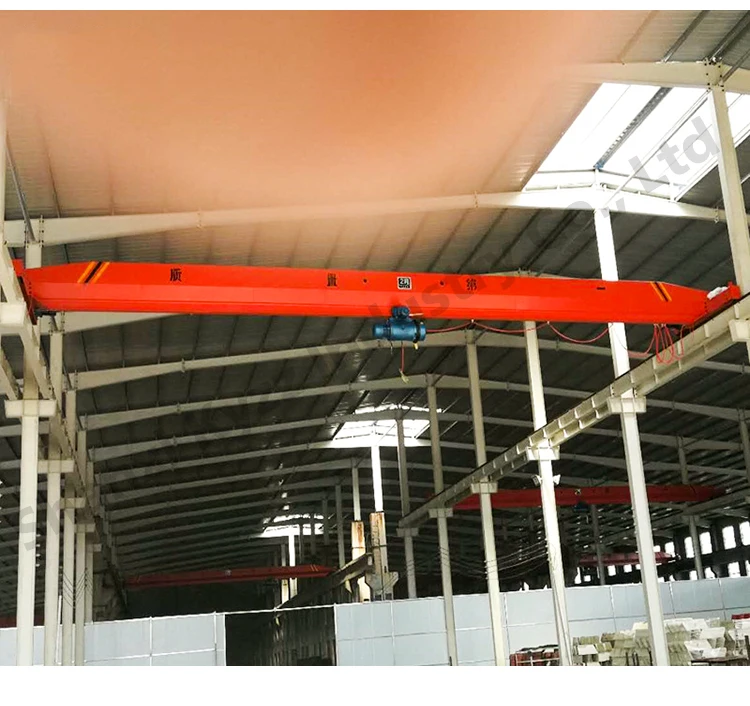

LD Single girder bridge crane is widely used in machinery manufacturing shop, petroleum, petrochemical, metallurgical workshop, ports, paper making, building materials, electronics and other industries workshops, warehouses, yard, etc. With compact dimension, low headroom, light weight, small wheel pressure, etc.

· Crane traveling limit switch.

· Weight overload protection device.

· Lifting height limit device.

· Voltage lower protection function.

· Phase sequence protection function.

· Emergency stop function.

· Rain cover for outside hoist, driving units, electric cubicle.

· Warning indicator: flashing lights and warning sounds.

· Wireless infra-detector for anti-collusion.

Capacity(t)	1t---5t	10t	16t---25t	32t---50t	75t---100t
Span(m)	6.5m---35.5m
Lifting height(m)	3m---30m
Control mode	Pendant control,wireless remote control,cabin control
Lifting speed(m/min)	2.8 ,8, 8/0.8	2.3 ,7 ,7/0.7	3.5 , 3.5/0.35	3 ,3/0.3	1.8 ,1.8/0.2
Travelling speed(m/min)	20,30,45(Inverter)
Service class(work grade)	a) M2,M3: used in places of mild service, such as workshop and warehouse. b) M4: used in places of Medium service such as assembly and depot. c) M5: used in heavy place and long time working factory
Supply power(three phase power)	380V 50HZ 3Phase (according to user require)
Hoist type	Wire rope or chain hoist ,single or double speed
Working ambient temperature	-20 °C~ <55°C.
Note	It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions.
