Automatic container crane 500 tons Double girder wheeled gantry crane 50 tons

  • Supplier: Henan Yuntian Crane Co., Ltd.
  • Region: Henan, China
  • Contact: Mr Chris Cai
  • Price: $60000.00 / 1 - 1 sets
    $59800.00 / 2 - 2 sets
    $59000.00 / >=3 sets
  • Min. Order: 1 set
Click here to contact
Product details
payment terms:L/C, Western Union, T/Tproduct name:500 tons double beam wheeled gantry crane 50 tons
After-sales service provided:Engineers availableMaterial:Q235B
span:18-35mPackaging details:Packaging standards for RTG container gantry cranes equipped with ZPMC spreaders: 1. Electrical components are packed in high-quality plywood boxes to reduce transportation deformation. 2. The main beam, end beam, trolley/winch are packed with plastic woven cloth. Can reduce wear and tear during transportation. 3. Usually via container if the size fits the container ship.
Certification:CE BV ISO TUV GOSTCore component warranty:1.5 years
feature:Gantry craneMarketing type:New products for 2022
Showroom location:Canada, Turkey, United States, Vietnam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Russia, Thailand, South Korea, Sri Lanka, Bangladesh, Kazakhstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australiamaximum. Lifting height:Others,13m
port:Port of Tianjin, China or Port of Qingdao, ChinaJob level:A6-A8
Applicable industries:Manufacturing plants, construction engineering, energy and mining, othercontrol method:remote control
Place of origin:Henan, ChinaMain electrical parts:Siemens or Schneider
Mechanical test report:ifRated lifting moment:50KN~3000KN
Health status:newRated load capacity:Others, 40.5 tons
Video outbound inspection:ifIndustrial voltage:according to your requirements
brand:SGYWeight (kg):50,000kg
type:Container terminal craneCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
application:Port, outdoor, cargo yard, etc.Warranty:1 year
Product Description



Automatic container crane 500 tons Double girder wheeled gantry crane 50 tons

Product Description

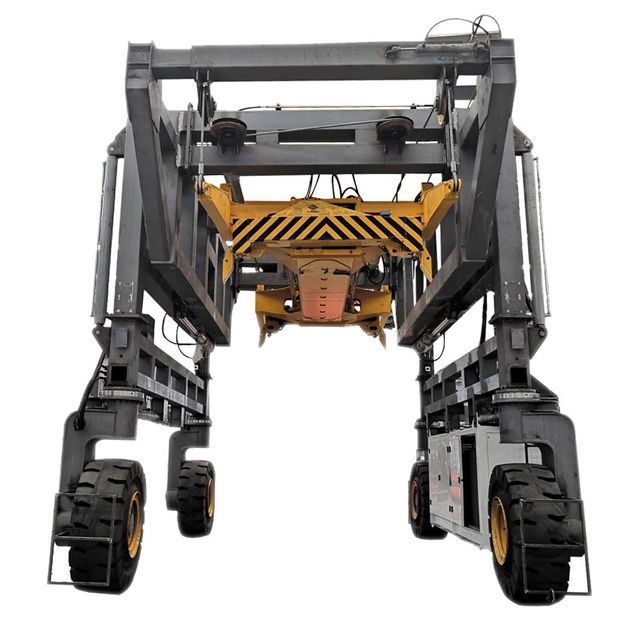

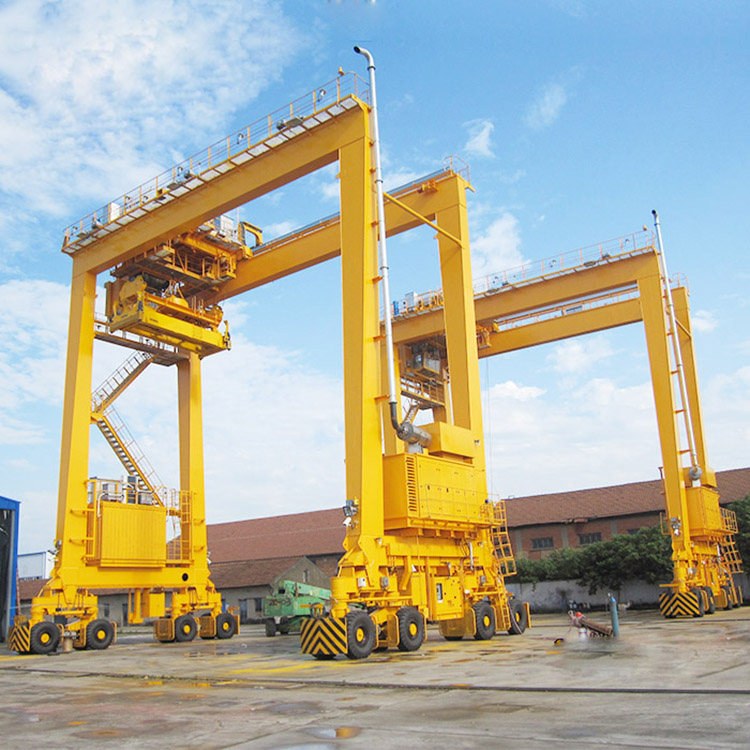

RTG tire crane consists of a mast, lifting trolley, crane operating mechanism, cab and electrical control system. The gantry is a box-shaped structure, the main beam is an inclined rail double main beam, and the outriggers are U-shaped.

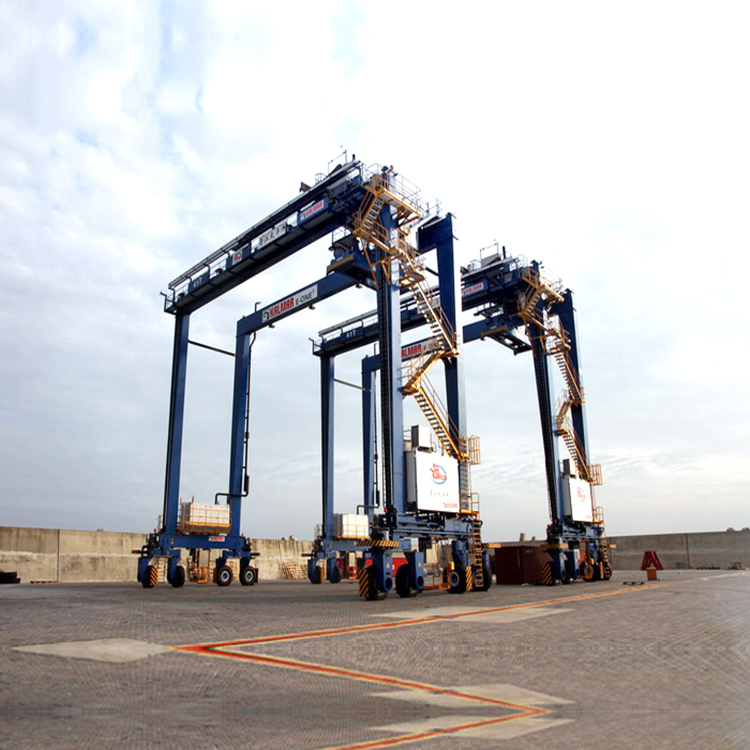

Hot-selling rubber tire gantry cranes and RTG tire cranes are suitable for large-span, frequent loading and unloading railway freight yards, ports, open-air warehouses, container transfer stations, etc. The machine uses a U-shaped gantry with large leg clearance (nearly 7 meters). Suitable for heavy and large cargo and container loading and unloading operations, frequent high-level operations, A5 ~ A8. The weight is 5 tons to 500 tons, the span is 18 meters to 35 meters, the main beam can be designed with or without cantilever, and the ends of the two main beams are connected with the end beam to meet high-level requirements.

Contact us for more information

feature:

1. Reasonable structure and excellent performance.
2. Start and stop smoothly.
3. Safe and reliable operation, long life.
4. Low noise, spacious cab and good visibility.
5. High-quality automatic welding and non-destructive testing
6. Crane drive: IP54 or IP44, Class F insulation
7. Especially suitable for container lifting.
8.Design according to your requirements

Please click here to communicate for details

Technical Parameters:

Please contact me for customized parameters

Lifting capacity (t)

10

16

20/10

32/10

36/16

50/10

Span (meter)

18-35

Lifting height (meters)

10-13 days

Job level

A5-A8

speed
(m/min)

lifting

8.5

7.9

7.2/10.4

7.5/10.4

7.8/10.5

6/10.4

trolley

43.8

44.5

44.5

41.9

41.9

38.13

crane

40

38

38

40

40

38

engine

lifting

YZR180L-6/17

YZR225M-8/26

YZR225M-8/26
YZR200L-6/26

YZR280S-10/42
YZR200L-6/26

YZR280M-10/55
YZR225M-6/34

YZR280M-10/55
YZR200L-6/26

trolley

YZR132M1-
6/2.5*2

YZR132M2-
6/4*2

YZR132M2-
6/4*2

YZR132M1-
6/4*2

YZR132M1-
6/6.3*2

YZR132M1-
6/6.3*2

crane

YZR160L-6/13*2

YZR160L-6/13*2
YZR160M1-
6/6.3*4

YZR160L-6/13*2
YZR160M2-
6/8.5*4

YZR160M2-
6/8.5*4

YZR160L-6/13*4
YZR160M2-
6/8.5*4

YZR160L-6/13*4

weight
(Ton)

trolley

9

9.5

12

16

18

twenty four

all

63.2-100

78-106

79-120

95-108

106-155

195

Wheel pressure (KN)

225-295

255-373

208-289

324-334

314-363

Chapter 452

Rail

43kg/m

50kg/meter

energy source

Three-phase AC 380V 50HZ (according to your needs)

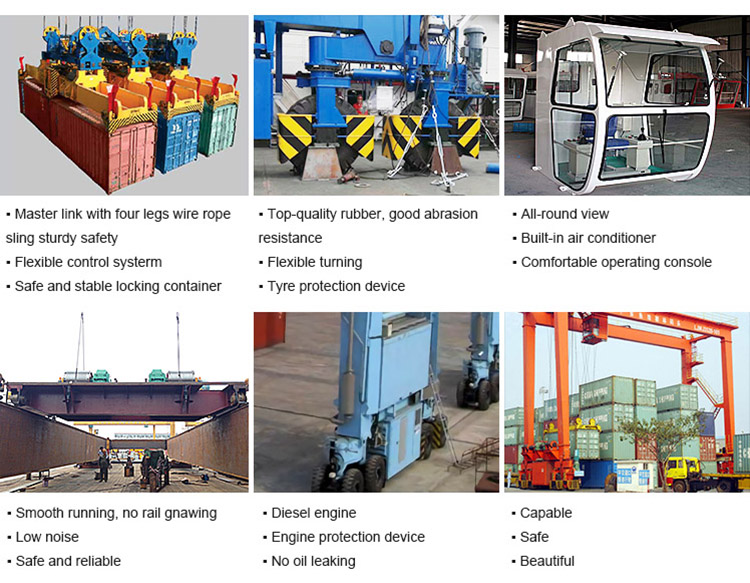

Product display:




 Click here to fill in your inquiry in the text box to get the latest quote.

main products


Yuntian GroupThe products meet the requirements of general bridge cranes, bridge cranes, EOT cranes, gantry cranes, general gantry cranes, rubber tires and rails in factories, workshops, ports, mines, garbage disposal, cargo dispersion, petrochemical, aerospace, military and other industries. Container gantry crane, four-link gantry crane, shore container crane, crane, hook crane, mining grab crane, gantry crane, ship loader, grab ship unloader, stacker and reclaimer, excavator Technical requirements for various types of hydraulic cranes such as mud ships and mobile platforms.
