TrusTMIG Portable SuperTIG200Di Pulse AC DC TIG 200A Welder for Aluminum Welding
-
Supplier: Beijing Aland Welding Co., Ltd. -
Region: Beijing, China -
Contact: Mr Longxiang Yang -
Price: $299.00 /set -
Min. Order: 1 set
Product details
| Packaging Detail: | By Cartons; | Voltage: | 1X220/230/240V; |
| Pilot Arc Current: | 10A; | Video outgoing-inspection: | Not Available; |
| Output Polarity: | AC/DC TIG; | After-sales Service Provided: | Online support,Free spare parts,Video technical support; |
| Port: | Shanghai / Tianjin / Qingdao port; | 2T/4T, Foot Pedal Support: | Yes; |
| Usage: | TIG MMA Welding; | Place of Origin: | Beijing, China; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal; | Condition: | New; |
| Rated Duty Cycle @40°C (TIG): | 35%; | Motor Type: | DC MOTOR; |
| Marketing Type: | Hot Product 2019; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Construction works ,Energy & Mining; |
| Machinery Test Report: | Provided; | Pulse TIG: | Yes; |
| Max. Load Power Capacity: | 7.4 kVA; | Rated Duty Cycle: | 35%@200A; |
| Rated Output Current (TIG): | 200 A; | After Warranty Service: | Video technical support,Online support; |
| Current range: | 5-200A; | Color: | As request; |
| Arc Current: | 5-200A; | Certification: | CE CCC Certificate; |
| Rated Output Voltage (TIG): | 230 V; | Key Selling Points: | Multifunctional; |
| Welding Current/Voltage Range: | 5-200A; | Dimensions: | 435x185x325mm; |
| Stainess Steel Welding: | Yes; | Showroom Location: | Canada,United Kingdom,United States,Italy,None; |
| Local Service Location: | Canada,United Kingdom,United States,Italy; | Warranty: | 1 Year; |
| Brand Name: | ALAND; | Weight (KG): | 18 KG; |
| Package Preview: | ; | Pulse Frequency: | 50/60Hz; |
| Function: | Pulse AC DC TIG / MMA; | Rated Input Voltage: | 220 V; |
| Product Name: | Portable Pulse AC DC TIG 200A Welder for Aluminum Welding; | Wave selection: | Yes; |
| Supply Ability: | 1000 Sets per Month; | Material / Metal Processed: | Carbon steel,Stainless Steel,Aluminium alloy; |
| Portable: | Yes; | Aluminum Welding: | Yes; |

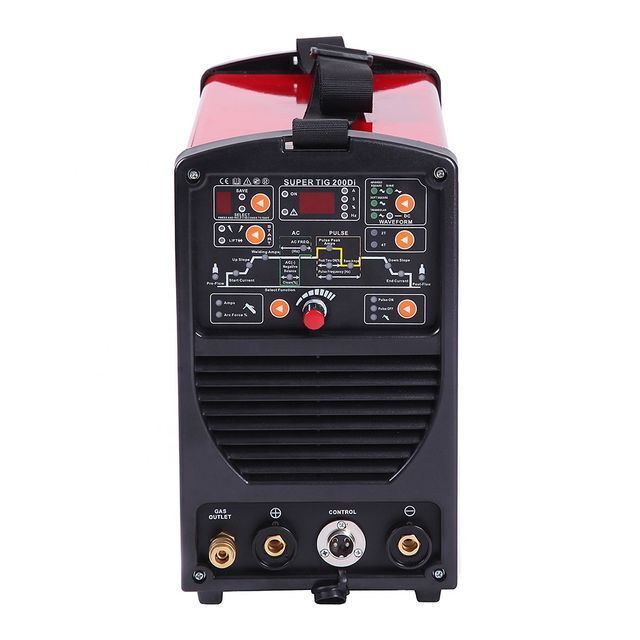

TrusTMIGTM Portable SuperTIG200Di Pulse AC DC TIG 200A Welder for Aluminum Welding
Product Description
What can you expect from our SuperTIG200Di?
Functions: AC TIG, DC TIG, PULSE TIG, HF TIG, MMA (Stick Welding)Suitable Material: Aluminum Alloy, Stainless Steel, Carbon Steel
Features:
1. IGBT Digital Control high frequency inverter
2. Portable
3. All parameters preseted by one knob
4. MMA: Hot arc start, arc force, anti-stick.
TIG: Pulse AC DC TIG, HF/Lift arc start
5. Pulse TIG and 4 different kinds of wave control for AC TIG
6. 2T/4T function
7. Microprocessor inside, 10 channels memory
8. Quick gas connector, easy operation
9. Over heating and Current protection
10. Foot Pedal and finger control Current function.
Optional:
Dual Voltage: 110V/220V
2. Portable
3. All parameters preseted by one knob
4. MMA: Hot arc start, arc force, anti-stick.
TIG: Pulse AC DC TIG, HF/Lift arc start
5. Pulse TIG and 4 different kinds of wave control for AC TIG
6. 2T/4T function
7. Microprocessor inside, 10 channels memory
8. Quick gas connector, easy operation
9. Over heating and Current protection
10. Foot Pedal and finger control Current function.
Optional:
Dual Voltage: 110V/220V
Display: LCD
Main Parameters:
Model | SuperTIG200Di |
Input Voltage | 1x220V, 50/60Hz |
Input Power Capacity | 7.4KVA |
No Load Voltage | 65V |
Current Range | TIG: 5-200A, MMA: 20-160A |
Up/down slope time | 0-10S |
Gas pre/post flow time | 0-10S |
Pulse Frequency | 0.5-250Hz |
Pulse Width | 0.1-0.9 |
AC frequency | 20-200Hz |
AC balance | 30%-70% |
Rate Duty Cycle | 35% |
Machine Dimensions (LWH) | 435x185x325mm |
Package Dimensions (LWH) | 520*340*380mm |
Weight (kg) | 15kgs |
Package Weight | 22.5kgs |
Related Products:
DigiTIG250ACDCPULS (PULSE AC DC TIG)
MicroTIG185DA (AC DC TIG MMA)
PulseMIG250DC-1 (Double pulse MIG)
Production Workshop
FAQ.
Q1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens).
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
