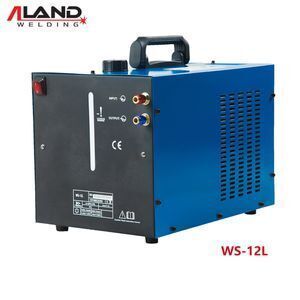

12L Water Cooler for welding machine

Supplier: Beijing Aland Welding Co., Ltd.
Region: Beijing, China
Contact: Mr Longxiang Yang
Price: $150.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	WS-12L Water Cooler for welding machine;	Warranty:	1 Year;
Motor Type:	DC MOTOR;	Place of Origin:	Beijing China (Mainland);
model:	WS-12L;	After-sales Service Provided:	Free spare parts,Video technical support;
Type:	TIG Welders;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Supply Ability:	10000 Set/Sets per Quarter;	Certification:	CE Certification;
water capacity:	12L;	Packaging Detail:	By Cartons, neutral or as required;
Port:	Shanghai,Tianjin ,Shenzhen;	Condition:	New;
Brand Name:	ALAND;	Dimensions:	590400410 mm;
Color:	as required for official order;	Usage:	Cooling for Welding/Cutting;
weight:	18kg;	Power(W):	370W;
Voltage:	230V and 380V;	Pulse Frequency:	50/60Hz;

Product Description

12L Welding Water Cooler for MIG / TIG /SPOT welding/PLASMA Cutting
Model: WS-12L

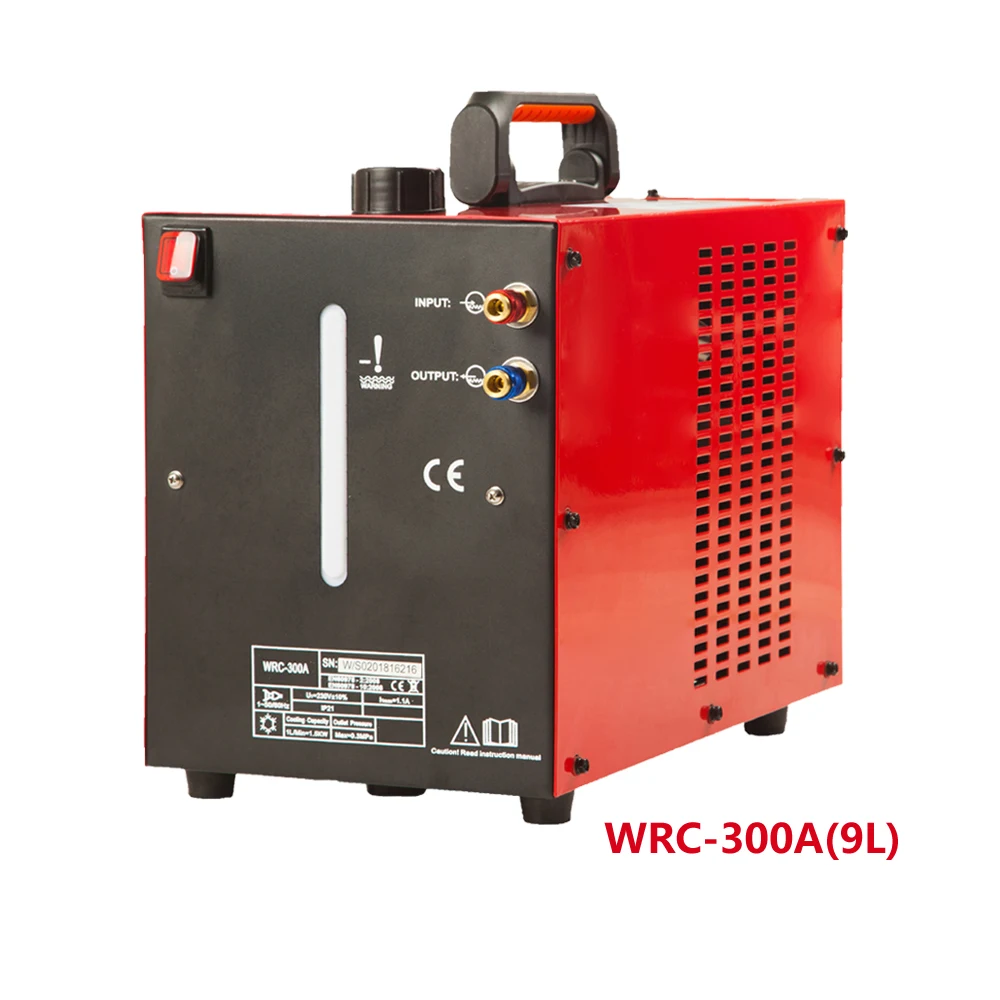

Model	WRC-300A(9L)	WS-12L	WS-200A(16L)	WS-25L
Voltage	1x230V(380V), 50/60Hz	1x230V(380V), 50/60Hz	1x230V(380V), 50/60Hz	1x230V(380V), 50/60Hz
Phase	Single Phase	Single Phase	Single Phase	Single Phase
Cooling power	1.5KW	1.7W	2.6KW	2.8KW
Pump power	370W	370W	370W	370W
Output flow	7-9L/min	7-9L/min	7-9L/min	7-9L/min
Max. pressure/Head	0.30MPa/(35m)	0.30MPa/(35m)	0.30MPa/(35m)	0.30MPa/(35m)
Water capacity	9L	12L	16L	25L
Operation temperature	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC
Gross Weight	17.5kg	18kg	22.3kg	22kg
Packing Size(LWH)	550340420mm	*590400410 (mm)*	545355390mm	605460500mm

● Light weight, compact design and easy to use.
● NSK bearing is applied on pump.
● The material of shaft seal is Polythene, and its service life is over 10 years.
● The shaft is made of stainless steel.
● The material of refrigerator is copper.
● The impeller is made of copper alloy.
● High performance on water anti-leakage;
● Good performance of Prevent scale in vortex water pump;
● Water level is visible outside through window.
● The water filling port is inclined forward to facilitate water injection;
● The cooling capacity increased by 30% compared to the Equivalent product.

Detailed Images
