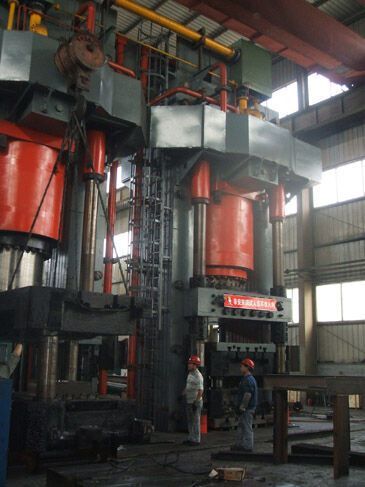

300mn Durable Hot Die Forging Hydraulic Press with High Quality

Product details

Close die forging press
630t-50000t
Oil hydraulic
Working pressure 25MPa, 31.5MPa, 63MPa, 100MPa
Prestressing frame
Rexroth pump
Special designed cartridge valves
Siemens PLC

ITEM UNIT MDYJ MDYJ MDYJ MDYJ MDYJ MDYJ MDYJ
    -630 -800 -1250 -2000 -3150 -5000 -10000
CAPACITY KN 6300 8000 12500 20000 31500 50000 100000
WORKING  OIL  PRESSURE MPa 25 25 25 25 25 25 75
CAPACITY  OF  RETURN KN 500 800 1000 1250 1500 2000 2000
CAPACITY  OF  PEAK KN 500 1000 1500 1500 2000 2500 2500
DAYLIGHT mm 1200 1200 1200 1200 1500 1500 1500
STROKE mm 600 600 600 600 800 1200 800
SPEED  AT  APPROACH mm/s 200 200 250 250 250 300 100
SPEED  AT  WORK(ADJUSTABLE) mm/s 150 150 100 100 50 3-15 3-15
RETURN  SPEED mm/s 200 200 250 250 250 300 100
DIMENSION  OF  SHIFTING  TABLE(L-R) mm 1000 1400 1000 1000 2000 2500 2500
DIMENSION  OF  SHIFTING  TABLE(F-A) mm 1000 800 1250 1250 1500 2000 1500
