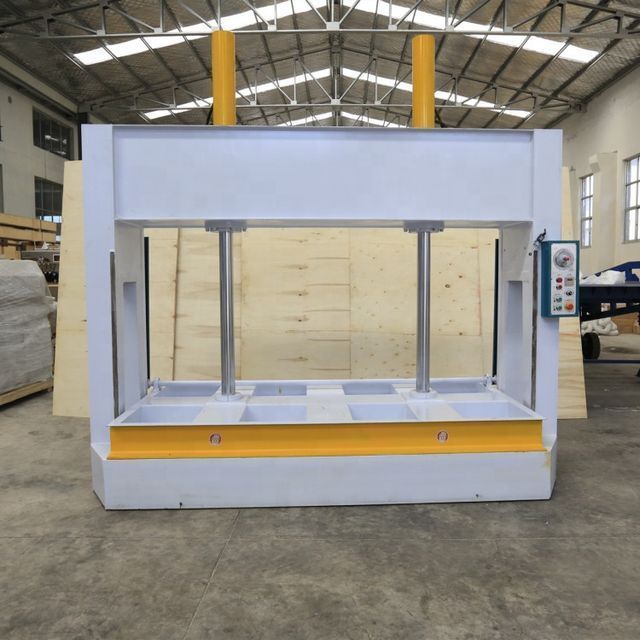

50ton woodworking hydraulic cold press machine for door making
- 3800.00 1 - 4 sets
- 3750.00 >=5 sets
| Color: | Customer Requirements; | Working methods: | Automation; |
| Function: | Compressed Wood Pallet Machine; | Woodworking Machine: | High Frequency Cold Press Machine; |
| Voltage: | on option; | Packaging Detail: | Plywood Case; |
| Brand Name: | zhongding; | Package Preview: | ; |
| Max.Pressure(T): | 50 T; | Usage: | Pressing Wood; |
| Weight (KG): | 3500 KG; | Marketing Type: | New Product 2021; |
| Working Table Size(mm): | 1300×2500; | Warranty: | 1 Year; |
| Applicable Industries: | Manufacturing Plant; | Key Selling Points: | Long Service Life; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Type: | Cold PRESS; |
| Working Principle: | High Frequency Dielectric Heating; | Supply Ability: | 100 Sets per Month; |
| Machinery Test Report: | Provided; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Model: | MJ50T; | Dimension(L*W*H): | 2960*1250*2870mm; |
| Showroom Location: | Egypt,Italy,Peru,Russia,South Korea,Romania,Nigeria,Uzbekistan; | Product name: | Haydraulic Cold Press Machine; |
| Condition: | New; | Port: | Qingdao; |
| Key words: | Hot Press Woodworking Machine; | Place of Origin: | Shandong, China; |
| Pressure: | 50ton; | Video outgoing-inspection: | Provided; |
| Oil Cylinder: | 2pcs; | Warranty of core components: | 2 years; |
Woodworking hydraulic cold press roller press machine for flush doors
The machine is set with a pressure maintaining circuit and short-oil protector, which makes the machine stop working to protect products when it is short of oil and avoid engine burnout caused by over pressing.
It is widely used by manufacturers who produce doors, furniture, sound boxes, woodworking, upholstery, advertising boards, plastics, veneers, plywood, shaving boards, laminated boards and any other woodworking casting dies.
There are six rollers on worktable, which are used to feed in/out the products and the press machine works under hydraulic system, working fast and steadily, which definitely improves your benefits.
Technical specifications:
We would like to make kinds cold press according to your demand.
|
Max. pressure |
80 T |
50 T |
50 T |
|
Dimension of the platen |
1250*2500 mm |
3050*1250 mm |
1250*2500 mm |
|
Working speed |
180 mm/min |
180 mm/min |
180 mm/min |
|
Total power |
5.5 kw |
5.5 kw |
5.5 kw |
|
Overall dimension |
2860*1300*3400 mm |
3500*1800*1600 mm |
2860*1300*2350 mm |
|
Net weight |
3300 kg |
2900 kg |
2650 kg |
|
Stroke |
1000 mm |
1300 mm |
1000 mm |

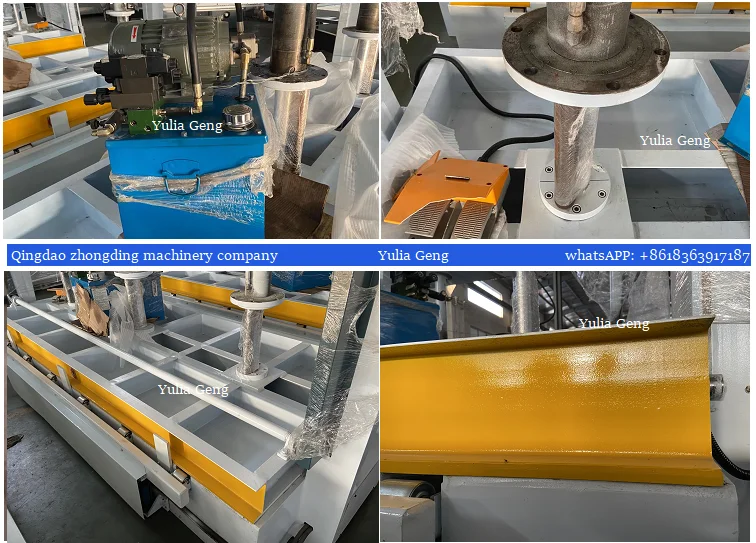

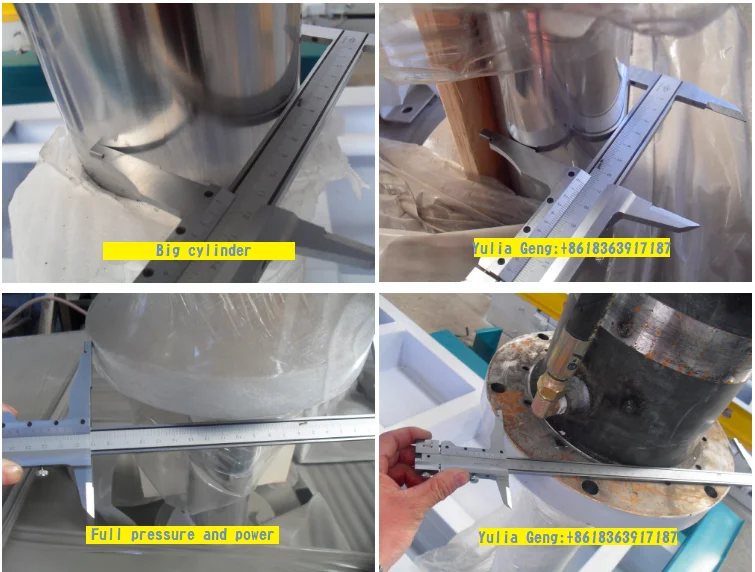

Machine details:

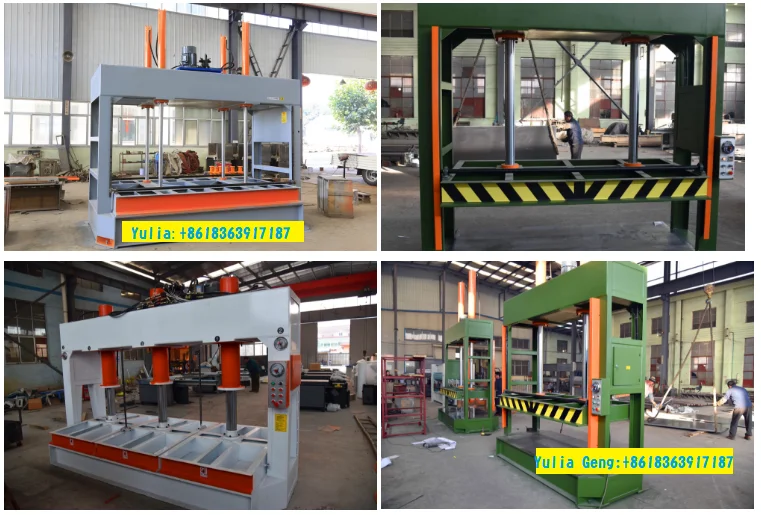

Cold press Machine pictures:

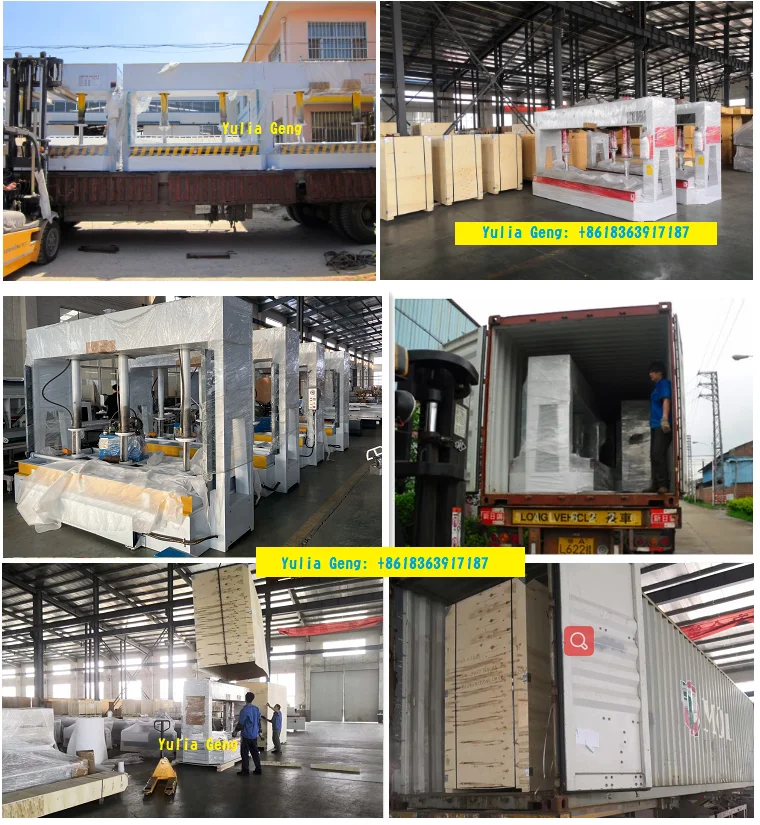

Machine delivery:
