Heavy Duty Wood Planing Machine 1300mm Width Wood Thicknesser Planer for Solid Wood details
Place of Origin:Shandong China;Local Service Location:Viet Nam,Malaysia,Uzbekistan;
Type:Thicknesser;Max planing width:1300mm;
Application:woodworking planing;MOQ:1 SET;
Brand Name:Zhongding;Dimension(L*W*H):1205*1670*1470mm;
Warranty:1 year,1 YEAR;Max.Planing Width(mm):1300mm;
Showroom Location:Canada,United States,Philippines,South Korea,Romania,Uzbekistan;Port:Qingdao;
Overall dimension:1205*1670*1470mm;Video outgoing-inspection:Provided;
Type of Cutter Head:Spiral;Package Preview:;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Farms,Retail,Construction works ;Warranty of core components:1 Year;
Payment:T/T;Marketing Type:Hot Product 2019;
Condition:New;After Warranty Service:Video technical support,Online support;
Key Selling Points:Easy to Operate;Weight (KG):1650;
Payment Terms:L/C,Western Union,T/T;Certification:CE;
Sliding Table Equipped:Yes;Product name:1300mm Wood Thicknesser Planer for Solid Wood;
Voltage:380v, 220v, or customized;Core Components:Motor;
Number of Blade:3;Packaging Detail:Plywood case;
Spindle speed:4500-4600r/min;Max.Planing Depth(mm):8;
Spindle Motor power:15kw;Machinery Test Report:Provided;
Supply Ability:10 Set/Sets per Week;Max planing thickness:8-200mm;

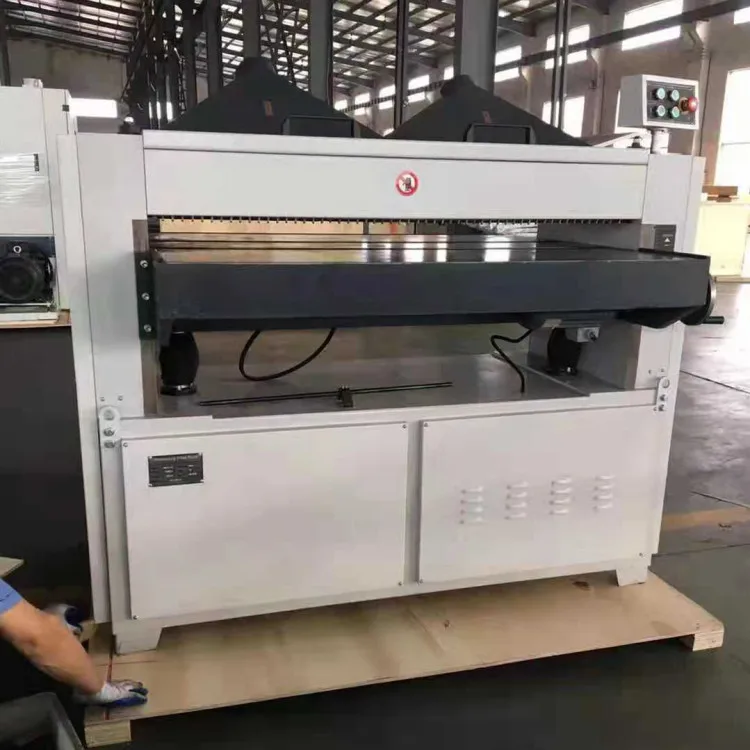

Heavy Duty Wood Planing Machine 1300mm Width Wood Thicknesser Planer for Solid Wood

Specifications



1. Body with heavy duty steel
2. High speed edge feeding system
3.Segmented edge feeding sysem


+
Model MB1013E
Max. planing width 1300mm
Planing thickness 8-200mm
Min. planing length >=300mm
Max. planing amount <=4mm
Spindle speed 4500-4600r/min
Spindle Motor power 15kw
Feeding motor power 3kw
Lifting motor power 0.75kw
Spindle cutting diameter φ125mm
Automatic Feeding speed 8;12m/min
Overall dimensions 1205*1670*1470mm



 Pictures









 Advantages:



1, the bed body structure, not easy to deform, to ensure long-term stability

2, the three rollers of the workbench are equipped with simultaneous fine adjustment devices

3, the feeding end double feeding roller, the feeding is more reliable and smooth

4, the four-column lifting of the workbench, the lifting is more stable, ensuring the accuracy of wood planing

5, the new feeding roller adjustment device, the adjustment is more convenient

6, frequency control can be based on the thickness of the wood, soft and hard set feed speed

7, can set the working lifting size according to the thickness of the wood, to ensure the accurate thickness of the wood planing

8, according to user needs can choose ordinary planer shaft or spiral planer shaft
