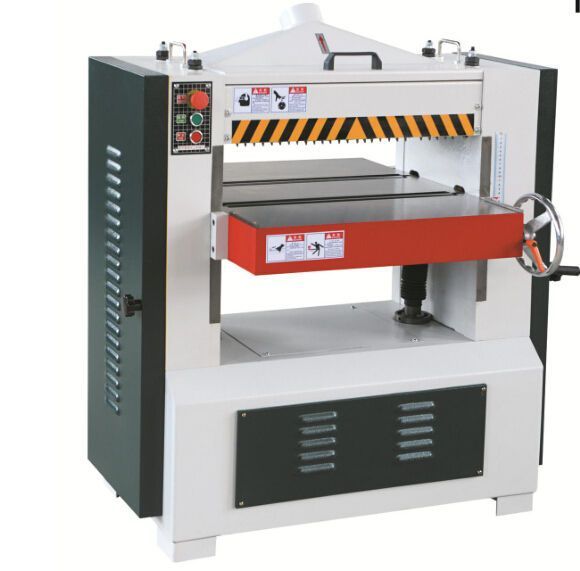

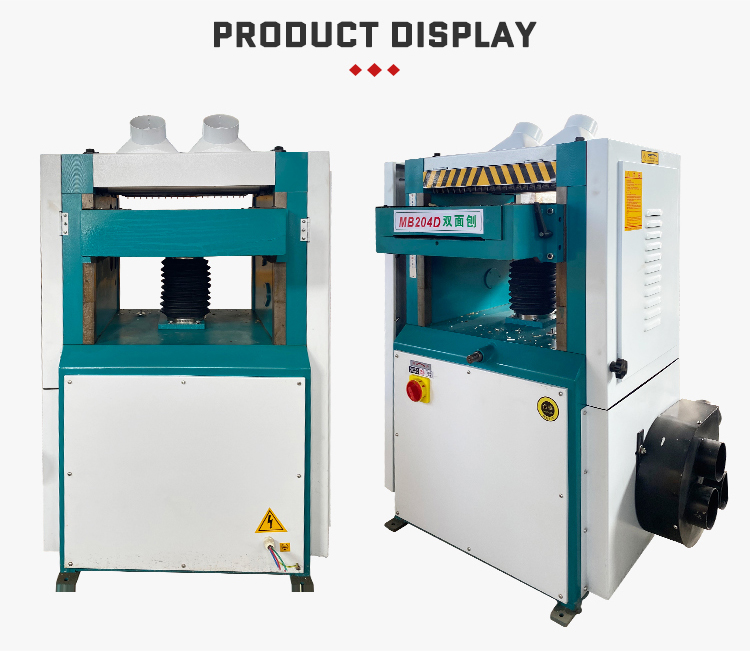

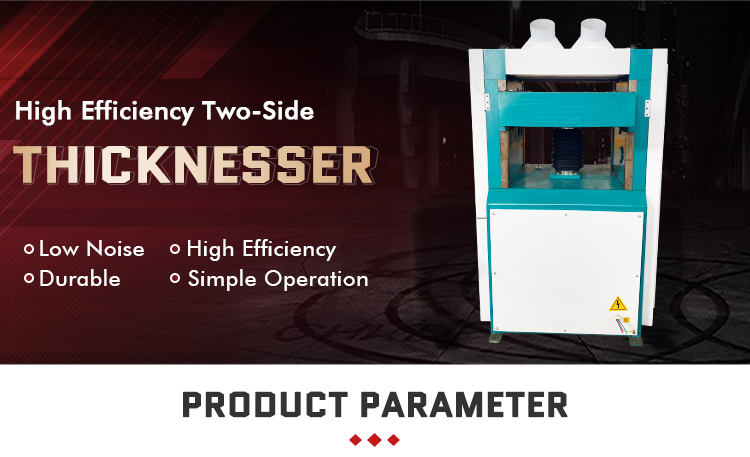

Double-sided planer/woodworking planer
- 500.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Jeter | Advantage: | high efficiency |
| product name: | Planer | Core component warranty: | 1 year |
| Power (kW): | 7.5 | Maximum planing width(mm): | 600 |
| Core components: | engine | Video outbound inspection: | if |
| Maximum working thickness: | 200mm | Maximum working width: | 400mm |
| Health status: | new | payment terms: | Western Union, T/T |
| Spindle speed: | 7800 rpm | Origin: | Shandong Province, China |
| Main selling points: | competitive price | Type of machine: | Thickness gauge |
| Model: | MB204D | type: | double side planer |
| Mechanical test report: | if | Weight (kg): | 600 kg |
| Motor Power: | 5.5/7.5 kW/380V | Function: | Planed wood, bamboo, processed furniture, etc. |
| Sliding table equipment: | No | Applicable industries: | Building materials store, machinery repair shop, home use |
| Voltage: | 380 volts | Blade type: | straight |
| Marketing Type: | 2020 New Products | Packaging Details: | Export wooden box packaging |
| Feeding speed: | 7;8m/min | Maximum planing depth (mm): | 120 mm |
| Warranty: | 1 year |
| Model | MB204D |
| maximum. Planing width | 400 mm |
| maximum. planing thickness | 200mm |
| minute. planing thickness | 200mm |
| Planing length range | ≥260mm |
| Feeding speed | 7;9m/min |
| maximum. Number of planers | 4 mm |
| maximum. Bottom planer quantity | 2mm |
| Spindle speed | 7800 rpm |
| Blade speed limit | 47 m/s |
|
minute. Blade clamping width |
≥18 mm |
| Each turn of the handwheel reduces workload" | 0.67mm |
|
Sangshen fan flow |
40m3/minute |
|
vacuum diameter |
∅100 |
|
Motor Power |
5.5/7.5 kW/380V |
| over size | 880*800*1200mm |
