Horizontal Band Sawing Machine GZ4243 Miter metal cutting Band Saw Machine for sale

Supplier: Shandong Yangtuo CNC Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr joey ZHAO
Price: $7950.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	QINGDAO;	Video outgoing-inspection:	Provided;
SAW Blade size:	5115431.3mm;	Weight (KG):	2100;
Color:	Customer`s Requirement;	Type:	Horizontal;
Package Preview:	;	Hydraulic Motor Power (kW):	1.5;
Certification:	CE.ISO;	Condition:	New;
Core Components:	Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC;	Warranty:	1 Year;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Machine Type:	Band Saw Machine;
Showroom Location:	Russia,Morocco,Chile;	Supply Ability:	2000 Sets per Year;
Packaging Detail:	Frame wooden cases,;	Brand Name:	yangtuo;
Key Words:	Horizontal Band Sawing Machine;	Machinery Test Report:	Provided;
Application:	Industrial Metal Cutting;	Cutting Capacity (mm):	430430430;
Warranty of core components:	1 Year;	Key Selling Points:	Competitive Price;
Marketing Type:	New Product 2021;	Motor Power (kw):	5.5;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Energy & Mining,Advertising Company;	After-sales Service Provided:	Video technical support;
Blade speed @50HZ:	26,42,60,79.93mm/min;	Product name:	GZ4243 Band Saw Machine;
Place of Origin:	Shandong, China;	Saw Blade Tension Method:	Hydraulic;

Product Description

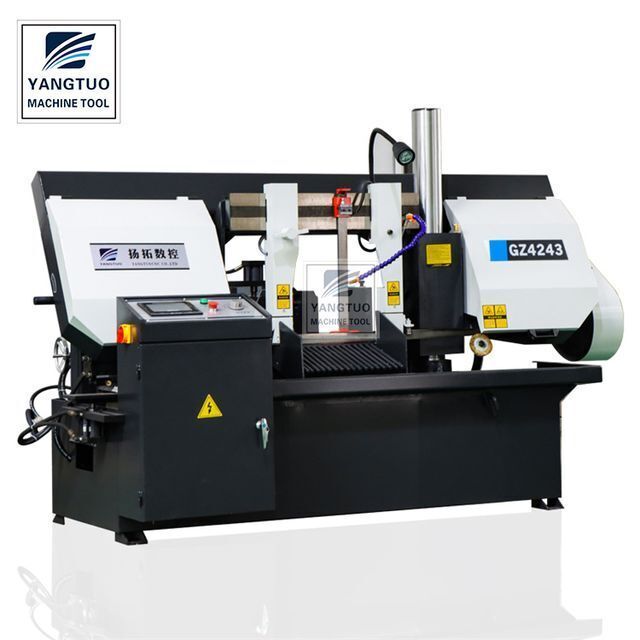

Horizontal Band Sawing Machine GZ4243 Miter metal cutting Band Saw Machine for sale

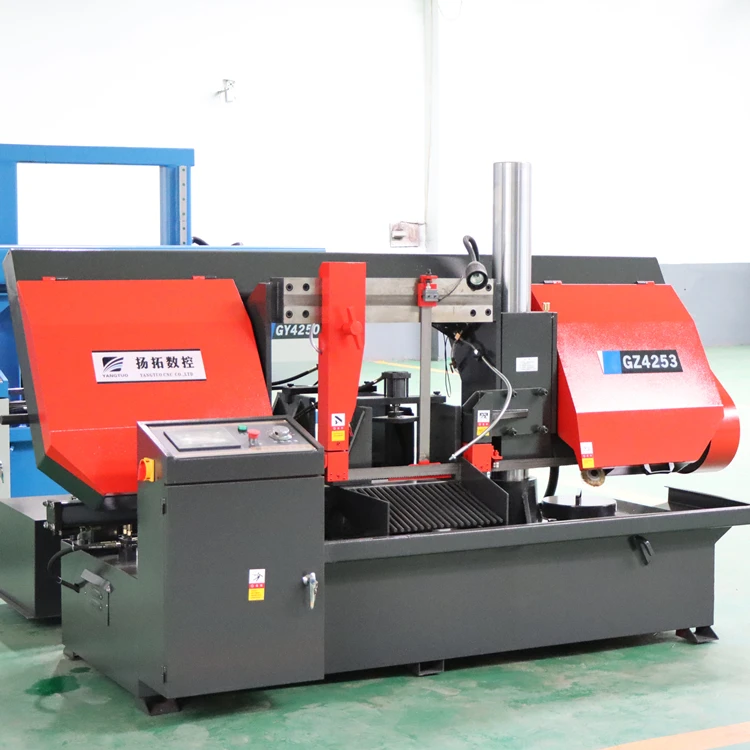

Main technical parameters	GZ4243	GZ4253
Sawing range	430-430*430mm	530-530×530mm
Belt saw blade size	5115431.3mm	5960×43×1.3mm
Saw blade speed	26,42,60,79.93mm/min	26,42,60,79.93mm/min
Maximum cut seam width	1.3mm	1.3 mm
Working clamping mode	hydraulic pressure	hydraulic pressure
Main drive structure	Turbine drive	Turbine drive
Feeding mode	hydraulic pressure	hydraulic pressure
Main motor power	5.5 kW	5.5kW
Hydraulic motor power	1.5kW	1.5kW

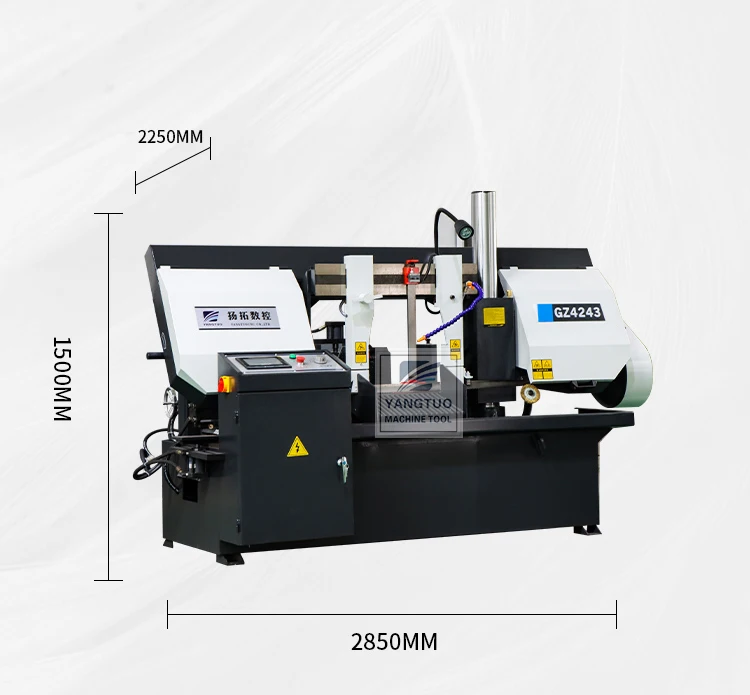

External form size	2800×2200×1400mm	2900×2200×1800mm
packing measurement	2850×2300×1500mm	2950×2300×1900mm
machine weight	2100KG	2500KG

GZ4243 semi-automatic metal band sawing machine is a kind of automatic cutting machine, suitable for cutting ordinary steel, die steel, low alloy steel, tool steel, bearing steel, stainless steel, copper and aluminum rod and profiles, various high sawing precision, small volume, light weight, convenient operation, stable performance, is an ideal equipment to cut various bars and profiles.

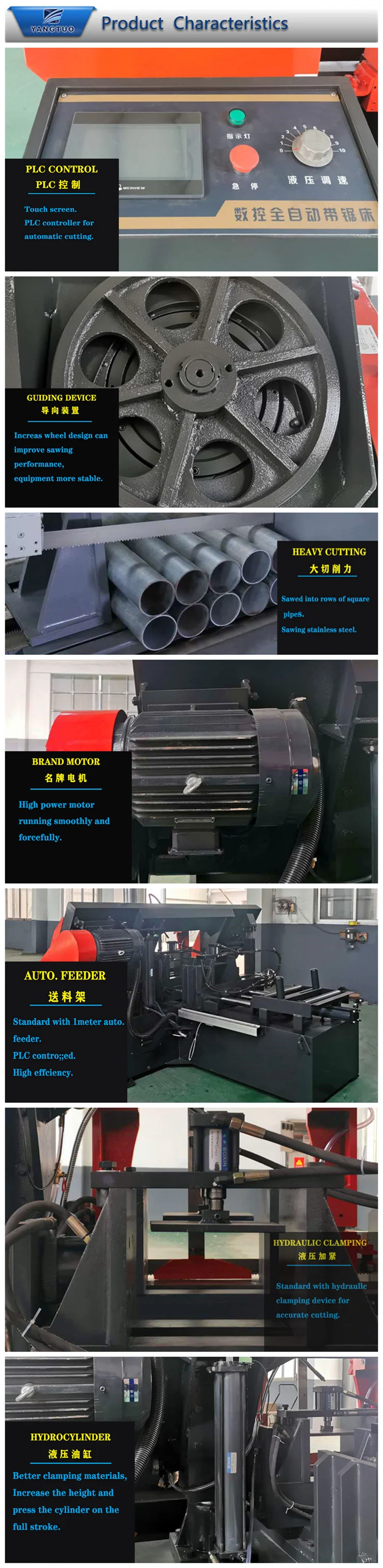

1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. The cut-off time of the machine is 4 to5 times shorter than that of hack sawing machine
4. The saw kerfs is 2mm narrower than of hack sawing machine.
5. Hydraulic feeding, step less speed regulation.
6 Hydraulic claming, automatic stopping.
7. Simple and convenient operation and maintenance
8. Cutting speed hydraulic control, stepless regulation speed, 5. Stable performance, high efficiency, suitable for bulk material
sawing.

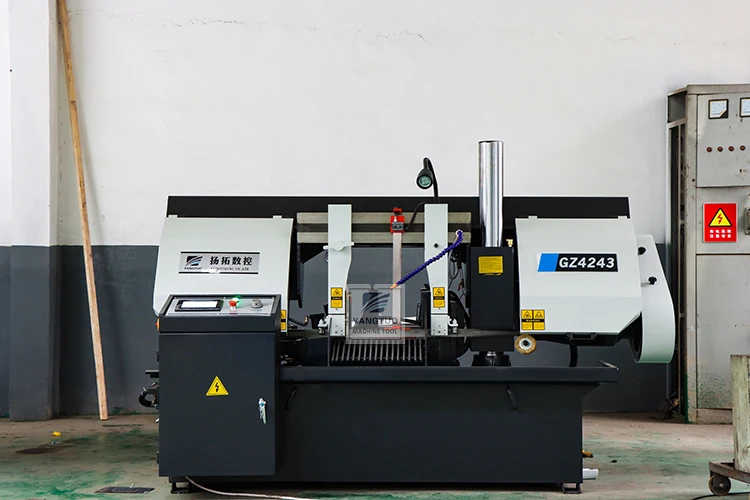

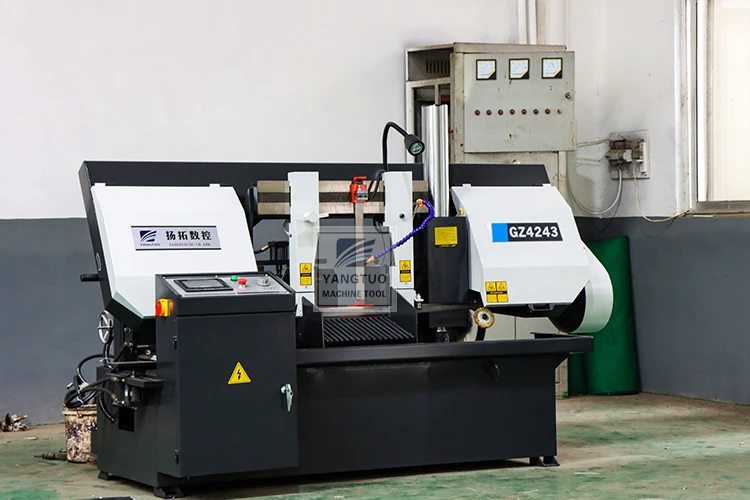

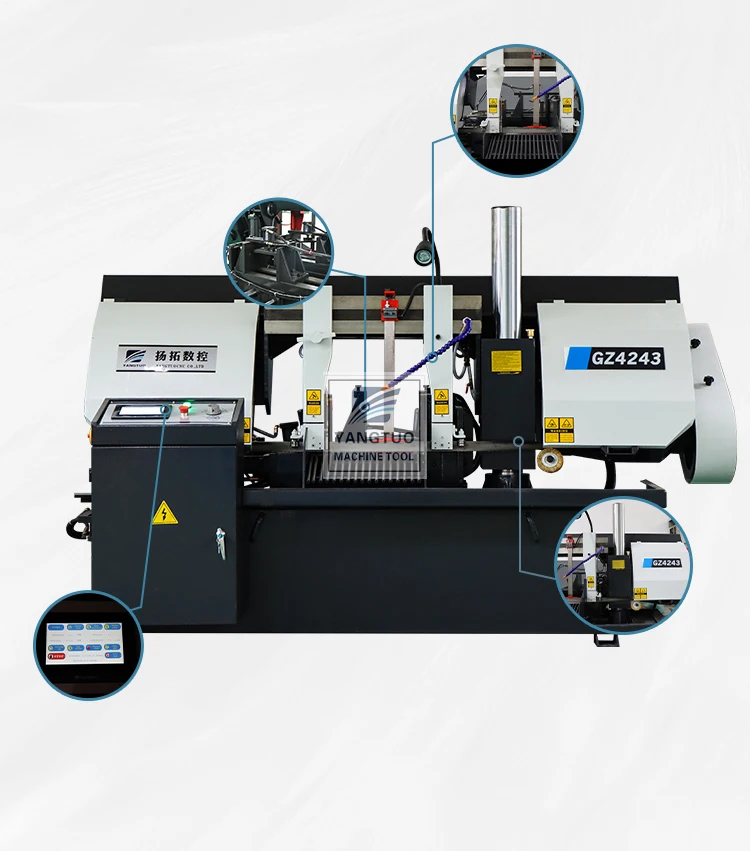

Detailed Images

Related Products

Certificate

Certificate Introduction

FAQ

1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5.Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
