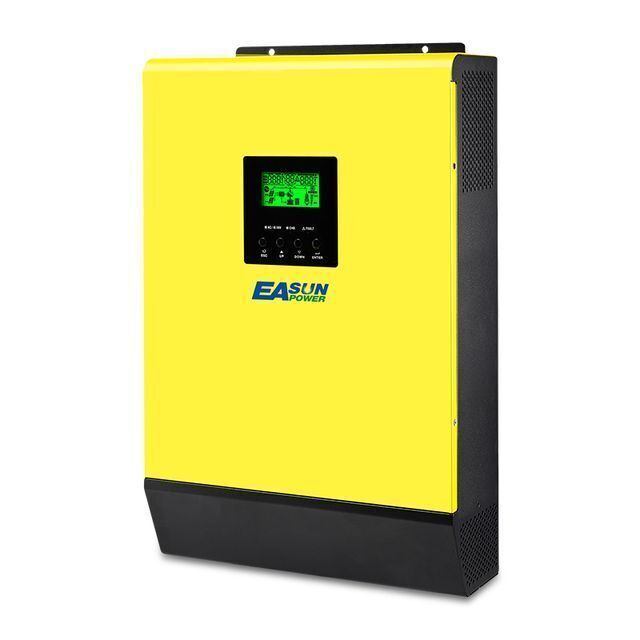

EASUN POWER 450Vdc Pv Input 220V 48V 5Kw On Off Grid Hybrid Solar Inverter

  • Supplier: Easun Power Technology Corp Limited
  • Region: Guangdong, China
  • Contact: Mr Jason Lau
  • Price: $620.00 / 1 - 4 pieces
    $615.00 / 5 - 19 pieces
    $599.00 / >=20 pieces
  • Min. Order: 1 piece
Product details
Size:120*295*468mm;Output Type:Single;
Type:DC/AC Inverters;Product name:MPPT Solar Charger;
Output Voltage:220V/230V/240V;Supply Ability:2000 Pieces per Month;
Brand Name:Easun power;Maximum Solar Charge:100A;
Output Current:13A;Model Number:IGrid SV II 5KW;
Feature:Hybrid solar inverter;Nominal Output Current:13A;
Payment Terms:L/C,Western Union,D/P,T/T,paypal;Inverter Efficiency:97%;
Weight:12KG;Communication Ports:USB, RS-232 and dry contact;
Maximum AC Input Current:100A;Place of Origin:Guangdong, China;
Output Frequency:50 Hz/60 Hz;Rated Power:5000W;
Nominal DC Voltage:48VDC;Packaging Detail:1pc/carton, 400pcs for 20ft container or according to clients' needs.;
Input Voltage:230VAC;Certificate:CE;
Package Preview:;Warranty:2 year;



Product Description
WARNING:
1. Because this inverter is non isolated, only three types of PV modules are acceptable: single crystalline, poly crystalline with class A rated and CIGS modules.
To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter. For
example, grounded PV modules will cause current leakage to the inverter. When using CIGS modules, please be sure NO grounding.

2.Before connecting to AC in put power source , please install a separate AC breaker between
inverter and AC input power source . This will ensure the inverter can be securely disconnected during
maintenance and fully protected from over current of AC input. The recommended spec of AC b reaker is 16A for 1.5KW and 32A for 3KW and 5 0A for 5KW
There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis connect input and output connectors.
Main Features
  • Pure sine wave max 5000w output
  • Max 100A MPPT solar charger
  • Max 450Vdc input

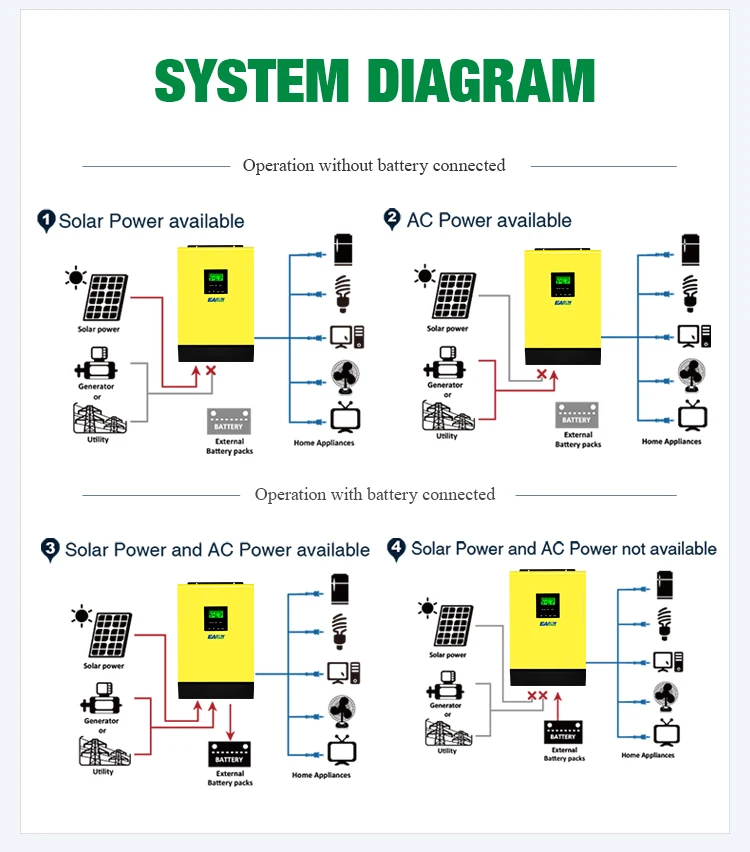

  • HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system
  • Parallel support up to 9 units
  • Batteryless operation
  • Total system max charging: 80A
  • Bundled monitoring & setting software
  • Supports 50hz or 60hz (program adjustable)
  • Grid feedback when there is excess energy
  • USB interface available
  • Able to use ac grid or generator power
  • Timer setting for AC charging & output now available

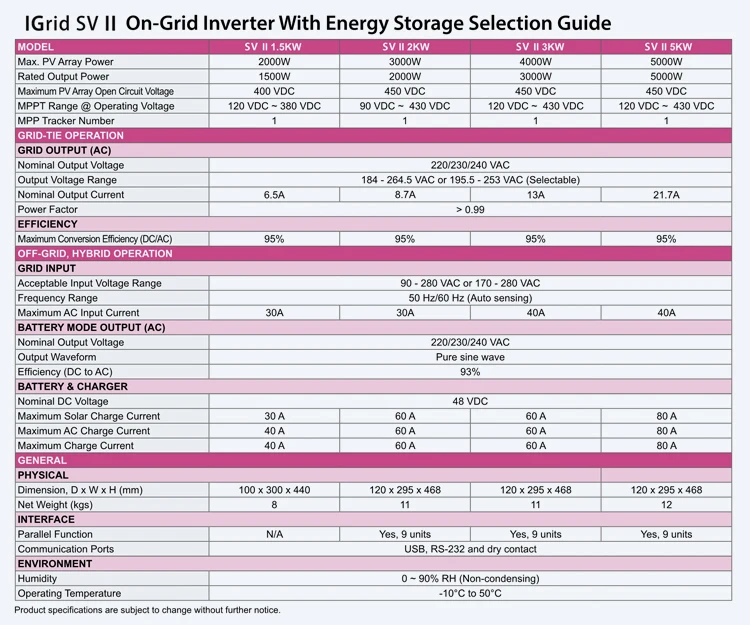

Specification



MODEL

IGrid SV II 5KW

Max. PV Array Power

5000W

Rated Output Power

5000W

Maximum PV Array Open Circuit Voltage

450 VDC

MPPT Range @ Operating Voltage

120 VDC ~ 430 VDC

MPP Tracker Number

1

GRID-TIE OPERATION

GRID OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Voltage Range

184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)

Nominal Output Current

21.7A

Power Factor

> 0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

95%

OFF-GRID, HYBRID OPERATION

GRID INPUT

Acceptable Input Voltage Range

90 - 280 VAC or 170 - 280 VAC

Frequency Range

50 Hz/60 Hz (Auto sensing)

Maximum AC Input Current

40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

93%

BATTERY & CHARGER

Nominal DC Voltage

48 VDC

Maximum Solar Charge Current

100 A

Maximum AC Charge Current

100 A

Maximum Charge Current

100 A

GENERAL

PHYSICAL

Dimension, D x W x H (mm)

120 x 295 x 468

Net Weight (kgs)

12

INTERFACE

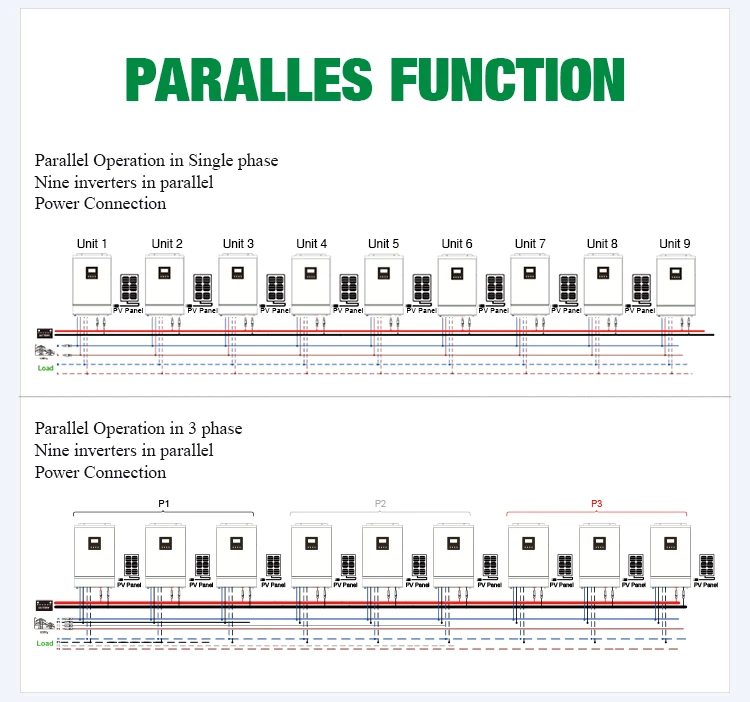

Parallel Function

Yes, 9 units (Parallel kits are not included)

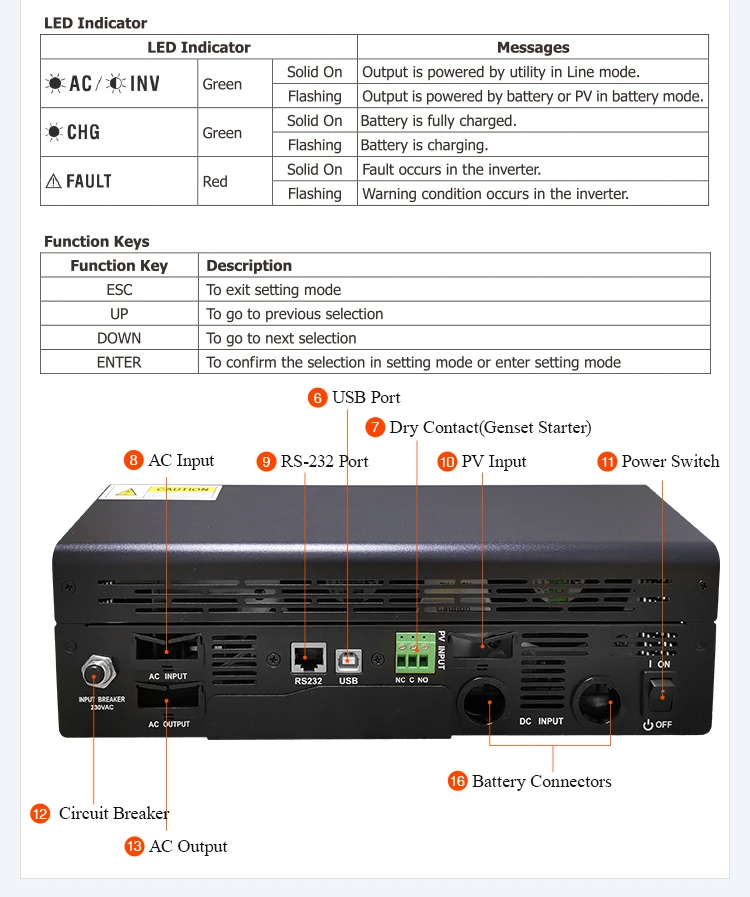

Communication Ports

USB, RS-232 and dry contact

ENVIRONMENT

Humidity

0 ~ 90% RH (Non-condensing)

Operating Temperature

0 to 50°C



Product Details





Product Catrgories

Company Information

Easun Power Technology Corp Limited is located in Shenzhen China.
We are professional and vigorous new energy company .
We commits to offer high quality products, has a team of professional and experienced specialists in the field of inverter charger. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.We commits to build mutual trust and make common progresses with our customers from all over the world.
We offers a full range of Solar product including :
Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator/Solar Accessories, etc
All consider with customers target price and MOQ, ship with their specified quality, to solve customer purchase problem, we are all online 24 hours for all customers.

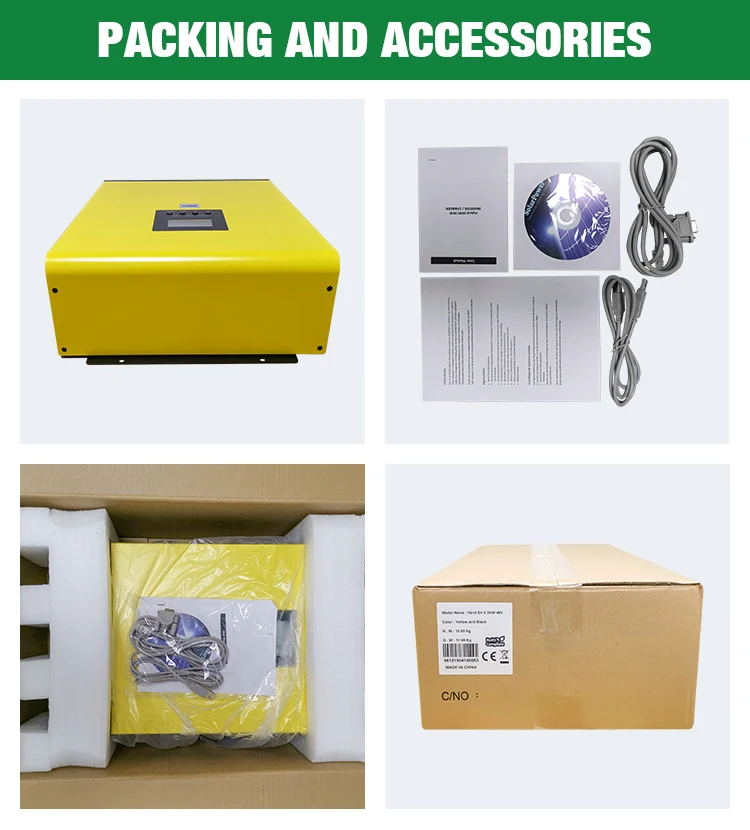

Packaging & Shipping
