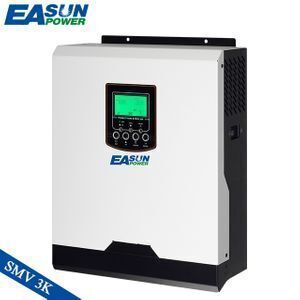

EASUN POWER 3000W 220V 40A 50Hz 24V Battery Charger MPPT 3Kva Pure Sine Wave Solar Inverter

Click here to contact

Product details

Weight:	10KG;	Output Current:	11A/10.5A;
Surge Power:	6000VA;	Output Type:	Single;
Rated Power:	3000VA / 3000W;	Place of Origin:	Guangdong China (Mainland);
Battery Voltage:	24VDC;	Overcharge Protection:	33VDC;
Selling Units:	Single item;	Single package size:	50X40X21 cm;
MPPT Range Operating Voltage:	30~80 VDC;	Delivery Detail:	0 days after payment;
Package Preview:	https://sc01.alicdn.com/kf/HTB1BU4kQSzqK1RjSZPxq6A4tVXam.jpg_640x640.jpg;	Single gross weight:	10 KG;
Feature:	Solar Inverter 3Kva;	Model Number:	ISolar SMV 3K;
Output Frequency:	50 Hz/60 Hz;	Product name:	3000W Solar Inverter;
Brand Name:	Easunpower;	Waveform:	Pure sine wave;
Floating Charge Voltage:	27VDC;	Maximum PV Array Power:	1000W;
Input Voltage:	230VAC;	Package Type:	1pc/carton, 400pcs for 20ft container or according to clients' needs.;
Size:	100 x 285 x 334mm;	Type:	DC/AC Inverters;
Output Voltage:	220V/230V/240V;

EASUN POWER 3000W 220V 40A 50Hz 24V Battery Charger MPPT 3Kva Pure Sine Wave Solar Inverter

Product Description

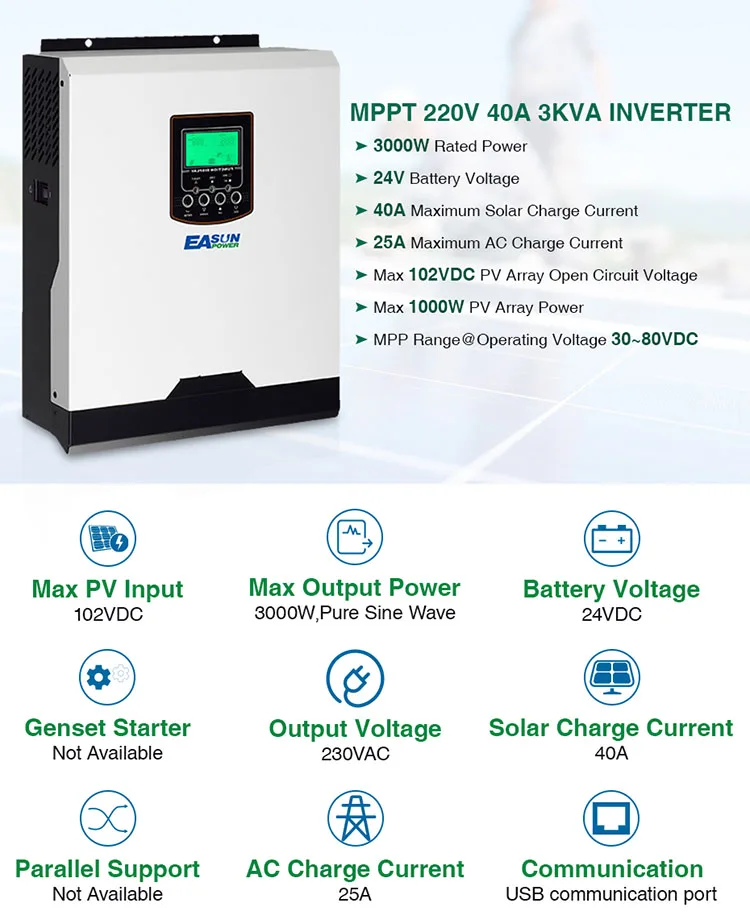

ISolar SMV 3KW is a new 3KVA 3000w 24Vdc Off Grid Solar Power Inverter MPPT Solar Inverter with 40A MPPT Solar Charger and 25A AC Charger

Product Main Features

3KVA 3000W 24V Pure Sine Wave Inverer +40A-MPPT Solar Charger + 25A Battery Charger
Max Battery DC Volt 33V
Built-in EQUALIZATION Charge Max 31.5V
Fuse Protection (Against DC Reverse Polarity)
MPPT-40A Solar + UTILITY 25A Charge
Works With 220~240Vac Load Only
Works With 24v battery system only
Dual priority operation selectable: AC vs. DC mode
Support frequency 50hz or 60hz
Adjustable AC input voltage 90~280VAC
Supports 50hz or 60hz via LCD program

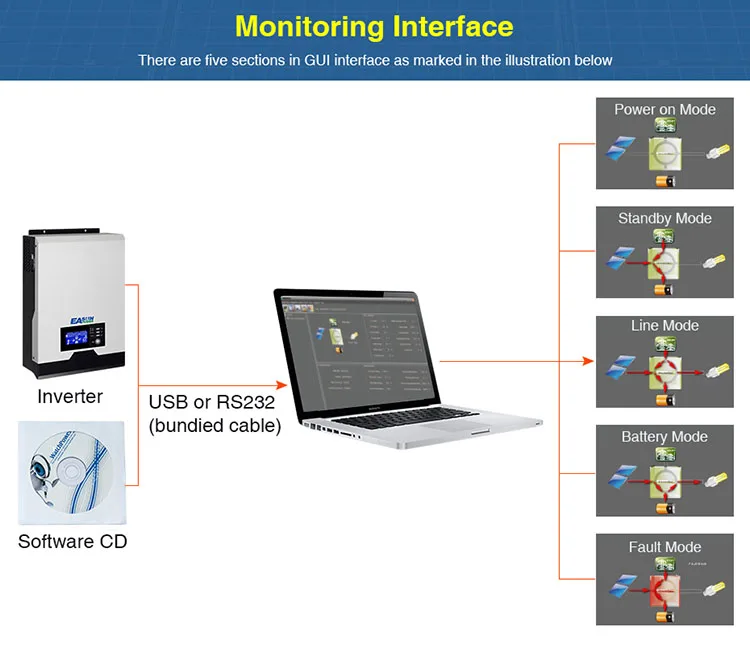

USB comm port
Free monitoring software
Programmable LCD with menu
Built-in alarms and protections
Intelligent battery charging control
CE, EMC certified

Specification

MODEL	ISolar-SMV 3K-24
Rated Power	3000VA / 3000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	6000VA
Efficiency (Peak)	90% ~ 93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	33 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type	MPPT
Maximum PV Array Open Circuit Voltage	102 VDC
Maximum PV Array Power	1000 W
MPP Range @ Operating Voltage	30~80 VDC
Maxmum Solar Charge Current	40 A
Maximum AC Charge Current	25A
Maximum Charge Current	60 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 285 x 334
Net Weight (kgs)	6.5
Communication Interface	USB/RS232
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	‘-10°C to 50°C
Storage Temperature	’-15°C to 60°C
