Pneumatic Automatic Reinforcing Steel Bar Thread Rolling Machine Rebar Thread Roller/Screw Making Machine

Supplier: Changge Deleixi Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Anna Ding
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	DLX;	Name:	Automatic High Speed Screw Threading Rolling Machine;
After Warranty Service:	Video technical support,Online support;	Package:	Wooden Case;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Construction works ,Energy & Mining;	Keyword:	Rebar Thread Rolling Mahcine;
Showroom Location:	None;	Local Service Location:	None;
With power supply:	three-phase 380V 50HZ;	Voltage:	380V, can be customized;
Type:	thread rolling machine south africa;	Port:	Qingdao;
Key word:	Rebar Turning Roller Threading Machine;	Place of Origin:	Henan China;
Certification:	ISO9001;	After-sales Service Provided:	Video technical support,Online support;
Warranty:	1 Year;	Machinery Test Report:	Provided;
Packaging Detail:	Packed in wooden cases;	Production Capacity:	100%;
Item:	High Speed Thread Rolling Machines;	Application:	Rebar;
Condition:	New;	Supply Ability:	500 Set/Sets per Month;
Power:	5.5KW;	Dimension(LWH):	15006001000mm;
Product:	steel bar thread rolling machine;	Marketing Type:	Hot Sale Product 2021;
Spindle speed:	40-60r/min;	Maximum processing length:	80mm;
Package Preview:	;	Warranty of core components:	1 Year;
Key Selling Points:	Easy to Operate;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Video outgoing-inspection:	Provided;	Core Components:	Motor;
Weight:	400kg;

Best quality price standard portable cold used making steel bar rebar rib peeling parallel thread rolling machine

Product Description

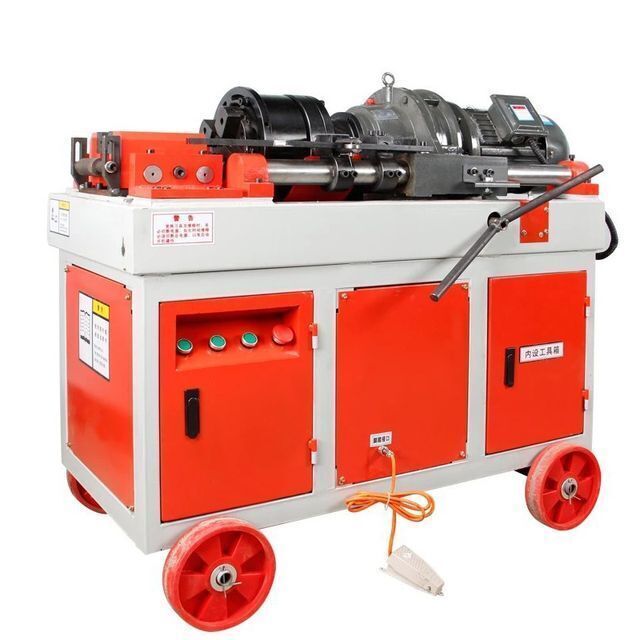

Rebar thread rolling machine is mainly applied to peel rebar rib first, then roll parallel thread on rebar end. It is also applied to roll threads on round steel bar, anchor rod, or other equivalent materials.

After that, you can screw into coupler or nut accordingly.

Model	HGS-40	HGS-45	HGS-50	HGS-40 Pneumatic	HGS-50 Automatic
Rolling length	0-80mm	0-90mm	0-100mm	0-80mm
Rebar diameter	Φ16-Φ32mm		Φ16-Φ40mm	Φ16-Φ32mm
Motor	4.5KW	5.5KW	7.5KW	7.5KW
Weight	310KG	320KG	330KG	800KG	880kg
Dimension	13001150750mm	13001000850mm	13006001000mm	14001150750mm	14001150750mm

Product Features:

1. One-time clamping reinforced rib peeling rolling thread can be completed.

2. Both right-handed & left-handed threads could be processed with one machine head.

3. Processing speed, high degree of automation.

4. Convenient operation, service life is long.

5. The thread rolling round joint additional cost is low.

6. Environment-friendly, safe, no environment and weather restrictions.

There are 3 pieces roller inside machine head. The roller can make threads on rebar or steel.

ROLLER THREAD PITCH (P=MM) AND REBAR SPECIFICATION
P=2/P=2.5 Φ12-22mm P=2.5/P=3 Φ25-32mm P=3/P=3.5 Φ36-40mm
Remark 1) 60° 75° thread angle free to choose
Remark 2) Rollers Dimension could be customized.

There are 4 pieces blades to peel rebar rib.

FAQ:

1.What are the consumable spare parts? Answer: roller, blade, eccentric shaft.

2. What is the motor voltage? Answer: machine standard motor is 3-380V-50HZ. Can be customized.

Packaging & Shipping

Packing and Shipping

1. Packaging: 1)Wrapped by proctective film;

2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

Company Information

Changge Deleixi Machinery Equipment co. LTD is a manufacturer of processing machine our products include steel bar cutting machine,steel bar bending machine,straightening cutting machine,stirrup bending machine,plate compactor,tamping rammer ,trowel machine and so on, with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are very popular in Mid-east,Africa,European ,American .ect, they are widely used in building ,road,railway and other area.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Our Services

1.We have more than10 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.

FAQ

1) How can I place order?

A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?

A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.

3) What's the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be
requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the
order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for
shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4)How do you take care when your clients received defective products?

A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5)How do you check all the goods in the production line?

A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
