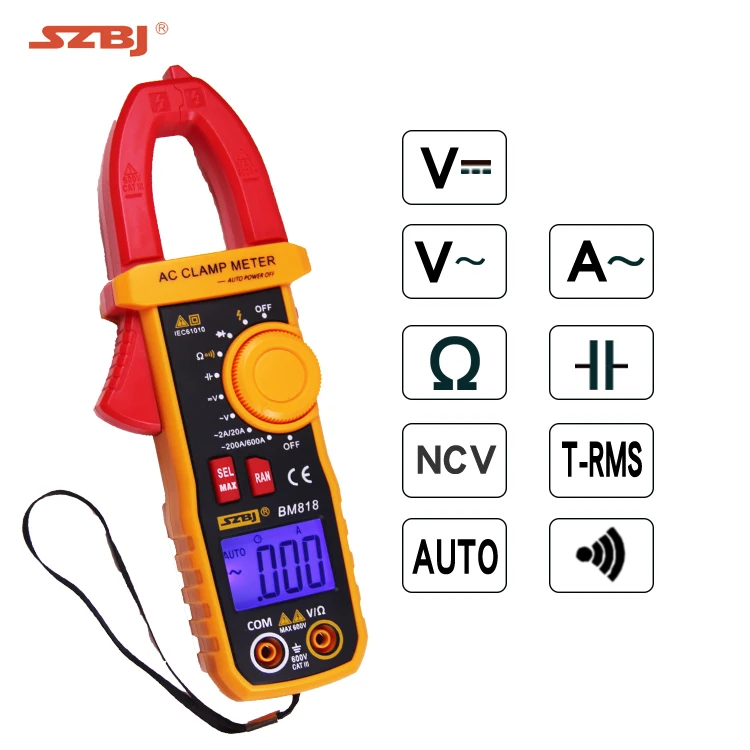

BM818 True RMS high quality 600A Manual and Auto Range Capacitance Digital Clamp meter

Supplier: Shenzhen Binjiang Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sabina Qing
Price: $10.00 / 1 - 53 pieces
$9.50 / 54 - 269 pieces
$8.00 / >=270 pieces
Min. Order: 1 piece

Click here to contact

Product details

Measuring Resistance Range:	200/2K/20K/200K/20MΩ;	Package Preview:	;
Jaw opening:	27mm;	Display:	LCD Display;
Operating Temperature:	0-40℃;	Product name:	digital clamp meter;
Power supply:	1.5V AAA Battery * 2;	Single gross weight:	0.42 KG;
Packaging Detail:	Carton packing 54 pieces per box Carton Size: 493930.5CM;	Measuring Capacitance Range:	20n/200n/2μ/20μ/200μ/2000μF;
Measuring Current Range:	2/20/200/600A;	Measuring Inductance Range:	\;
Color:	Yellow+Red;	Selling Units:	Single item;
Single package size:	23X11.3X4.1 cm;	Weight:	0.4kg;
Safety Rating:	CAT III 600;	True RMS:	AC Voltage AC Current;
Brand Name:	SZBJ;	AC Voltage:	2/20/200/600V;
Place of Origin:	China;	Display Type:	Digital Only;
Max. display:	1999 Digits;	Measuring Voltage Range:	AC 200mV/2V/20V/200V/600V;
Dimensions:	2311.34.1;	Name:	BM818;
Model Number:	BM818;

Product Description

BM818 AC Digital Clamp meter Technical parameters			Tomato&Potato
Functions	Range	Accuracy (BM818)
DC Voltage	200mV/2V/20V/200V/600V	±（0.5%+5）
AC Voltage	2/20/200/600V	±（1.2%+10）
AC Current	2/20/200/600A	±（2%+10）
Ω Resistance	200/2K/20K/200K/20MΩ	±（1%+5）
Capacitance(F)	20n/200n/2μ/20μ/200μ/2000μF	±（3%+5）
Special function
Manual range		√
Automatic range		√
Auto power OFF	About 10minutes	√
Auto power OFF		√	Auto power OFF/Manually turn it off
Diode Test		√
NCV	non contact voltage testing	√
Continuity Testing		√
Data hold		√
Low Battery indication		√
Overload protection		√
Backlight		√
Greatest display	1999	√
General Features
Power	AAA1.5V×2
Color	Gray＋Red
Weight	About 230g
Size	213×80×35mm

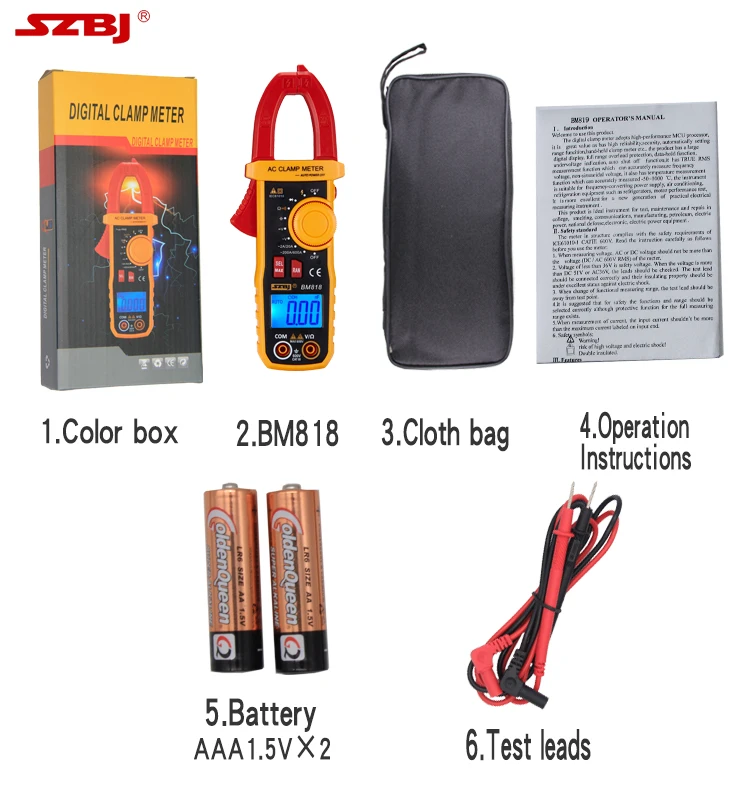

Standard accessories	Color Box，User Manual, Cloth Bag.
Standard Pack	Color Box，User Manual
Safety rating	EN61010-1，CAT.Ⅲ600V

Details Images

Related Products

Packing&Shipping

Company Introduction

Shenzhen BINJIANG Electronic Technology Co., Ltd. is a professional manufacturer of various digital instruments.Professional production of digital multimeter, clamp multimeter, insulation resistance meter, capacitance, resistance and inductance measurement meter, infrared thermometer, etc.

FAQ

Q1-What about the lead time please?

1) The standard order is 3 weeks.

2) The sample order could be within one week for the standard product.

Q2-Could I know the payment method please?

1) Standard order could pay by T/T,L/C, Alibaba Trade Assurance.

2) Small order could support the Western Union, Money Gram and Alibaba Trade Assurance(credit card acceptable).

Q3-Any suggestion for the delivery way please?

1) Express delivery, door to door service.

2) By air freight, to the airport of destination country.

In some case, DDU and DDP could be done.

3) By sea, FCL , LCL...

Q4-Any support or service for after sales please?

1) Standard quality guarantee is 18 months.

2) 24 hours online service for the emergency issue.

Our Advantages

(1)Factory Direct Sale------Factory direct sale business model, excellent in quality & competitive price.

(2)Professional Team------Professional technician team, skilled workers with lots of experience.
(3)Quick Delivery Time------Dependable production capacity and large amount of output, quick delivery time.
(4)High Quality------Product and materials has passed relevant quality certifications.
(5)Customization Service------Providing full set of customization service, OEM or ODM are welcomed.
