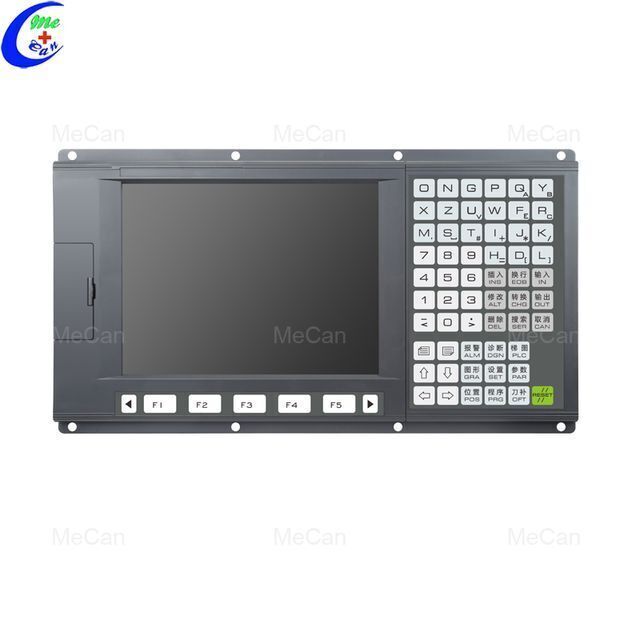

CNC System 4 Axis CNC Lathe Controller for CNC Lathe Retrofit
- 200.00 unit
| Brand Name: | MeCan; | Packaging Detail: | Export standard packaging for air and sea; |
| After-sales Service Provided: | Video technical support; | Video outgoing-inspection: | Provided; |
| Port: | Guangzhou, Shenzhen, Hong Kong, Shanghai; | Machinery Test Report: | Provided; |
| Supply Ability: | 1000 Unit/Units per Month; | Warranty: | 1 Year; |
| After Warranty Service: | Video technical support; | Application: | Lathe and Turning Center; |
| Axis: | 4 Axis; | Rapid override: | F0, 25%, 50%, 100%; |
| Local Service Location: | None; | Link axes: | 4; |
| Package Preview: | ; | Controllable axes: | 5(X, Z, Y , 4 th,5th); |
| Showroom Location: | None; | Condition: | New; |
| Applicable Industries: | Manufacturing Plant; | Core Components: | PLC; |
| Marketing Type: | New Product 2020; | Payment Terms: | Western Union,T/T,MoneyGram,Cash; |
| Place of Origin: | Guangdong China; | System: | CNC; |
CNC System 4 Axis CNC Lathe Controller for CNC Lathe Retrofit
What is the detail of our CNC Contoller?
It can control 5 feed axes (including Caxis), 2 analog spindles,1mshigh-speed interpolation, 0.1μm con trolprecision,which can obviously i'm prove the machining efficiency,precision andsur face quality.
Specification:
1.X, Z, Y, 4th, 5th ; axis name and axis type of Y, 4th, 5th can be defined 1ms interpolation period, control precision 1μm, 0.1μm
2.Max. speed 60m/min(up to 24m/min in 0.1μm)
3.Adapting to the servo spindle to realize the spindle continuously positioning, rigid tapping, and the rigid thread machining
4.Built-in multi PLC programs, and the PLC program currently running can be selected
5.Statement macro command programming, macro program call with parameter
6.Metric/inch programming, automatic toolsetting, automatic chamfer, tool life management function
7.Chinese, English display can be selected by parameters.USB interface, U disc file operation, system configuration and software
8.2-channel 0V~10V analog voltage output, two-spindle control
9.1-channel MPG input, MPG function
10.36 input signals and 36 output signals
11.Appearance installation dimension, and command system are compatible with 3000T
Parameter:
Application:
Details:
