Model:  MC-ES300

Decription:

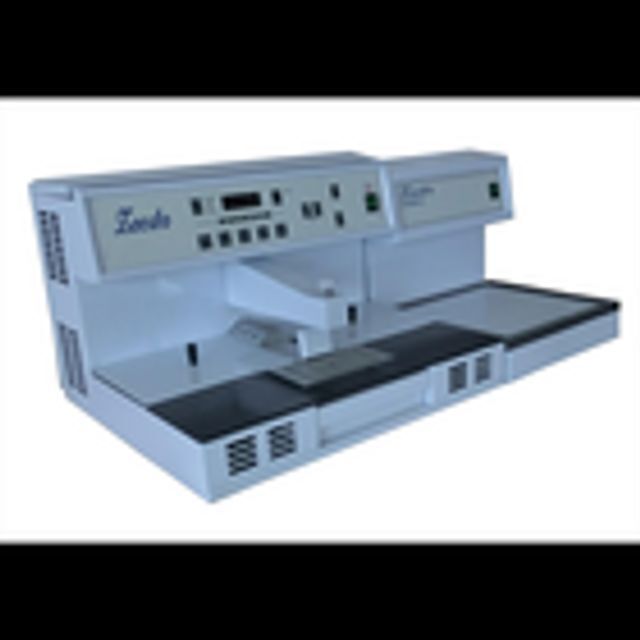

The Embedding center is composed of two modules, main console and Cryo Console. It is independent design, can put the position left-to-right or right-to-left, to meet different habits of customers. The large working surface allows user processing many samples at the same time. The temperature and work start time can be settable through the control panel.

Characteristics:

Main Console:

© The ergonomic large working surface allows processing many samples at same time.

© The large cold spot Peltier is designed to orient even small and big samples (Mega Cassettes).

© Work start time and day can be programmed automatically.

© The tissue embedding cassettes and base molds trays are removable and can be set at different temperatures.

Cryo Console:

© It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.

© The coated surface allows a minimum ice formation and easy cleaning.

© Temperature is adjustable from ambient to-13centigrade.

© It can be used as a stand alone unit near the microtome station.

Technical data:

Main Console:

© Nominal supply voltage: 220V/50HZ or 110V/60HZ

© Maximum power draw: 1000VA

© Working temperature: From ambient 90 centigrade

© Increments:  1centigrade

© Capacity:  Paraffin reservoir: 3.1 L

                     Cassetes/molds tray: 1.4L

© Dimensions:   (W*D*H) 560×530×350mm

© Weight: 30kg

Cryo Console:

© Nominal supply voltage: 220V/50HZor110V/60HZ

© Maximum power draw: 110VA

© Working temperature: From ambient to –20 centigrade

© Increments 1 centigrade

© Dimensions:   (W*D*H) 340mm * 540mm * 410mm

© Weight: 24kg

ES 500 Tissue Embedding System

Main Console specification

Nominal supply voltage:   220V/50Hz

Maximum power draw:    650VA

Working temperature:     from ambient to 80℃ increments 1℃

Capacity

Paraffin reservoir:        6.0 Lt

Cassette/mold tray:       1.6 Lt

Dimensions

Width:                 600mm

Depth:                 650mm

Height:                460mm

Weight:                30Kg

Cryo Console specification

Nominal supply voltage:   220V/50Hz

Maximum power draw:    200VA

Working temperature:     from 0℃ to -20℃increments 1℃

Dimensions

Width:                 410mm

Depth:                 580mm

Height:                 440mm

Weight:                 25Kg

Thermal Console specification

Nominal supply voltage:    220V/50Hz

Maximum power draw:     650VA

Working temperature:      from ambient to 80℃ increments 1℃

Capacity

Paraffin tray:            5Lt

Dimensions

Width:                  410mm

Depth:                  620mm

Height:                 440mm

Weight:                 13Kg
