Factory Price 2 4 5 Axis CNC Milling Machine Control CNC Controller

Supplier: Guangzhou Mecan Medical Limited
Region: Guangdong, China
Contact: Ms Paris Mao
Price: $200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Axis:	4 Axis;	Link axes:	4;
Controllable axes:	5(X, Z, Y , 4 th,5th);	Supply Ability:	1000 Unit/Units per Month;
Payment Terms:	Western Union,T/T,MoneyGram,Cash;	Marketing Type:	New Product 2020;
Local Service Location:	None;	Place of Origin:	Guangdong China;
Rapid override:	F0, 25%, 50%, 100%;	Application:	Lathe and Turning Center;
After-sales Service Provided:	Video technical support;	System:	CNC;
Package Preview:	;	Condition:	New;
Port:	Guangzhou, Shenzhen, Hong Kong, Shanghai;	Brand Name:	MeCan;
Applicable Industries:	Manufacturing Plant;	Warranty:	1 Year;
Core Components:	PLC;	After Warranty Service:	Video technical support;
Showroom Location:	None;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Packaging Detail:	Export standard packaging for air and sea;

Factory Price 2 4 5 Axis CNC Milling Machine Control CNC Controller

Product Description

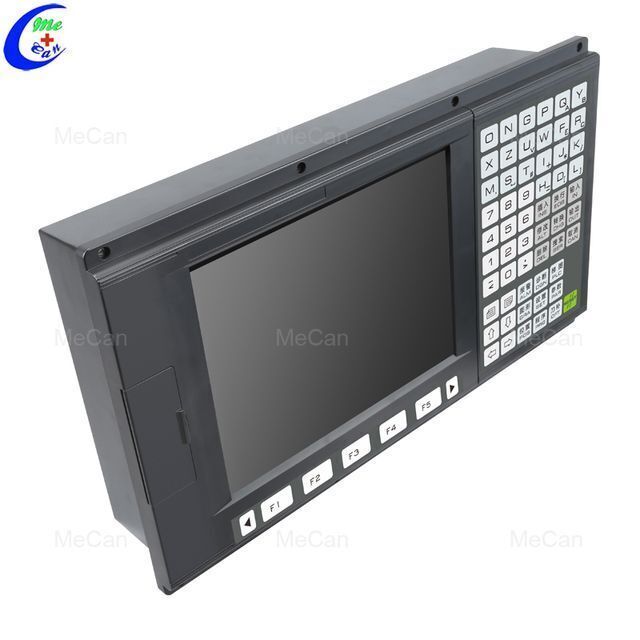

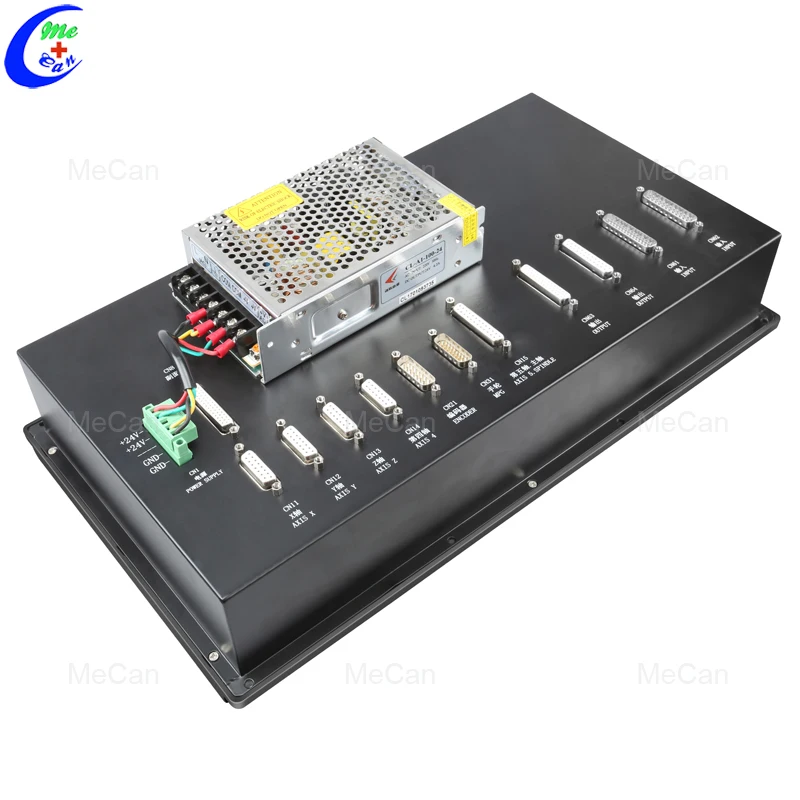

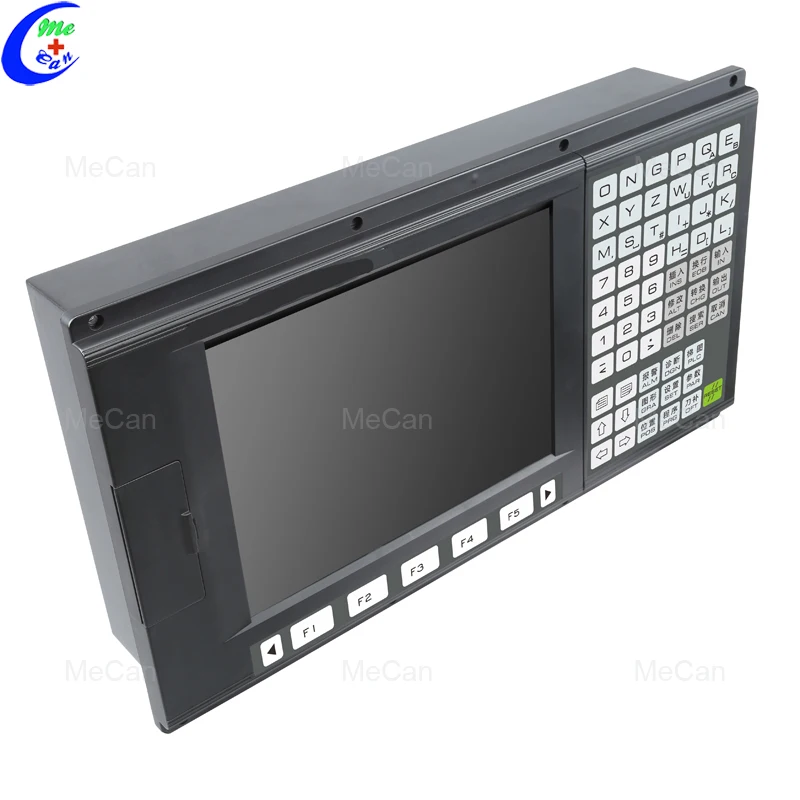

What is the detail of our CNC Contoller?

It can control 5 feed axes (including Caxis), 2 analog spindles,1mshigh-speed interpolation, 0.1μm con trolprecision,which can obviously i'm prove the machining efficiency,precision andsur face quality.

Specification:

1.X, Z, Y, 4th, 5th ; axis name and axis type of Y, 4th, 5th can be defined 1ms interpolation period, control precision 1μm, 0.1μm
2.Max. speed 60m/min(up to 24m/min in 0.1μm)
3.Adapting to the servo spindle to realize the spindle continuously positioning, rigid tapping, and the rigid thread machining
4.Built-in multi PLC programs, and the PLC program currently running can be selected

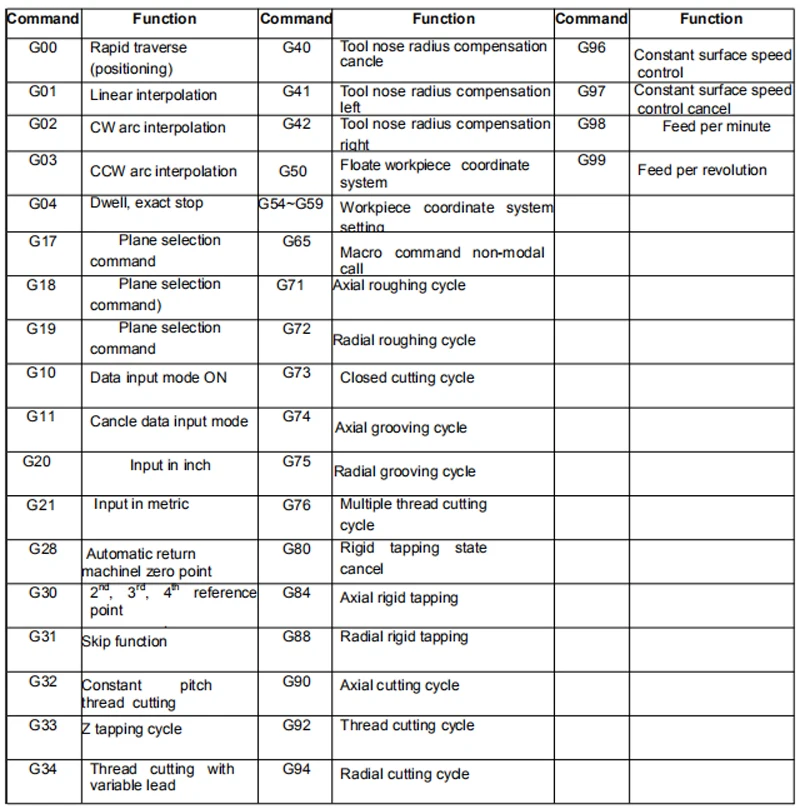

5.Statement macro command programming, macro program call with parameter
6.Metric/inch programming, automatic toolsetting, automatic chamfer, tool life management function

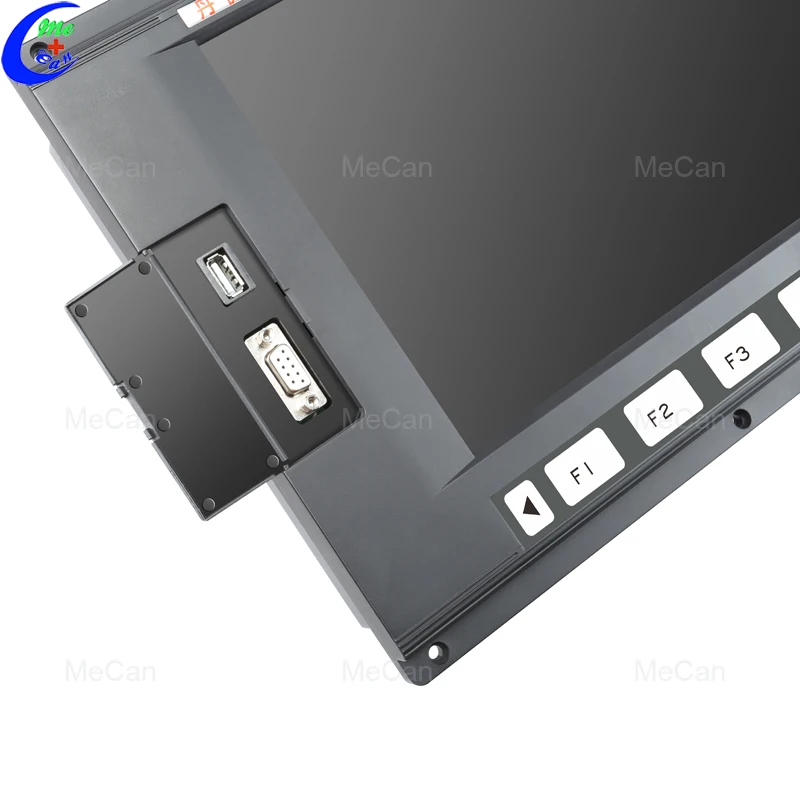

7.Chinese, English display can be selected by parameters.USB interface, U disc file operation, system configuration and software
8.2-channel 0V~10V analog voltage output, two-spindle control
9.1-channel MPG input, MPG function
10.36 input signals and 36 output signals
11.Appearance installation dimension, and command system are compatible with 3000T

Parameter:
