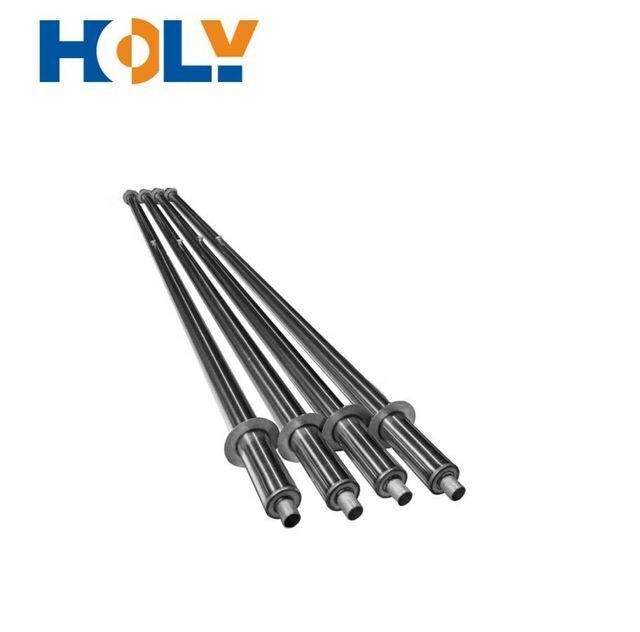

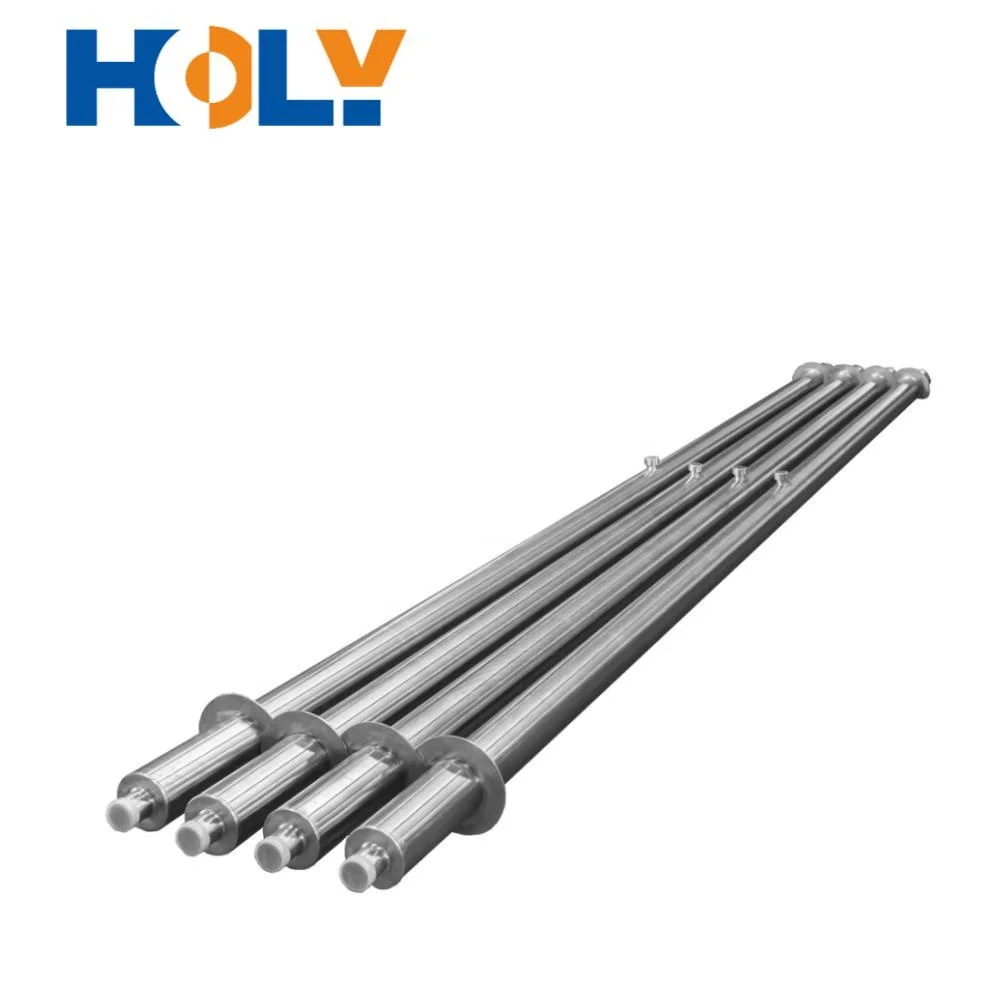

ASME &CE DN65,2-1/2" Liquid Hydrogen Vacuum Jacketed Piping for Air Separation Plant

Click here to contact
Product details
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Other;Place of Origin:Sichuan China;
Dimension(L*W*H):(1000~8200)*65*65 (mm);Local Service Location:None;
Warranty:1 Year;Packaging Detail:Metal Shelf without wood. Vacuum Insulated Pipe (VIP) shall be cleaned before packaging and kept the nitrogen filling state in the inner pipe. VIP is wrapped up by two-layer packing materials. The first layer, the VIP is completely sealed with a film to prevent moisture, and the second layer is completely wrapped with packing cloth, which mainly protects against dust and scratches. The packaged VIPs will be placed in the metal shelf like the picture shows.;
Condition:New;Type:Pipe;
Marketing Type:Ordinary Product;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Application:Industrial;Brand Name:HL;
Machinery Test Report:Provided;Weight:165kg;
Hoisting Height:200;Package Preview:;
Function:Transferring Cryogenic Liquid;Showroom Location:None;
Transmission Length:10;Material:Stainless Steel;
Key Selling Points:Energy saving;Supply Ability:2000 Meter/Meters per Quarter;
Core Components:300 Series Stainless Steel Pipe,300 Series Stainless Steel Pipe Fitting,Compensator;After Warranty Service:Video technical support,Online support,Spare parts;
Warranty of core components:1 Year;Certification:ASME & ISO9001;
Port:Shanghai Port, Qingdao Port, Shenzhen Port, Chongqing Port;Generator Certification:ASME & CE;
Video outgoing-inspection:Provided;After-sales Service Provided:Video technical support,Online support;
Introduction
Vacuum Insulated Piping System, namely Vacuum Jacketed Piping System, is constructed in a high vacuum and multi-layer multi-screen special insulated materials, and passes through a series of extremely strict technical treatments and high vacuum treatment, which is used for LO2, LN2, Lar, LH2, LHe and LNG.
Three Connection Types
In order to maximize the different needs of customers, Vacuum Insulated Pipe has developed three connection types, namely Vacuum Bayonet Connection Type with Clamps, Vacuum Bayonet Connection Type with Flanges and Bolts and Welded Connection Type. They have different advantages and are suitable for different working conditions.

Vacuum Bayonet Connection Type with Clamps
Vacuum Bayonet Connection Type with Flanges and Bolts

Welded Connection Type
Connection Type
Clamps
Flanges and Bolts
Weld
Insulation Type at joints
Vacuum
Vacuum
Perlite or Vacuum

On-site Insulated Treatment

No

No
Yes, perlite filled into or vacuum pump out from the Insulated Sleeves at joints.
Nominal Diameter of Inner Pipe
DN10(3/8")~DN25(1")
DN10(3/8")~DN80(3")
DN10(3/8")~DN500(20")
Design Pressure
≤8 bar
≤16 bar
≤64 bar
Installation
Easy
Easy
Welder
Length
1~8.2 meter
Material
Stainless Steel 304, 304L, 316, 316L
Medium
LN2, LOX, LAr, LHe, LH2, LNG
Specification
Model
Connection Type
Nominal Diameter of Inner Pipe
Design Pressure
Material of Inner Pipe
Standard
Remark
HLPSW01000X











Welded Connection Type for Vacuum Insulated Piping System
DN10, 3/8"














8~64 bar













300 Series Stainless Steel













ASME B31.3






00:
Design Pressure
08 is 8bar,
16 is 16bar,
and 25, 32, 40, 64.

X:
Material of Inner Pipe.
A is 304,
B is 304L,
C is 316,
D is 316L,
E is other.
HLPSW01500X
DN15, 1/2"
HLPSW02000X
DN20, 3/4"
HLPSW02500X
DN25, 1"
HLPSW03200X
DN32, 1-1/4"
HLPSW04000X
DN40, 1-1/2"
HLPSW05000X
DN50, 2"
HLPSW06500X
DN65, 2-1/2"
HLPSW08000X
DN80, 3"
HLPSW10000X
DN100, 4"
HLPSW12500X
DN125, 5"
HLPSW15000X
DN150, 6"
HLPSW20000X
DN200, 8"
HLPSW25000X
DN250, 10"
HLPSW30000X
DN300, 12"
HLPSW35000X
DN350, 14"
HLPSW40000X
DN400, 16"
HLPSW45000X
DN450, 18"
HLPSW50000X
DN500, 20"
Nominal Diameter of Outer Pipe:
Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Material of Outer Pipe:
Without special requirement, the material of inner pipe and outer pipe will be selected the same.
Dynamic and Static Vacuum Insulated Piping System
Dynamic Vacuum Insulated Piping System
Static Vacuum Insulated Piping System
Introduction
Compared with Static Vacuum System, the vacuum degree of Dynamic Vacuum System is more stable and does not decrease with time.
VJP completes the vacuum insulation work in the manufacturing plant.
Advantages
Recommended to install in a place where the room is too small for future maintenance.
More economical investment and simple on-site installation
Vacuum Bayonet Connection Type with Clamps
Applicative
Applicative
Vacuum Bayonet Connection Type with Flanges and Bolts
Applicative
Applicative
Welded Connection Type
Applicative
Applicative
Dynamic Vacuum Insulated Piping System: Consist of Vacuum Insulated Pipes, Jumper Hoses and Vacuum Pump System.
Product packaging
About The Production
About the Scope of Supply
* Vacuum Insulated/Jacketed Pipe
* Vacuum Insulated/Jacketed Flexible Hose
* Phase Separator/Vapor Vent
* Vacuum Insulated (Pneumatic) Shut-off Valve
* Vacuum Insulated Check Valve
* Vacuum Insulated Regulating Valve
* Vacuum Insulated Connector for Cold Box & Container
* MBE Liquid Nitrogen Cooling System
* Other cryogenic support equipment related to VI piping, including but not limited to, such as safety relief valve
(group),liquid level gauge, thermometer, pressure gauge, vacuum gauge, electric control box and so on.
About the Application of VI Piping
*Air Separation Plant
*Electronic Engineering Industry
*Semiconductor and Chip
*Aerospace
*Automobile Engine and Electromotor
*Bio-pharmaceutical Industry
*Food & Beverage Industry
*Liquefied Natural Gas (LNG)


About Our Partnership
HL Cryogenic Equipment passed International Gases Companies’ (inc. Air Liquide, Linde, AP, Messer, BOC) on-site audit and became their qualified supplier. The International Gases Companies respectively authorized HL to produce with its standards for its projects. HL provided solutions and products to them in air separation plant and gas application projects.
About the Raw Materials
HL Cryogenic Equipment is a vacuum manufacturer. All raw materials are purchased from qualified suppliers. So, The raw materials can be specified standards and requirements by user. Usually, ASTM /ASME 300 Series Stainless Steel (Acid Pickling, Mechanical Polishing, Bright Annealing and Electro Polishing) is selected.
FAQ
Q：About the Minimum Order.
A：There is no limited for minimum order.
Q： About the Manufacture Standard.
A：HL's Vacuum Insulated Pipe (VIP) is built to ASME B31.3 Pressure Piping code as the standard.
Q：About the Specification.
A：The size and design pressure of the inner pipe shall be according to the customer's requirements.The size of the outer pipe shall be according to the HL standard (or according to the customer's requirements).
