electric hydraulic marine loader marine unloading arm

Supplier: Lianyungang Saiweite Fluid Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hua Sun
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Transfer length:	1 km	Certification:	ISO9001-2008
application:	Petroleum Products and Chemicals	Main selling points:	high quality
Supply capacity:	100 sets per year	product name:	boat loading arm
Video shipment inspection:	if	Showroom location:	not any
Warranty:	1 year	Loading type:	loading and unloading
Marketing Type:	normal product	Core component warranty:	1.5 years
Applicable industries:	Energy and Mining	Nominal diameter:	DN100~DN500 (4"~20")
color:	gray, or customer request	Health status:	new
Core components:	boat loading arm	Mechanical test report:	if
Packaging Details:	export package	Dimensions (LWH):	custom made
place of origin; place of origin:	Jiangsu, China	brand:	LYGSVT
Lifting height:	10 m	weight:	10000
Pipe material:	Carbon steel, stainless steel, low temperature steel, PTFE lining, etc.	payment terms:	L/C, Western Union, T/T, MoneyGram
port:	Lianyungang, Shanghai, Qingdao Port

Product Description

boat loading arm

Oneboat loading armIt is a hinged piping system used to convey liquid or gas. This can be operated manually or hydraulically.

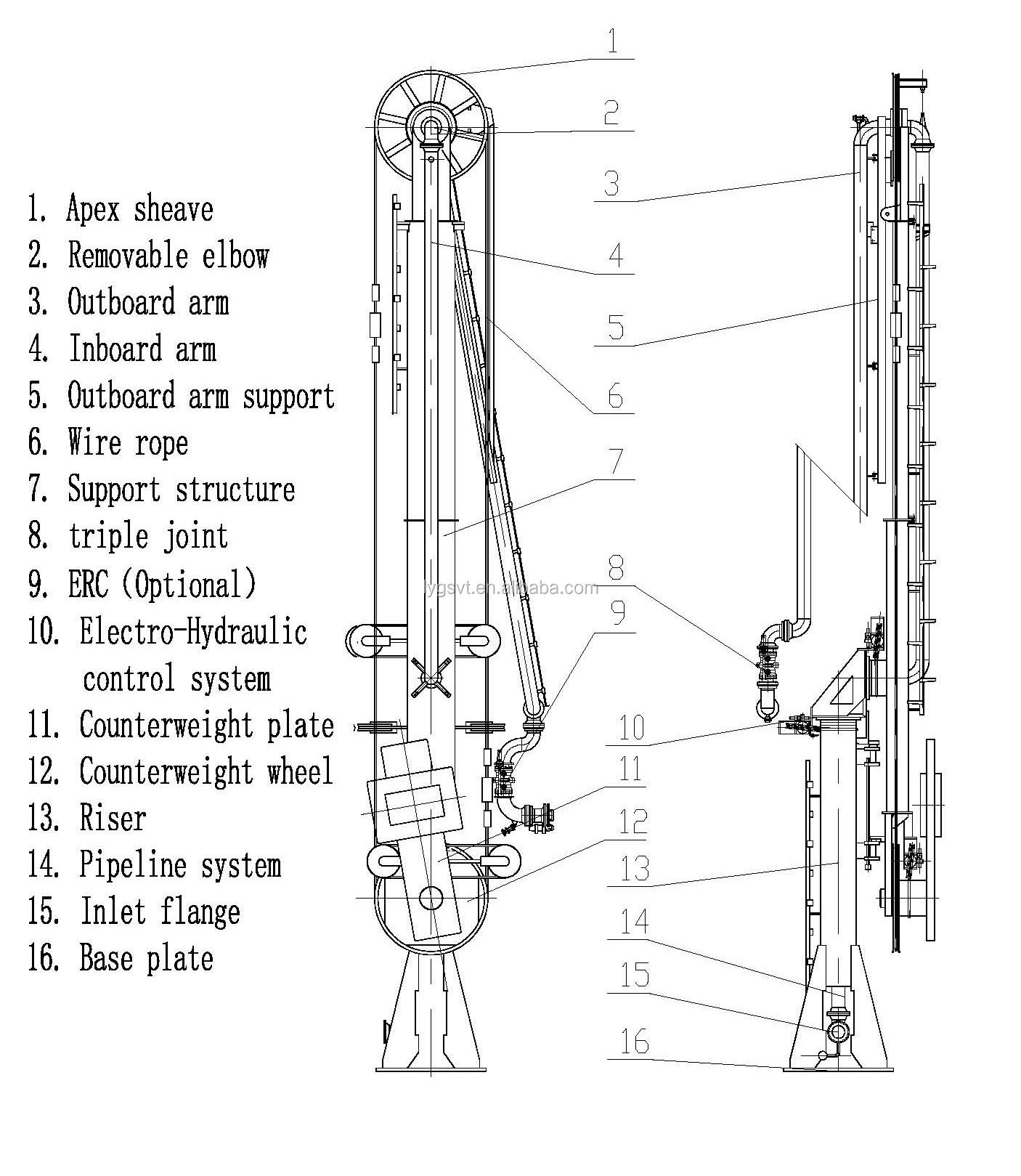

A marine loading arm consists of several components, namely: base riser, inner arm, outer arm, balance assembly, support structure and operating system.
Articulation is ensured by swivel arrangement. These arrangements (or styles) allow for full movement in all planes.
We design and manufacture a wide range of marine loading arms for loading and unloading virtually all liquid and compressed gas products from river barges, ships and oceangoing supertankers.

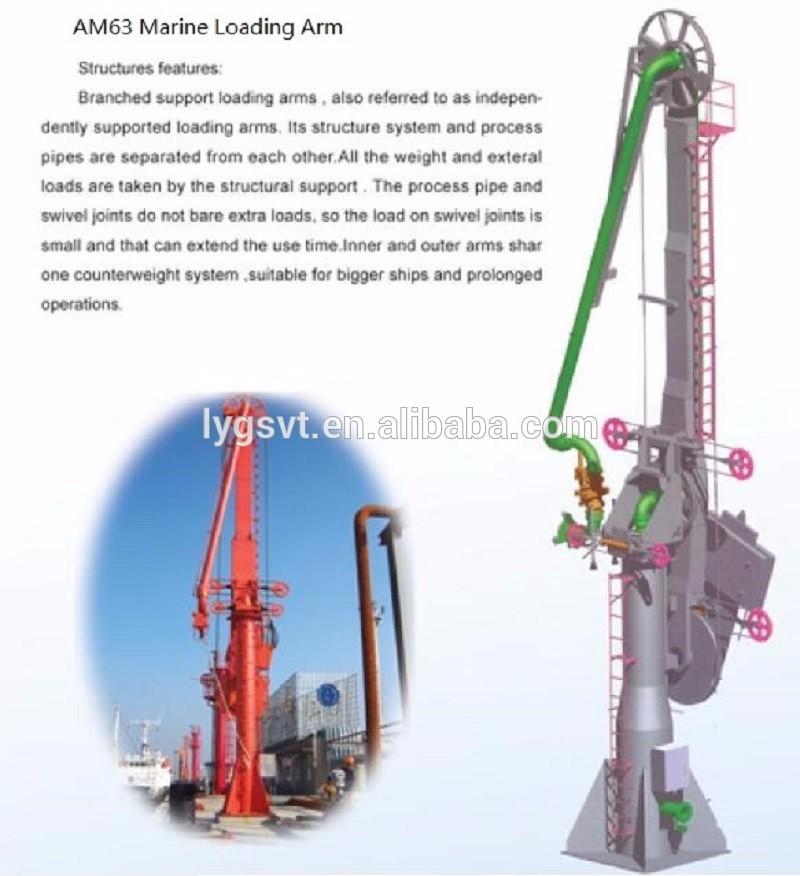

AM63—Single tube marine fork support structure loading and unloading arm

Product parameters

product name	boat loading arm
service product	Oil, gasoline, diesel, liquefied petroleum gas and various liquids
Nominal diameter	DN200 ~ DN600 (8" to 24")
design pressure	-0.08 MPa ~ +2.5 MPa
set tempreture	-196℃~ +250℃
pipe	Carbon steel, stainless steel, low temperature steel, PTFE
operation method	manual operation, hydraulic operation
optional equipment	Position Monitoring System (PMS), Hydraulic Power Unit (HPU), Quick Connect/Disconnect Connector (QC/DC), Cell Control Panel (PLC), Emergency Release System (ERS), etc.

design

The design of the marine loading arm / land loading arm varies according to customer requirements and environment. Therefore, the user needs to fill in the "Design Data Sheet", which includes: terminal tidal range, ship tonnage, liquid to be treated, pipe size, pressure level,
Environmental parameters (wind load, temperature, seismic load), etc.
Unless otherwise required by the user, the design environment parameters of LYGSVT marine loading and unloading arm are as follows:
• Design wind speed: Static (closed) state: ≤55M/S
• Design wind speed: ≤16 M/S
• Anti-seismic factor: 0.3 G
The total length of this marine loading arm can reach 30 M
Ship tonnage: 50000 tons
Operation mode: manual or electro-hydraulic operation

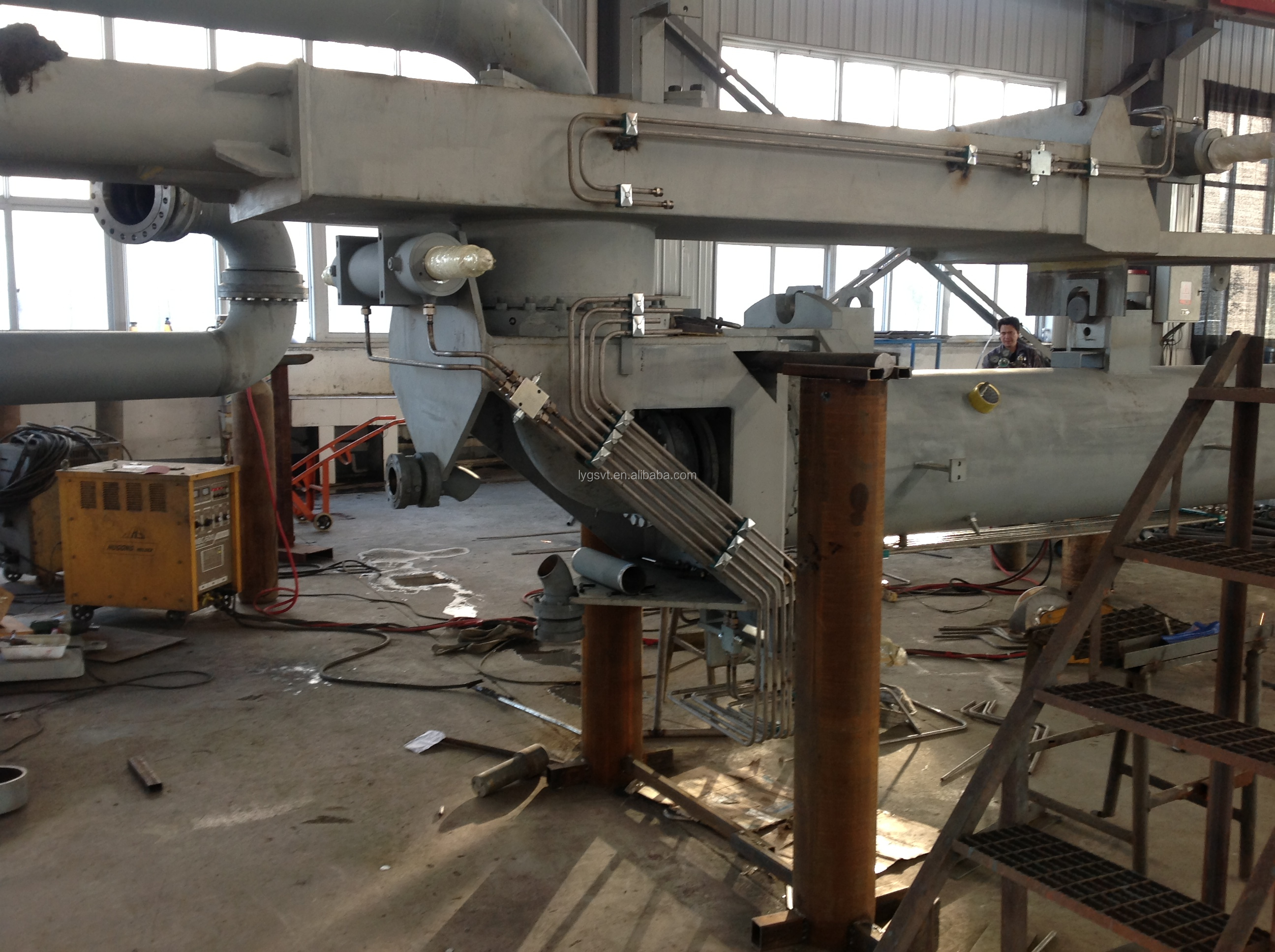

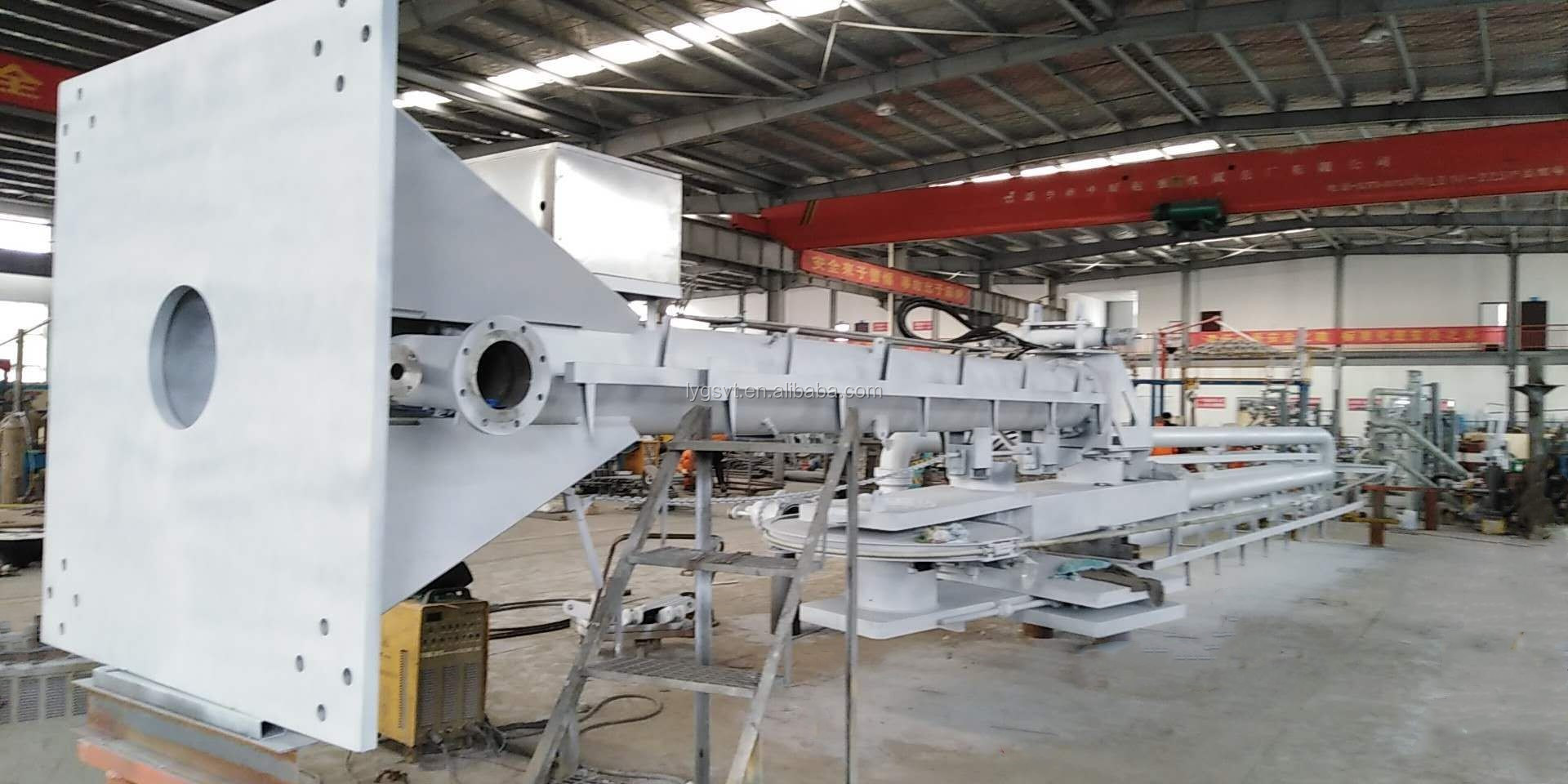

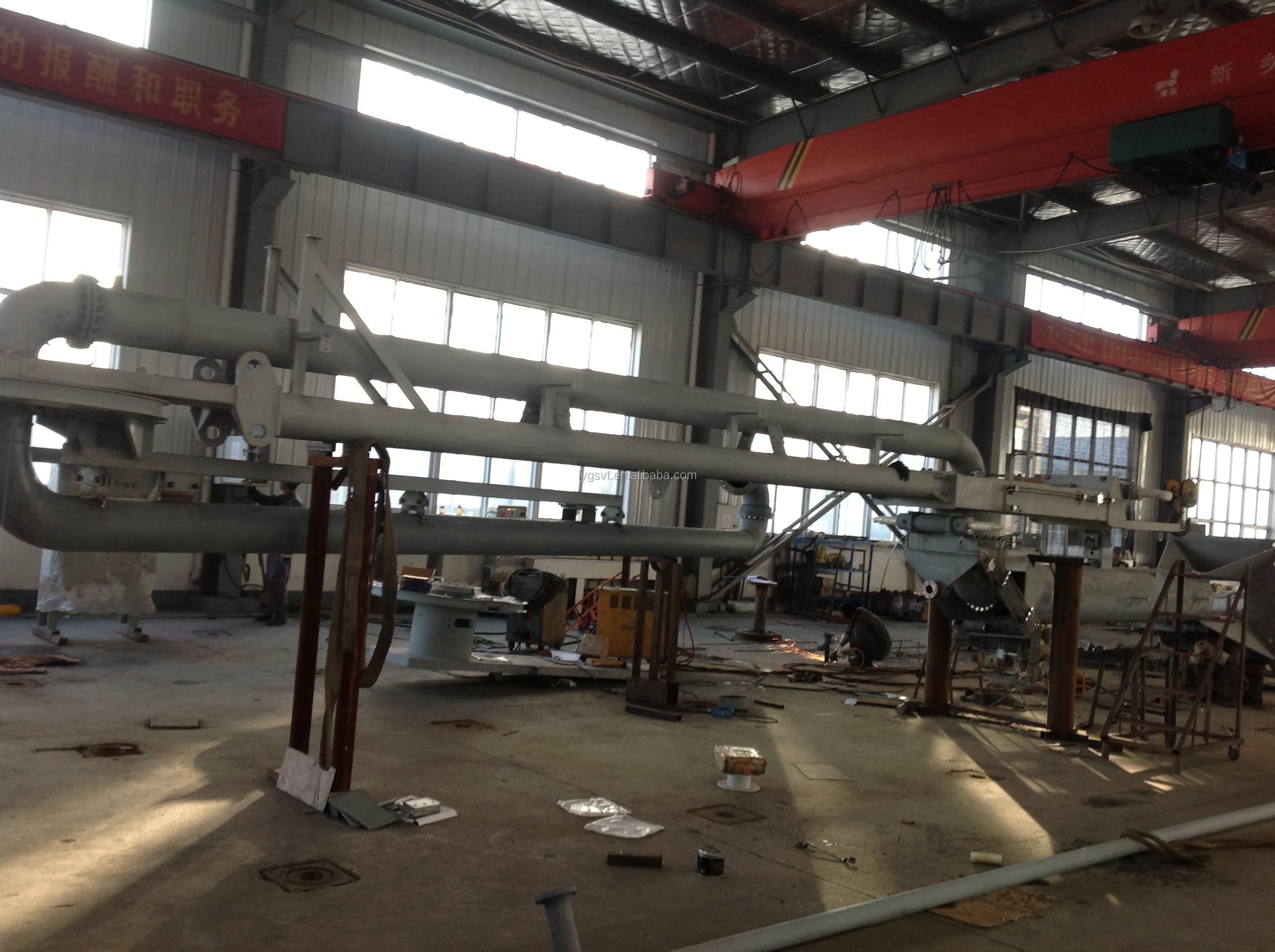

detailed image
