Skid mounted loading system for tank-truck

Product details
Pipelines' material:Carbon steel, Stainless steel;Delivery Detail:Shipped in 30 days after payment;
Brand Name:LYGSVT;Certification:ISO9001-2008;
Dry break coupler:aluminium alloy;Packaging Detail:Plywood case, metal frame, or custom-built as to your requirements;
skid loading system accessoy:skid, loading arm, meters, batch controller, static earth alarm;Model Number:AL2402;
Condition:New;Type of operation:Manual;
Port:Lianyungang, Shanghai, Qingdao Port, China Port;Type of Loading & unloading:bottom closed loading & unloading;
Dimension(L*W*H):Customized;Color:Customer request;
Product service:petroleum product, gasoline, diesel, and chemical products, etc;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Supply Ability:3000 Set/Sets per Year;Weight:Variable;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Jiangsu China;
Nominal diameter:3", 4";



Product Description

                                                 Loading Arm



Our  loading arm is especially designed for loading and unloading liquids from railcars and tank truck.

The type of land loading arm is divided into top loading arm and bottom loading arm.Our loading arm can be customized as the requirements of customer, characteristics of liquids, local conditions etc.

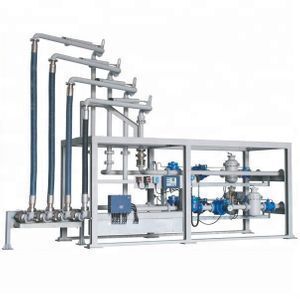

Skid loading system

Terminal skids are used for the transfer of high value products from storage to trucks, rail cars, ships and barges. The transfer of crude oil, bunker fuels, refined fuels, ethanol, biodiesel, LPG, asphalt, diesel exhaust fluid, fertilisers and a wide variety of chemicals and foodstuffs generally involves the safe transfer of the product through a bulk flow meter for accurate measurement.

Fuel terminals & refineries require loading systems that are well engineered, well built, & reliable. Our loading skids are designed as an individually tailored solution for clients requirements. We have worked for many oil companies providing loading skids & other tailored loading solutions for petroleum tanker loading.

Our skids are fully integrated loading systems, including pumps, meters, loading arms, & all the relevant safety systems, all mounted onto a robust & corrosion-resistant steel frame.



One loading skid could be equipped with up to 6 arms, and it is possible for 6 loading arms work sumultaneously and each arm could work independently without interference. And it can work with bottom quantitative loading control system and bottom overfill prevention ESD system.







 Design Parameters



Nominal Diameter

DN100 (4“)

Design Pressure-0.06MPa~5.0MPa
DesignTemperature-196°C~+250 °C
Balancing MethodSpring balance cylinder
Pipeline MaterialCarbon steel, Stainless steel
Service Product petroleum product, gasoline, diesel, and chemical products, etc

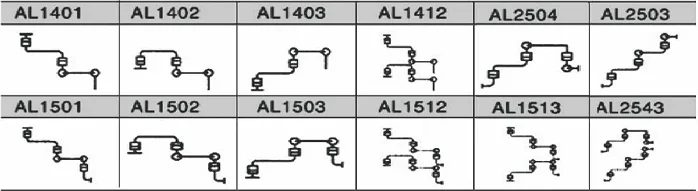

Major Models:











Packaging & Shipping







Company Information



Lianyungang Saiweite Fluid Equipment Co., Ltd. (LYGSVT) specializes in the design, manufacture, sale and installation of  petrochemical storage and transfer equipment & system.



LYGSVT offers wide variety in products for the tank storage and fluid transfer in the petroleum and petrochemical industry. Our main products include:

Storage Tank Equipment
•   Internal Floating Roofs
•   Floating Roof Seals
•   Floating Suction Unit

Fluid Handling Equipment
•    Land Loading Arms
•    Folding Stairs

•    Marine Loading Arms

•    Gangway Tower

•    Automatic Quantitative Loading System
