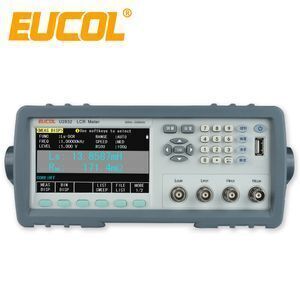

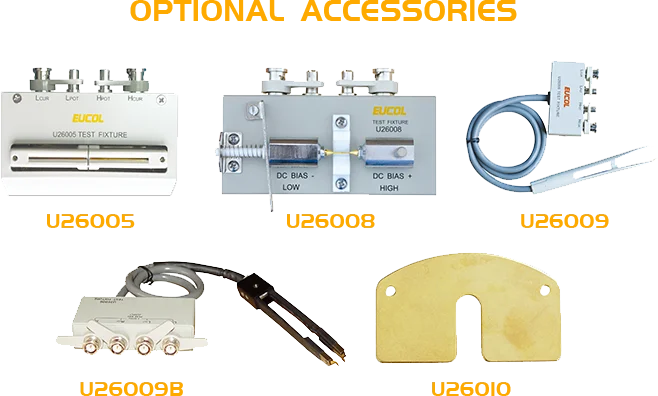

New High Performance Digital LCR Meter U2832

Supplier: Changzhou Eucol Electronic Technology Ltd.
Region: Jiangsu, China
Contact: Mr Jacky Bao
Price: $580.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Basic Accuracy:	0.05%;	Supply Ability:	3000 Unit/Units per Month;
Speed:	75 meas/sec;	Interface:	RS232C/ USB-HOST/ GPIB/HANDLER /USB-CDC/USB-TMC;
Display:	4.3-inch TFT color screen;	Comparators:	10 bins, BIN1? BIN9,NG,AUX;
Frequency:	50HZ-200kHZ, resolution: 10mHZ;	Packaging Detail:	Carton Package Dimension: 235mm(width)105mm(length)345mm(depth) Gross Weight: 2.5kg;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Place of Origin:	Jiangsu, China (Mainland);
Brand Name:	EUCOL;	Signal Level:	5mV-2V, resolution: 1mV;
Model Number:	U2832;	Port:	Shanghai, Hangzhou, Ningbo, Shenzhen, Guangzhou;
Name:	High frequency digital LCR meter;	Parameter:	\|Z\|,C,L,R,X,\|Y\|,B,R,G,ESR,D,Q, ?DCR;

brief interoduction

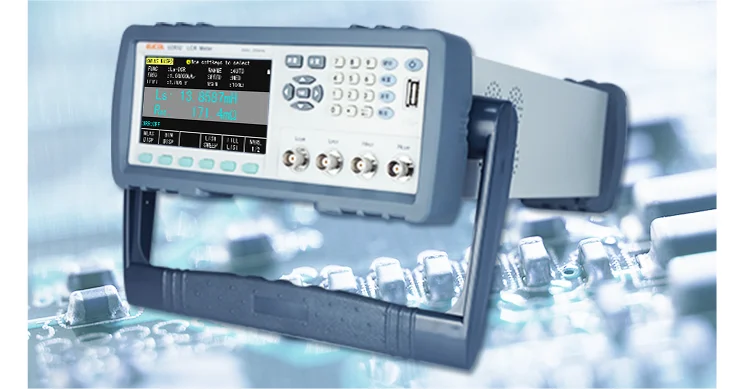

U2832 Series LCR Meter is a new generation of impedance test equipment with high accuracy, wide measurement range and six digits resolution. Being possessed with test frequency up to 200kHz, test voltage of 10mV-2V, it can meet all requirements for measuring components and materials and provide guarantees for production line quality assurance, incoming inspection and laboratory precision measurements.

Technical Specificat

Temperature & Humidity		0°C - 40°C, ≤90%RH
Power Requirement	Voltage	99V - 242V
	Frequency	47.5Hz - 63Hz
Power		≤20 VA
Dimension for shelves(W×H×D)		215mm×88mm×320mm
Dimension(W×H×D)		235mm×105mm×345mm
Weight		Approx. 2.5kg

Measurement function
Test Parameter	\|Z\|,C,L,R, X, \|Y\|,B,G,ESR,D,Q,θ DCR(only for U2832)
Basic Accuracy	0.05%
Measuring speed	Fast: 12.5ms, Med: 83ms, Slow: 167ms(meas/sec)
Equivalent circuit	Series and Parallel
Range mode	Auto, ffa200Hold
Trigger mode	Internal,Manual,DUT,External,Bus
Display mode	Direct-reading, Δ, Δ%
List sweep	100 points frequency, level, bias voltage/current, DC source
Correction	Open / short / load
Monitor	4.3-inch TFT color screen
Memory	Internal:100 groups,External:500 grooups(U-disk)
Test signal
Test frequency	U2831	50Hz – 100kHz, resolution:10mHz
	U2832	50Hz – 200kHz, resolution:10mHz
Output Impedance	30Ω, 50Ω, 100Ω
Test level	10mV—2.0V,resolution:10mV 100uA-20mA
Internal DC bias source	0V —— ±5V / 0mA —— ±20mA
Measurement display range
Ls,Lp	0.00001μH~99.9999kH
Cs,Cp	0.00001pF~99.9999mF
R,Rs,Rp,X,Z	0.00001Ω~99.9999MΩ
G,Y,B	0.00001μS~99.9999S
DCR	0.001mΩ~99.9999kΩ (only for U2832)
ESR	0.01mΩ~99.9999kΩ
D	0.00001~99.9999
Q	0.00001~99999.9
Θr	-3.14159~3.14159
Θd	-180.000°~180.000°
Δ%	-99.9999%~999.999%
Comparator and interface
Comparators	10 bins, BIN1 – BIN9,NG,AUX
Interfaces	RS232C/USB-HOST/USB-CDC/ USB-TMC/HANDLER
