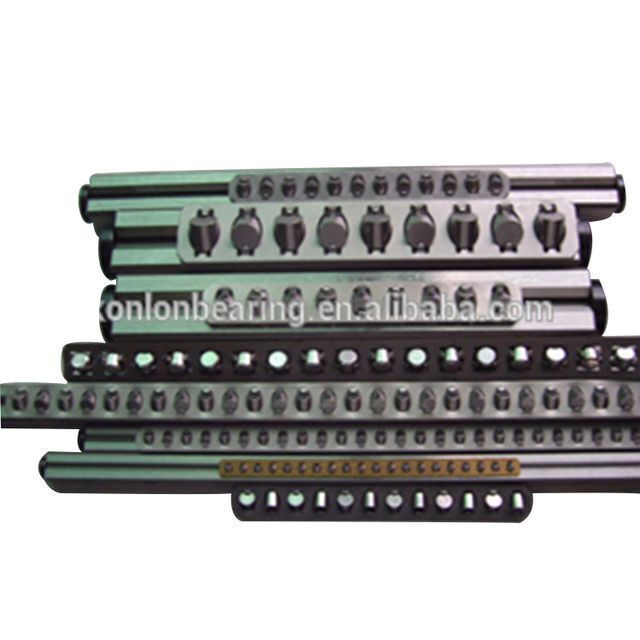

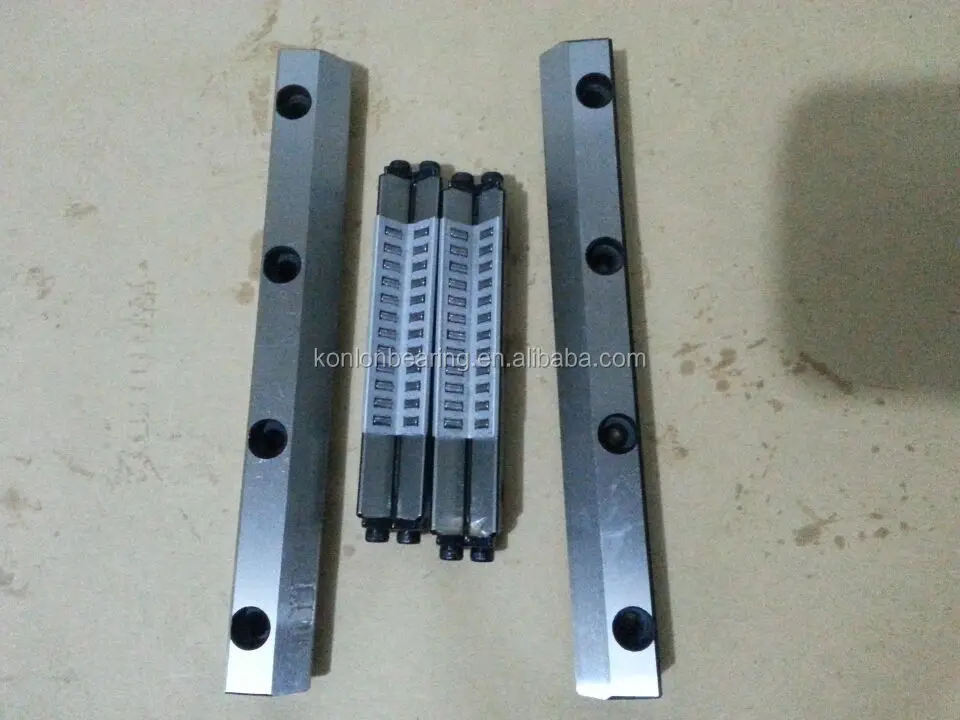

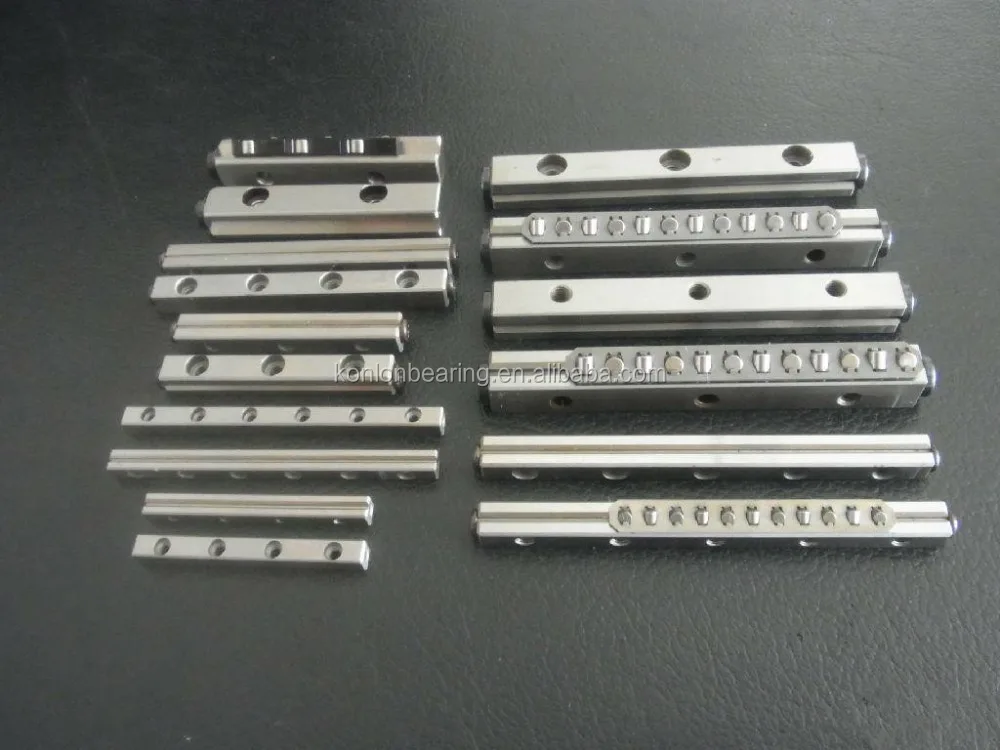

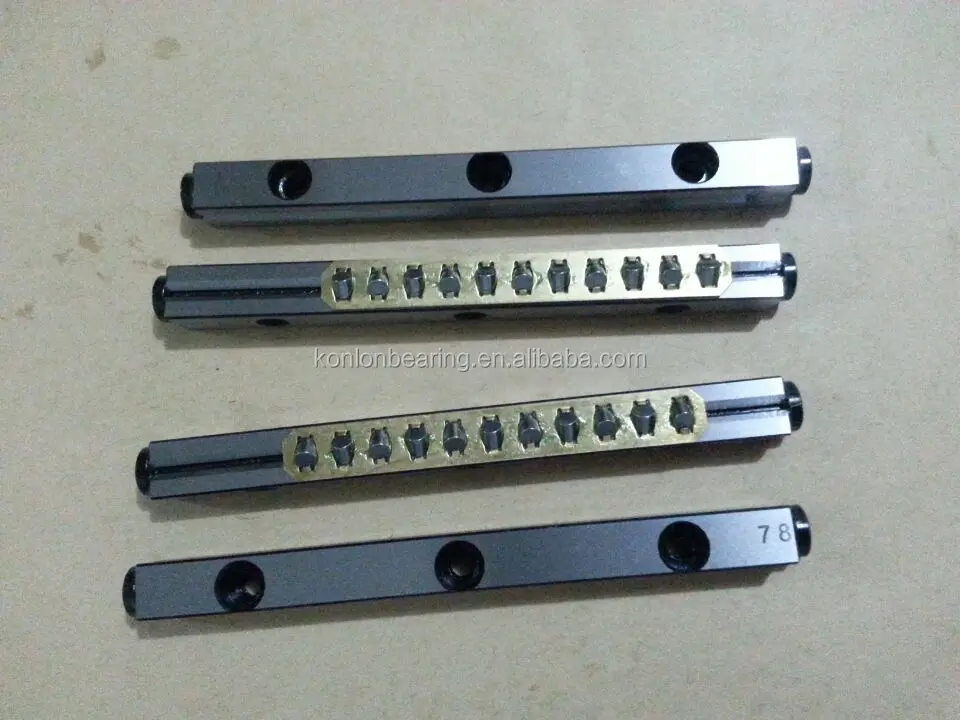

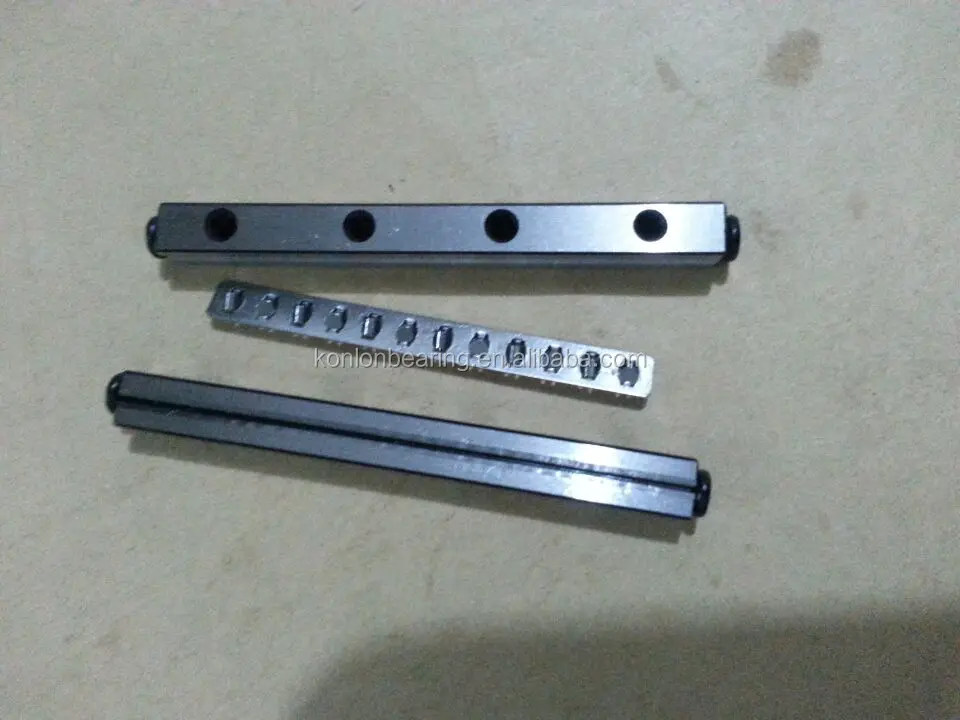

linear guide rail cage R2 for crossed roller slide
- 5.00 piece
| certificate: | ISO9001:2008; | Lubricating: | Dry; |
| Supply Ability: | 100000 Piece/Pieces per Month; | Place of Origin: | Anhui China; |
| Payment Terms: | L/C,T/T,Western Union; | Packing: | industrial packing; |
| Samples: | Avaliable; | Applicable Industries: | Manufacturing Plant; |
| Brand Name: | KONLON; | Material: | Stainless Steel, brass; |
| Precision Rating: | P0 P6 P5; | Port: | shanghai; |
| Delivery time: | fast, depend on final quantity; | Model Number: | R2; |
| Structure: | Slide Rail + Slide Block; | Type: | Sliding; |
| Packaging Detail: | crossed roller slide 1. Neutral Packing:White Plastic bag / Outer Carton / Pallet; 2. KONLON Brand packing:KONLON Plastic bag/KONLON box/KONLON outer carton / Pallet, Outer Carton, Pallet 3, on customers's request; |
linear guide rail cage R2 for crossed roller slide
Slide table Cross roller table VR cage please use our catalog for details.
| VR(R) type cages | ||||||||
| Part No. | D (mm) | t(mm) | W(mm) | p(mm) | a (mm) | C(kn) | Co(kn) | F(kn) |
| R 1 | 1.5 | 0.2 | 3.8 | 2.5 | 2 | 0.14 | 0.11 | 0.04 |
| R 2 | 2 | 0.3 | 5.6 | 4 | 2.5 | 0.32 | 0.26 | 0.09 |
| R 3 | 3 | 0.4 | 7.6 | 5 | 3 | 0.74 | 0.58 | 0.19 |
| R 4 | 4 | 0.4 | 10.4 | 7 | 4.5 | 1.49 | 1.19 | 0.4 |
| R 6 | 6 | 0.7 | 14 | 8.5 | 5.5 | 3.46 | 2.42 | 0.89 |
| R 9 | 9 | 0.7 | 19 | 14 | 7.5 | 8.4 | 6.36 | 2.12 |
| R12 | 12 | 1 | 25 | 20 | 10 | 17.01 | 13.05 | 4.36 |
| R15 | 15 | 14 | 30 | 25 | 20.07 | 17.64 | ||
| R18 | 18 | 18 | 30 | 30 | ||||
Typically, crossed roller slides are more expensive than ball slides.
Specifications for crossed roller slides include linear travel, dynamic load-carrying capacity, maximum linear velocity, and physical dimensions.
Linear travel is measured in inches (in), feet (ft), millimeters (mm), or centimeters (cm).
Dynamic load carrying capacity is measured in ounces (oz), pounds (lbs), grams (g), or milligrams (mg).
Maximum linear velocity is the speed at which the positioning carriage moves. Units of measure include inches per second (in/sec), feed per second (ft/sec), millimeters per second (mm/sec), and centimeters per second (cm/sec).
Physical dimensions for crossed roller slides include base length, base width, top height, carriage length, and carriage width.
Base length is the length of the base measured parallel to the main axis of travel. Base width is the width of the base measured perpendicular to the main axis of travel.
Top height is the height of the unit from the base to the top of the carriage.
Carriage length and carriage width are, respectively, the length and width of the carriage measured parallel to the main axis of movement.
Crossed roller slides differ in terms of applications and features.
