needle roller bearing axial needle thrust bearing nta411 nta512 nta613 nta815 nta916 nta1018 nta1220

Supplier: Hefei Konlon Bearing Co., Ltd.
Region: Anhui, China
Contact: Mr Allen Zhang
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certification:	ISO9001:2000;	Outside Diameter:	0.1 - 100 mm;
Bore Size:	0.1 - 100 mm;	Port:	Shanghai;
Precision Rating:	p0,p4,p5;	Brand Name:	konlon;
Payment Terms:	L/C,T/T;	Type:	Roller;
Supply Ability:	100000 Piece/Pieces per Month;	Keyword:	thrust bearing nta411 nta512 nta613 nta815 nta916 nta1018 nta1220;
Cage material:	Brass, steel, nylon;	Delivery Detail:	10-30days after confirming the order;
Place of Origin:	Anhui China;	Clearance:	C0,C3,C4;
Material:	Chrome steel\|stainless steel;	Structure:	Thrust;
Seals Type:	Open;	Number of Row:	Single row;
vibration:	Z1,Z2,Z3,;	Packaging Detail:	needle roller bearing axial needle thrust bearing nta411 nta512 nta613 nta815 nta916 nta1018 nta1220 1. Neutral Packing:White Plastic bag / Outer Carton / Pallet; 2. KONLON Brand packing:KONLON Plastic bag/KONLON box/KONLON outer carton / Pallet, Outer Carton, Pallet 3, on customers's request;
Model Number:	nta411;

You Are Here: Home>Ball bering>Roller bearing>Other bearing

Advantage

Why Chose Us ?

1.Excellent and high quality control,high speed,low noise,long life
2free sample bearing
3.Prompt delivery
4.Competitive price
5.Small order accepted
6.Customers' drawing or samples accepted
7.OEM service
8.ISO Standard
9.Professional:12 years manufacture bearing

Specifition

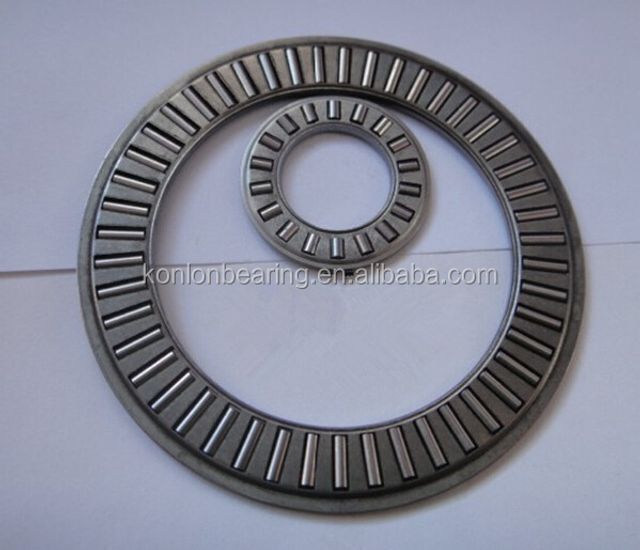

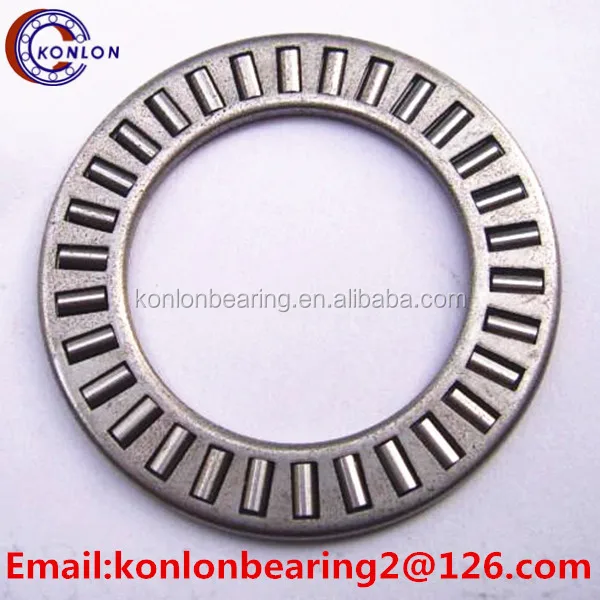

needle roller bearing axial needle thrust bearing nta411 nta512 nta613 nta815 nta916 nta1018 nta1220

1.Thrust roller bearing
2.Size: 10X24x2mm
3.Material:GCr15SiMn,G20Cr2Ni4
4.ISO9001:2000

5.Catalog index:
Characteristic of China needle roller bearings
Drawn cup needle roller bearings, HK, BK, HK 2RS, BK RS
Drawn cup needle roller bearings, TA, TLA
Drawn cup needle roller bearings, Inch size SCE, BCE...
Drawn cup needle roller bearings full complement, F, MF
Drawn cup needle roller clutch, HF, HFL
Needle roller and cage assemblies, K, K...ZW
Needle roller and cage assemblies, rod use KZK, KBK
Needle roller bearings without inner ring, NK, RNA, NKS
Needle roller bearings, NKI, NA
Needle roller bearings, flanges, without inner ring, RNAO, RNAO, ZW
Needle roller bearings, flanges, with inner ring, NAO...ZW
Needle roller bearings without inner ring full complement, RNAV
Needle roller bearings with inner ring full complement, NAV
Axial thrust needle roller and cage assemblies, AXK, AXW
Axial thrust needle roller and cage assemblies, inch size TC

Shaft Diameter	Bearing Designation
		Boundary Dimentions

		Dc1	Dc	Dw
6.35	NTA411	6.35	17.45	1.984
7.92	NTA512	7.92	19.5	1.984
9.52	NTA613	9.52	20.62	1.984
12.7	NTA815	12.7	23.8	1.984
14.27	NTA916	14.27	25.4	1.984
15.88	NTA1018	15.88	28.58	1.984
19.05	NTA1220	19.05	31.75	1.984
22.22	NTA1423	22.22	36.5	1.984
22.22	NTA1427	22.22	42.85	1.984
25.4	NTA1625	25.4	39.67	1.984
28.58	NTA1828	25.58	44.45	1.984
31.75	NTA2031	31.75	49.21	1.984
34.92	NTA2233	34.92	52.37	1.984
38.1	NTA2435	38.1	55.5	1.984
44.45	NTA2840	44.45	63.5	1.984
50.8	NTA3244	50.8	69.85	1.984
53.98	NTA3446	53.98	73.02	1.984
57.15	NTA3648	57.15	76.2	1.984
57.15	NTA3650	57.15	79.38	3.125
63.5	NTA4052	63.5	82.55	1.984
69.85	NTA4458	69.85	92.08	3.175
76.2	NTA4860	76.2	95.25	1.984
82.55	NTA5266	82.55	104.78	3.175
95.25	NTA6074	95.25	117.48	3.175
104.78	NTA6681	104.78	128.59	3.175
