29460 E 29464 E1 29472 M 29476E 29480 29484 29488 29492 spherical roller bearings
-
Supplier: Zhengzhou Jinfeng Bearing Sales Co., Ltd. -
Region: Henan, China -
Contact: Mr Mr Mike -
Price: $5000.00 / 1 - 99 pieces
$4000.00 / >=100 pieces -
Min. Order: 1 piece
Product details
| Seal Type: | Open | Packaging Details: | 1. Plastic bag + kraft paper + carton + plywood tray 2. Plastic tube + carton + plywood tray 3. Plastic bag + color box + carton + plywood tray 4. According to customer requirements |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Applicable industries: | Hotel, clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, household, retail, food store, print shop, construction, energy and mining, food and beverage store, other, advertising agency |
| Rows: | single row | brand: | Watts |
| type: | roller | Material: | Chrome steel GCR15 |
| Package preview: | Origin: | Beijing China | |
| cage: | Steel cage. Brass cage. Nylon cage | Serve: | OEM customization service |
| model: | 29460 | Accuracy class: | P2 P4 P5 P6 P0 |
| brand: | Zviz | lubricating: | grease |
| feature: | longevity | application: | Automobiles. Tractors. Construction machinery. Rolling mills |
| pack: | original packaging | structure: | thrust |
| Key words: | high stability | product name: | Spherical Roller Thrust Bearings |

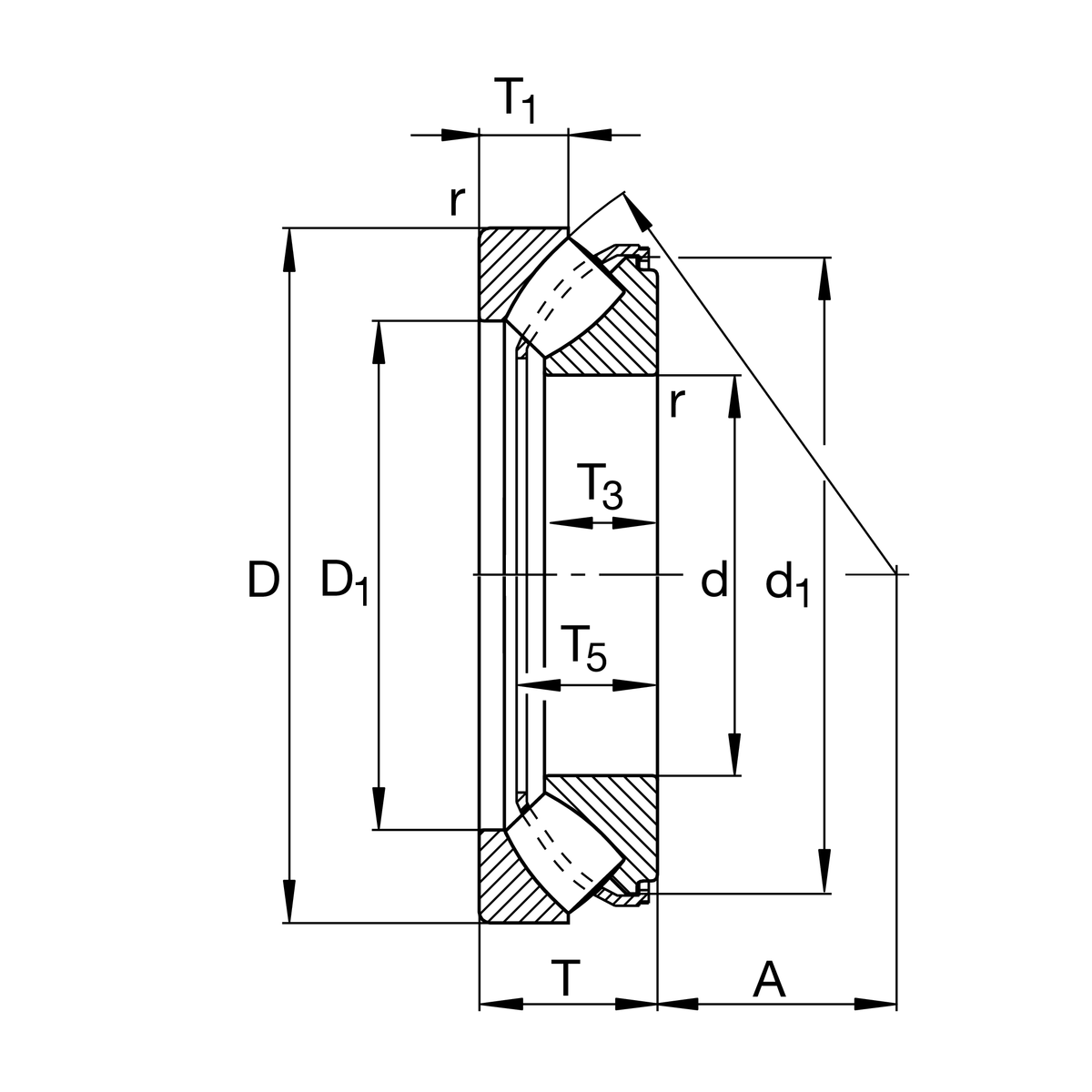

Product Description
Bearing part number | d | D. | Second |
29412E | 60 | 130 | 42 |
29413E | 65 | 140 | 45 |
29414E | 70 | 150 | 48 |
29415E | 75 | 160 | 51 |
29416E | 80 | 170 | 54 |
29417E | 85 | 180 | 58 |
29418E | 90 | 190 | 60 |
29420E | 100 | 210 | 67 |
29422E | 110 | 230 | 73 |
29424E | 120 | 250 | 78 |
29426E | 130 | 270 | 85 |
29428E | 140 | 280 | 85 |
29430E | 150 | 300 | 90 |
29432E | 160 | 320 | 95 |
29434E | 170 | 340 | 103 |
29436E | 180 | 360 | 109 |
29440E | 200 | 400 | 122 |
29444E | 220 | Chapter 420 | 122 |
Product Categories
Spherical Roller Thrust Bearings
Thrust spherical roller bearings are the same as spherical roller bearings. Raceway surface of seat ring is spherical
Centered on the same point on the central axis of the bearing. The rollers of this type of bearing are spherical, so they have
Self-alignment function. , is not very sensitive to coaxiality and shaft deflection. This type of bearing has very large
Axial load capacity. While bearing the axial load, it can also bear a certain amount of radial load, but the radial load shall not exceed 55%.
axial load. This type of bearing is mainly used in hydroelectric generators, vertical motors, ship propeller shafts, towers
Cranes, extruders, etc.
Centered on the same point on the central axis of the bearing. The rollers of this type of bearing are spherical, so they have
Self-alignment function. , is not very sensitive to coaxiality and shaft deflection. This type of bearing has very large
Axial load capacity. While bearing the axial load, it can also bear a certain amount of radial load, but the radial load shall not exceed 55%.
axial load. This type of bearing is mainly used in hydroelectric generators, vertical motors, ship propeller shafts, towers
Cranes, extruders, etc.
