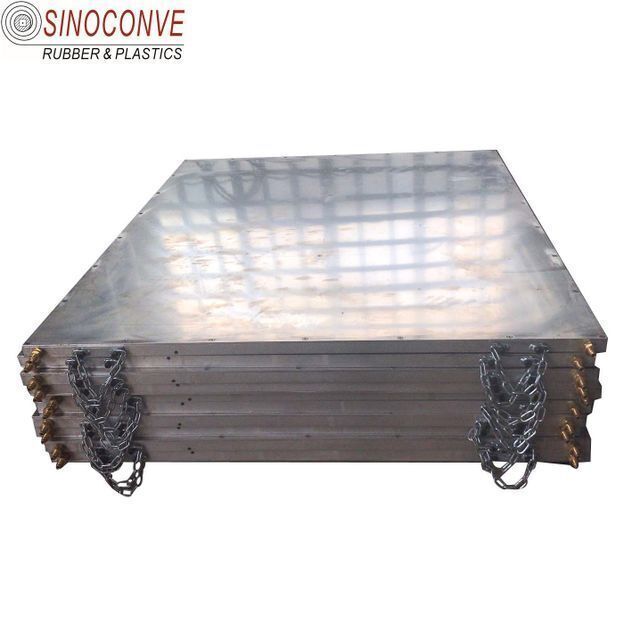

conveyor belt vulcanizing machine

Click here to contact

Product details

Brand Name:	sinoconve;	Type:	Vulcanizer;
Place of Origin:	Zhejiang China;	Packaging Detail:	wooden box package;
Cooling system:	water cooling;	After-sales Service Provided:	Online support;
Package Preview:	;	Weight:	910KG;
After Warranty Service:	Video technical support,Online support;	Showroom Location:	None;
Condition:	New;	belt width:	1200mm------2600mm;
Heating material:	Heater;	Marketing Type:	New Product 2020;
Core Components:	PLC,Pressure vessel,Pump;	Certification:	ISO9001;
Voltage:	380,380V;	Jointing length:	830mm;
Application:	Conveyor Belt Hot Vulcanizing Joint;	Tire Machine Type:	Tire Forming Vulcanizer;
Local Service Location:	None;	Payment Terms:	L/C,D/P,T/T,Western Union;
Video outgoing-inspection:	Provided;	Warranty:	1 Year;
Key Selling Points:	Easy to Operate;	Raw material:	aluminum alloy;
Dimension(LWH):	1970x830x725;	Year:	2019;
Port:	Ningbo/Shanghai;	Structure:	Horizontal;
vulcanizing temperature:	145℃;	Power (kW):	19.1;
Warranty of core components:	1 Year;	Applicable Industries:	Construction works ,Energy & Mining;
Machinery Test Report:	Provided;	Weight (KG):	900;

width of vulcanized belt--max	mm	1200
vulcanizing pressure	MPA	1.0-1.8 Mpa(adjustable)
vulcanizing temperature	℃	145(adjustable)
surface temperature of vulcanizing plate	℃	145+/-5
heating-up time (from normal temperature to vulcanizing temperature)	min	30
net weight	KG	900
Adjustable temperature range	℃	0-----200
Adjustable time range	min	0---60
Voltage	V	380/50
Overall sizes after assembled (LxWxH)	mm	1970×830×725
Power of control box	kw	19.1
Effective vulcanizing length	mm	830
Dimension of heating plate(LxW)	mm	1350×830
