belt vulcanizing press

Click here to contact

Product details

Key Selling Points:	Easy to Operate;	Weight (KG):	900 KG;
Local Service Location:	None;	Dimension(LWH):	1970x830x725;
belt width:	1200mm------2600mm;	Year:	2019;
After Warranty Service:	Video technical support,Online support;	After-sales Service Provided:	Online support;
Weight:	910KG;	Warranty of core components:	1 Year;
Structure:	Horizontal;	vulcanizing temperature:	145℃;
Condition:	New;	Marketing Type:	New Product 2020;
Video outgoing-inspection:	Provided;	Core Components:	PLC,Pressure vessel,Pump;
Type:	Vulcanizer;	Packaging Detail:	wooden box package;
Place of Origin:	Zhejiang China;	Power (kW):	19.1 kW;
Jointing length:	830mm;	Port:	Ningbo/Shanghai;
Machinery Test Report:	Provided;	Payment Terms:	L/C,D/P,T/T,Western Union;
Brand Name:	sinoconve;	Showroom Location:	None;
Package Preview:	;	Heating material:	Heater;
Certification:	ISO9001;	Tire Machine Type:	Tire Forming Vulcanizer;
Voltage:	380,380V;	Applicable Industries:	Construction works ,Energy & Mining;
Raw material:	aluminum alloy;	Application:	Conveyor Belt Hot Vulcanizing Joint;
Warranty:	1 Year;	Cooling system:	water cooling;

width of vulcanized belt--max	mm	1200
vulcanizing pressure	MPA	1.0-1.8 Mpa(adjustable)
vulcanizing temperature	℃	145(adjustable)
surface temperature of vulcanizing plate	℃	145+/-5
heating-up time (from normal temperature to vulcanizing temperature)	min	30
net weight	KG	900
Adjustable temperature range	℃	0-----200
Adjustable time range	min	0---60
Voltage	V	380/50
Overall sizes after assembled (LxWxH)	mm	1970×830×725
Power of control box	kw	19.1
Effective vulcanizing length	mm	830

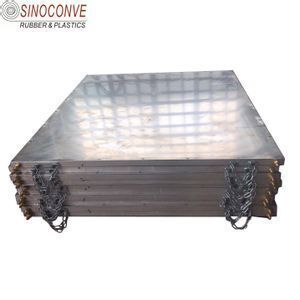

Dimension of heating plate(LxW)	mm	1350×830
