Stainless steel high temperature Laboratory Vacuum Oven

Product details
Voltage:220V/110V/380V;Type:Vacuum Drying Equipment;
Core Components:Pressure vessel;Warranty:1 Year;
After-sales Service Provided:Online support;Weight (KG):80;
Volume:0.9 cu ft (25 L);Vacuum Port:10mm hose barb (Optional KF25);
Condition:New;Application:Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
Heating Method:Electric Heating;Local Service Location:United States;
Single package size:68X55X53 cm;Max Leak Rate:< 0.01bar / hour;
Marketing Type:Ordinary Product;Packaging Detail:Individually packed in card board box, or other packaging upon buyer's request.;
Gas Inlet Valve:Stainless Steel 304 Needle Valve;Applicable Industries:Manufacturing Plant,Food & Beverage Shops;
After Warranty Service:Video technical support,Spare parts,Field maintenance and repair service;Evaporation Capacity(kg/h):25;
Dimension(L*W*H):69x49x45cm;Drying Capacity (kg):100kg;
Temperature Range:Up to 250°C;Chamber Material:Mirror Surface, Stainless Steel 304;
Material:SUS304;Chamber Dimension (D x H):30 x 30 x 27.5 cm;
Power:1400W;Machinery Test Report:Provided;
Single gross weight:53.0 KG;Certification:CE;
Gas Inlet Port:10mm hose barb;Warranty of core components:1 Year;
Place of Origin:Shanghai China;Brand Name:LAB1ST;
Key Selling Points:Long Service Life;End Vacuum Level:< 133 Pa (1 mmHg);
Video outgoing-inspection:Provided;Selling Units:Single item;
Timer:9999 minutes or hours;Showroom Location:United States;

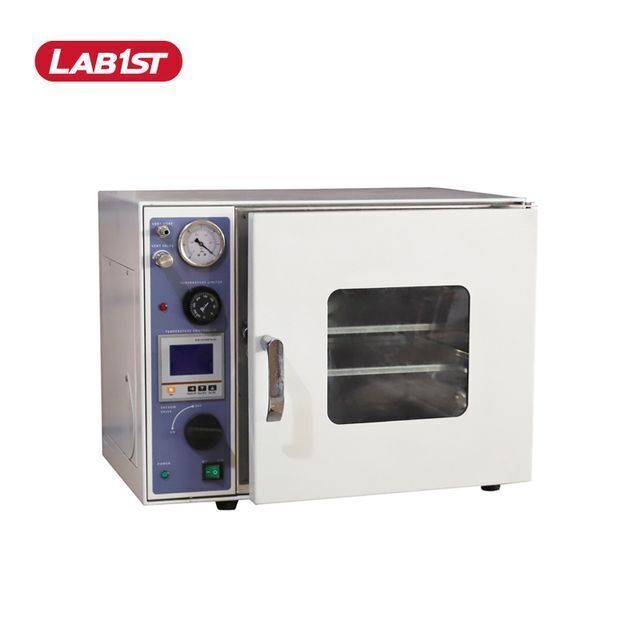

Stainless steel high temperature Laboratory Vacuum Oven



The VO-series vacuum ovens from LAB1ST are economical alternatives to those expensive vacuum drying ovens made in EU or US. We offers all digital forced air and vacuum drying oven, built with polished stainless steel interior, removable racks, overheat protection, inert gas inlet, temp calibration, timing and password functions. All ovens are CE compliant. We offer OEM and customization service.



Product Description





In a vacuum drying oven, the thermal processes occur in an airtight chamber where a desired level of vacuum has been applied using an external vacuum pump. With a vacuum oven the entire application can take place under vacuum or a controlled atmosphere can be created through the introduction of an inert gas. Vacuum ovens can help in the prevention of surface reactions (such as oxidation), decontaminating samples (removing lubricants for example) as well as for speeding up the out gassing process.



When determining the process you will use for a vacuum oven bear in mind that you will need to size a pump to meet this application. This requires defining the appropriate chamber size, the level of vacuum desired, and how quickly you will need to reach that desired vacuum level. Please feel free to call or email us to request any further assistance.



Photo Gallery


Product Features
  • New secondary over-temp protection with visual alarm
  • Fine tuning SS304 needle valve with graduation for accurate and repeatable inert gas/air backfill or chamber pressure control.
  • The standard oven can hold up to 5 plates. Contact us if you need more.
  • Easy-to-clean and corrosion resistant SS304 mirror surface internal vacuum chamber.
  • Intelligent temperature controller with advanced PID algorithm maintains high accuracy (+/- 1°F or 0.5°C) in a wide dynamic range of 480°F (250°C).
  • Temperature display can be switched between Celsius and Fahrenheit.
  • Electro-plated cast aluminum handle which is almost unbreakable.
  • Mechanical vacuum gauge with stainless steel 304 Bourdon tube provides more accurate reading, longer gauge life and minimizes shipping damage.
  • Double scale vacuum reading in bar and inHg.
  • We use aluminum plates, which has 12x better thermal conductivity than stainless steel.
  • Dual layer observation window with adaptive 1/2" tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation.
  • A thick layer of thermal insulation outside vacuum chamber for low energy consumption.
  • Electrical components are isolated from the inner chamber for the protection of user.
  • Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system.
  • Modular design for easy and cost-effective maintenance and future upgrades.
  • Built-in timer of 9999 minutes/hours.
  • All ovens come with one year warranty and lifetime components and service support.
  • Free phone and email customer support/consultation from our application engineers.



Specifications











Accessories
  • We offer different types of vacuum pumps: rotary vane oil pump, water-jet aspirator (chemically resistant), and PTFE diaphragm pump

  • Pump adapter, silicone vacuum hose, KF25 vacuum supplies, cold traps, etc.



Packaging & Shipping
  • All products will be carefully packed in wood crates or heavy duty card-board boxes, with proper cushion inside the package.
  • We will be responsible for any shipping damages (unless otherwise specified).
  • We ship to worldwide customers, via UPS, DHL, air freight or sea freight.
