Single phase 220V 200 Amp IGBT Inverter DC pulse TIG welder MMA ARC welding machine for stainless steel

Supplier: Taizhou Lemin Welding Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jack Ye
Price: $185.00 / 1 - 49 pieces
$176.00 / 50 - 99 pieces
$168.00 / 100 - 199 pieces
$160.00 / >=200 pieces
Min. Order: 1 piece

Click here to contact

Product details

Showroom Location:	None;	2T/4T TIG welding:	Available;
Pulse Tig welding:	Available;	Pulse Frequency:	50-60Hz;
After-sales Service Provided:	Online support,Free spare parts,Video technical support;	Arc Current:	24A;
Condition:	New;	Brand Name:	FengBao;
Single package size:	51X25X34 cm;	Voltage:	220V;
Place of Origin:	Zhejiang, China;	Selling Units:	Single item;
After Warranty Service:	Video technical support,Online support,Spare parts;	Warranty:	1 Year;
Pilot Arc Current:	20A;	Welding material:	Stainless/Carbon Steel/ Titanium/Copper;
Key Selling Points:	Multifunctional;	Technology:	IGBT Inverter;
Weight (KG):	11 KG;	Motor Type:	DC MOTOR;
Machinery Test Report:	Provided;	Rated Input Voltage:	230 V;
Rated Duty Cycle:	60%;	Max. Load Power Capacity:	7.1 KWkVA;
Output Current MMA:	20-160A;	Material / Metal Processed:	Carbon Steel,stainless steel;
Rated Input power(KW):	7.1kw;	Usage:	welding;
SPOT TIG welding:	Available;	Output Polarity:	DC TIG;
Certification:	CE;	Rated Output Voltage (TIG):	220 V;
Welding Current/Voltage Range:	20-200A;	Output Current TIG:	20-200A;
Rated Duty Cycle @40°C (TIG):	60%;	No-load Voltage:	60v;
Packaging Detail:	- All samples packed in honeycomb box wit polyfoam;	Single gross weight:	11.000 KG;
Marketing Type:	Hot Product 2019;	ARC START:	HF & LIFT STRIKE;
Dimensions:	382730cm;	Video outgoing-inspection:	Provided;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Construction works ;	Rated Output Current (TIG):	10-200A;
Local Service Location:	None;

Products Description

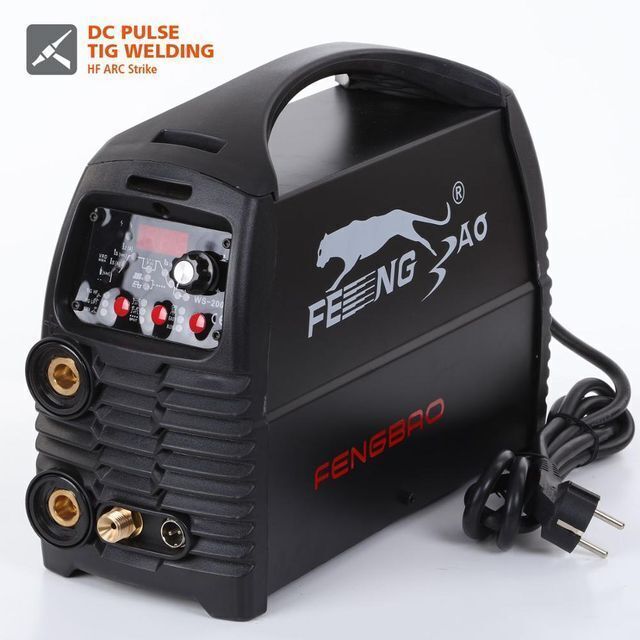

TIG-200 PULSE IGBT INVERTER WELDING MACHINE

This welding machine is a power source for arc welding, made specially for TIG DC welding with HF or LIFT strike and MMA wleding with coated electrodes (Rutile, acid, basic).

The particular features of this inverter welding machine, such as high-speed and precise adjustment, result in excellent quality welds.

Incorporating the latest EASY PULSE Technology is confirmed as the perfect solution for a wide range of applicatoins.

> Reaparing workshop
> Metral artworks
> Steel Constructions
> Light Industry

Becasue of its flexibility, the TIG DC welding is suitable for welding different materials:
> Low and High carbon steel
> Heavy metals
> Titanium

> Alloys
> Stainless steel

Details Images

MULTI FUNCTION, COMPACT DESIGN, EASY HANDLING

The inverter system of regulation at the power supply input (primary) also leads to a drastic decrease in the volume of both the transformer and the leveling reactance so that it is possible to build a considerably smaller, lighter welding machine, highlighting its advantages of easy handling and transport.

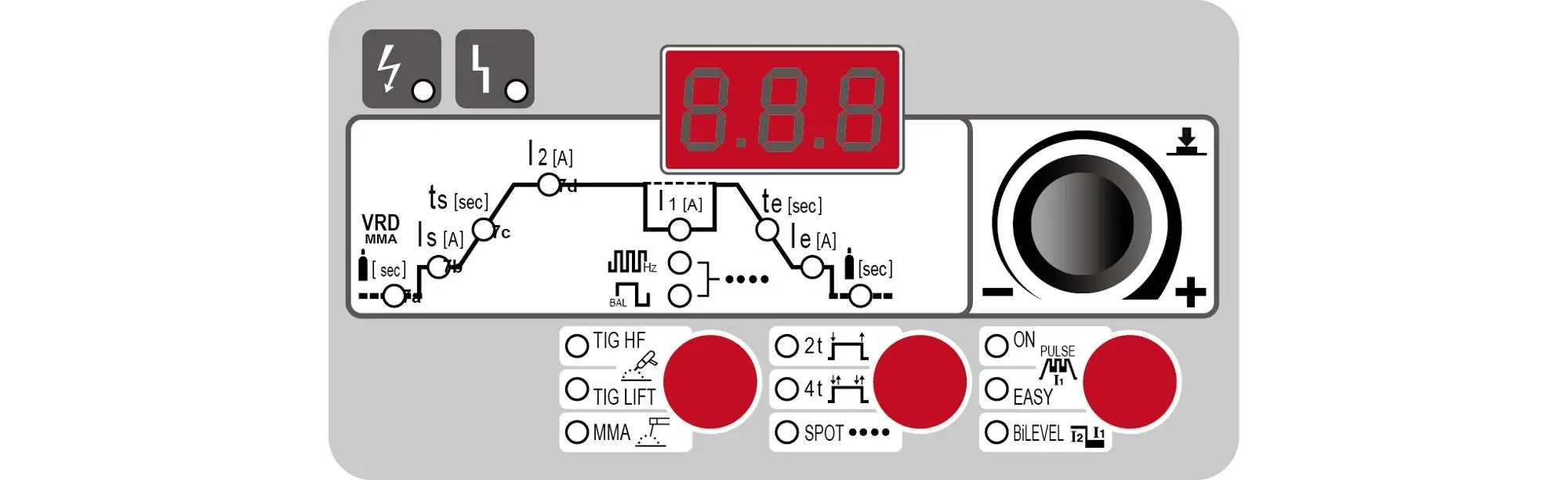

MULTI PROCESS OPERATING PANEL

When in the TIG mode, you can choose between pulsed (ON PULSE),automatic pulse (EASY PULSE), and Bi-LEVEL. None of these processes is active if the LED is off.

PULSE: manual pulse mode where the following parameters can be set: MAIN CURRENT (I2), BASE CURRENT (I 1 ), PULSE FREQUENCY AND BALANCE.

EASY PULSE automatic pulsed mode where only the MAIN CURRENT (I2 ) needs to be set. The other parameters, BASE CURRENT (I1 ), PULSE FREQUENCY and BALANCE, are adjusted automatically according to the preset values (I1 = 70% I 2,FREQUENCY = 2Hz, BALANCE = 0). These values can be modified.

The PULSE and EASY PULSE modes are indicated for welding thin material.

The more relative products you may like.

Click bellow picture for getting more information!

Product Paramenters

Product Model:	TIG-200 PULSE
Product Description:	IGBT INVERTER TIG/MMA INVERTER WELDING MACHINE
Rated Input Voltage:	1phase, 230V +/- 15%
Rated input Power:	7.2Kw
Frequency:	50/60Hz
No-load Voltage:	60V
Rated Duty Cycle:	40%
Effenciency:	85%
Class of Insulation:	F
Protection Level:	IP21
Power Plug:	20A
Output Current:	MMA/ARC/STICK	20-160A
		TIG HF/PULSE	20-200A
		TIG LIFT STRIKE	20- 200A
Function Support:	VRD	Available	FOR MMA ONLY
		HOT START	Available
		ARC FORCE	Available
		2T/4T WELDING	Available
		PULSE WELDING	Available
Size & Weight:	Product Dimension	430x235x300mm
		Poduct Weight	6.5Kg
		Package Dimension	510x250x340mm
		Package Weight	11Kg
Accessories:	Standard Accessories：	- 1x WP17 HF TIG TROCH with 3m cable
				- 1x 200A Electrode Holder with 2m cable
				- 1x 300A Ground Clamp with 2m cable
				- 1x Welding mask
				- 1x Chipping Hammer/Brush
				- 1x Manul Book
		Optional Accessories：	- WP17V LIFT TIG Torch with 4m cable.
		Optional Accessories：		- Storage Box
	* NOTE: the optional accessories is required extra cost, if you need them, please inquiry factory before placing order *

Why Choose Us

Quality & Engineering

DECAPOWER delivers consistent quality from our ISO9001 certificated manufacturing facilities that you can rely on every turn. Our application-spefic engineers and dedicated R&D team are able to tailor solutions for optimal performance and value.

Company Profile

OUR MANUFACTURER

TAIZHOU LEMIN WELDING EQUIPMENT CO., LTD is the manufacturer of DECAPOWER company group.

We're focusing on developing and producing reliable quality Inverter Welding Machines and Air Plasma Cutter with favorable price, such as MMA/ARC WELDER, TIG WELDER, MIG WELDER and AIR PLASMA CUTTER which has been approved by CSA, CCC, CE certificate.

CORE TARGET:

Tailor client's assortment products with innovation, competitive price and well presentation.

PEOPLE:

We're culturally diverse globally gained. Our Knowledge and Industry focused terms are driven to satify and exceed customer's expectations.

CULTURE:

Our "CAN-DO" and "YES.WHY NOT" philosophy defines DECAPOWER's global approach. Our customer-centric spirit makes it easy to work and being partner with us.

Exhibition

FAQ

1. Q: Are you a factory or trading company?

A: We're a group company including 4 factories and 1 offshore company. LEMIN is the professional manufacturer of producing welding machines and plasma cutter. If you need other items like Air compressor, we will introduce the professional salesman to you.

2. How many employees in your company?

A: Totally nearly 300 staff in our group company. There is 60 staff working in LEMIN factory.

3. Q: Where is your factory located ? How can i get there ?

A: Our factory is located Wenling City of Zhejiang Province, which is very near Ningbo and Shanghai.You can reach us very conveniently.

Wenling Train Station: 5mins by car
Taizhou Airport: 30mins by car
Ningbo Train Station: 1 Hour by fast train
Shanghai Train Station: 4 Hour by fast train

4. Q: What certificates do you have ?

A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.

5. Q: What's your delivery time ?

A: Usually, it will take 35 days after we confirming the sales contract and details.

6. Q: What kind of payment terms do you accept ?

A: T/T or L/C at sight.

7. Q: Can you do OEM ?

A: Yes. We offer OEM/ODM service.

8. Q: What's your warranty ?

A: We offer 12 month warranty period as the quality guarantee. Meanwhile, we will offer 1% free PCB or spare parts for customers maintanence with the shipment.
