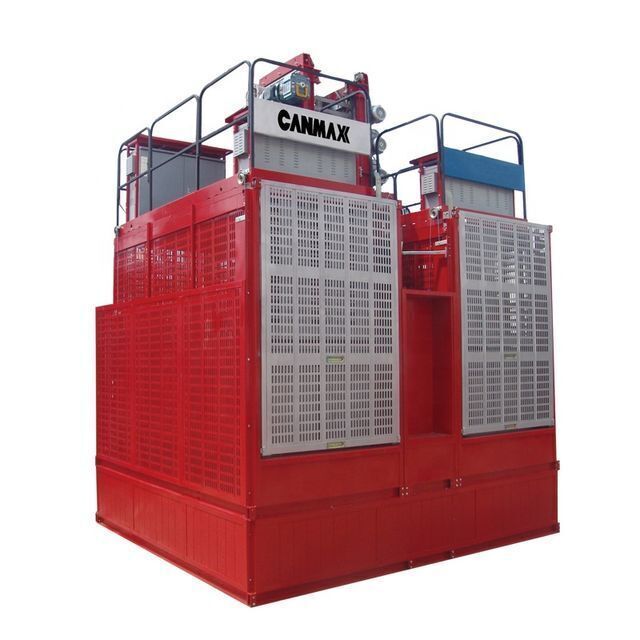

construction building hoist SC100x100 single double cage lift for passenger and material
-
Supplier: Shanghai Canmax Electronic & Mechanical Equipment Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Ryan Lee -
Price: $21600.00 / 1 - 4 units
$21000.00 / >=5 units -
Min. Order: 1 unit
| Packaging Detail: | Export standard packing, mast section nude packing, electronic parts are packed by wooden boxes.; | Max Lifting Height: | 120(450); |
| Condition: | New; | Color: | OEM; |
| Dimension(L*W*H): | 3.0*1.3*2.5m; | Place of Origin: | Shanghai China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Brand Name: | CANMAX; |
| Supply Ability: | 10 Unit/Units per Month; | Rated Loading Capacity(kg): | 1000 * 2Kg; |
| After-sales Service Provided: | Overseas service center available; | Port: | Any port in China; |
| Loder Weight: | 1000(2*1000)kg; | Hoisting Speed: | 0~33m/min; |
construction building hoist SC100x100 single double cage lift for passenger and material
* If you have special requirement on power, please state it when order the consignment.
* We can produce the cage and lengthen the tie-in according to the size the customer requested.
* We can heighten the erection height according to the customer’s request.
* “/” means the item does not exist.
Main technical data | Unit | Value |
Rated load | kg | 1000 |
Rated erection load | kg | 1000 |
Jib attachment rated load | kg | 300 |
Cage size | m | 3.0×1.3×2.5 |
Maximum lifting height | m | 250 |
Lifting speed | m/min | 33 |
Rated output | kW | 2×11 |
Voltage rating | V | 380/440 |
Rated frequency | Hz | 50/60 |
Rated current | A | 2×23.5 |
Power supply fuses | A | 63 |
Protective class | / | IP55 |
Load duration factor | / | FC-25% |
Safety device | m/s | 1.2 |
Enclosure weight | kg | 980 |
Cage weight | kg | 1750 |
Counterweight | kg | / |
Mast section weight | kg | 125/145 |
Mast section length | mm | 1508 |
-
