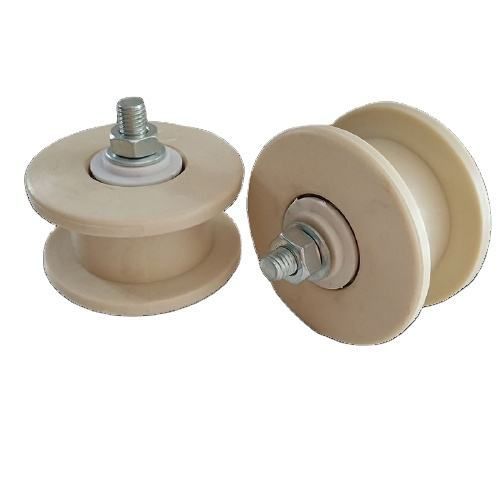

Passenger Hoist Cable Anti Roller Guide Roller Door Roller Nylon Wheel For Construction Hoist Spare Parts

Supplier: Beijing Go Higher Construction Machinery Co., Ltd.
Region: Beijing, China
Contact: Ms Star Yang
Price: $15.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Video technical support, online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services	Video outbound inspection:	if
Rated load capacity (kg):	2000	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
color:	Elective	Mechanical test report:	if
application:	building construction, bridge	Origin:	Beijing China
Voltage:	220V/380V/415V	Local service locations:	not any
Key words:	SC200 200 construction hoist	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	1000 sets per month	Unique selling point:	high operating efficiency
Dimensions (LWH):	31.52.5	electronic system:	Schneider products
brand:	Gohaier	Applicable industries:	Hotels, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Construction Engineering, Energy and Mining, Others
Lifting speed:	high load moment	Model:	SC200/200, SC300, SC100/100
Showroom location:	not any	Motor Power:	3*11kw
port:	Qingdao/Tianjin/Shanghai	Marketing Type:	normal product
Warranty:	3 years	Surface treatment:	Powder Coating/Hot Dip Plating
Health status:	new	Packaging Details:	Spare parts carton full set of suspended platform steel pallets;
custom made:	acceptable	Maximum Lifting Height:	400M
Core components:	engine	Core component warranty:	3 years
Mast part:	6506501508(mm) Weight: 146Kg Q345	Loader weight:	1T/2T/3T/4T

detailed picture

drive unit

Drive System

drive motor assembly

List of functions

Name	Model	Rated load (kg)	Lifting speed	Safety device type	Motor power (kw)	Inverter power (kw)
double cage	SC200/200	2*2000	0~36m/min	SAJ40-1.2	2311	2*37
				2*2000	0~40m/min	SAJ40-1.2	2211	2*37
				2*2000	0~53m/min	SAJ50-1.4	2213	2*45
				2*2000	0~63m/min	SAJ50-1.4	2311	2*75
				2*2000	0~96m/min	SAJ50-2.0	2318.5	2*110
single cage	SC200	2000	0~36m/min	SAJ40-1.2	3*11	37
				2000	0~40m/min	SAJ40-1.2	2*11	37
				2000	0~53m/min	SAJ50-1.4	2*13	45
				2000	0~63m/min	SAJ50-1.4	3*11	75
				2000	0~96m/min	SAJ50-2.0	3*18.5	110

1. Spare parts brands are available;
2. The working height can be adjusted according to customer needs.
3. The voltage conforms to the standards of various countries
4. Mast part:1) Steel 2) Galvanized

5. Mast section size: 650*650*1508, 1508*200

product configuration
