China factory automatic lift battery lift aerial work platform

Supplier: Shandong Belift Machinery Co.,ltd.
Region: Shandong, China
Contact: Ms Ellie Wang
Price: $3890.00 / 1 - 9 sets
$2900.00 / 10 - 29 sets
$2540.00 / >=30 sets
Min. Order: 1 set

Click here to contact

Product details

Battery:	2X12V/100AH	Elective:	remote control
Showroom location:	Canada, United Kingdom, United States, France, Indonesia, India, Russia, Morocco, Sri Lanka, Romania, Kazakhstan	strength:	direct current
Applicable industries:	Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies	Packaging Details:	Standard ocean shipping package.
Marketing Type:	New Products 2022	Video shipment inspection:	if
Safety Precautions Three:	Control valve	Rated load capacity(kg):	227 kg
Core component warranty:	1 year	Safety Precautions 2:	check valve
Mechanical test report:	if	port:	Qingdao Port, Shanghai Port, Ningbo Port, Guangzhou Port
place of origin; place of origin:	Shandong China	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
State of health:	new	After-sales service provided:	Engineers available to service machinery overseas
Core components:	PLC, engine, motor, water pump	Maximum lifting height:	3.6m / 4.8m
Lifting speed:	31 seconds	Supply capacity:	9999 sets per month
Unique selling point:	High operating efficiency	Warranty:	1 year
Input voltage:	110V 220V 240V 380V, 400V, customized	brand:	believe
Safety Precautions 1:	emergency lowering valve	Weight (kg):	810 kg
Travel Speed (Stowed):	4km/h	Loader weight:	227 kg
Certification:	CE/ISO9001/ROHS	Dimensions (LWH):	1.360.761.7m

CE certified 227kg self-propelled lifting mechanism vertical mast hydraulic lift supplier

Product Description

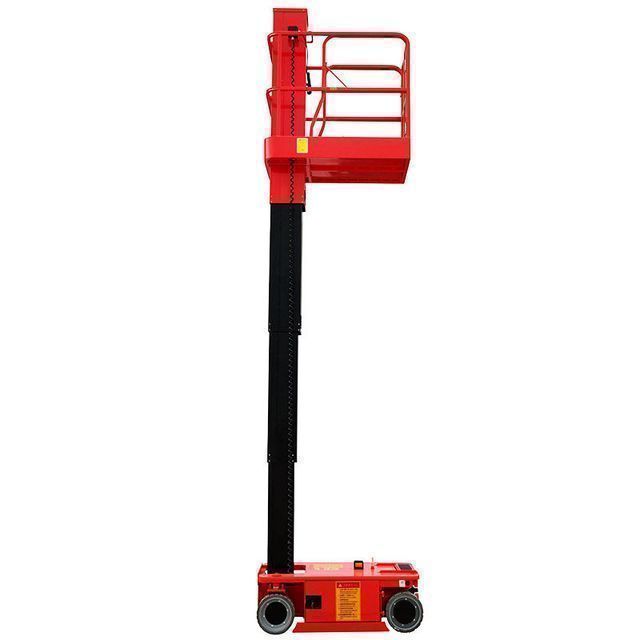

Blift brand high-endself-propelled vertical mastliftIt is a low-level access elevator with automatic walking, turning and lifting functions. it It is specially designed for indoor and outdoor high-altitude operations with low height and narrow space.

The self-propelled vertical mast lift travels at full height. Widely used in daily maintenance work such as supermarkets, warehouses, factories, stadiums, etc.

Specification

model.	ASWP-3.6	ASWP-4.8
platform height	3.6m	4.8m
working height	5.6m	6.8m
loading capacity	227 kg	227 kg
Scalable platform capacity	114 kg	114 kg
overall length	1.36m	1.36m
overall width	0.76m	0.76m
total height	1.7m	1.98m
platform size	1.3x0.7m	1.3x0.7m
Scalable platform length	0.51 meters	0.51 meters
wheelbase	1.04m	1.04m
inner turning radius	0 meters	0 meters
outer turning radius	1.4m	1.4m
travel speed (closed)	4km/h	4km/h
Travel speed (raised)	1.1km/h	1.1km/h
up/down speed	31/32 seconds	41.5/42 seconds
Gradeability	25%	25%
drive tire	Φ305X100mm
drive motor	2X24VDC/0.5KW
lift motor	24DC/1.3KW
Battery	2X12V/100AH
charger	24V/15A
weight	810 kg	980 kg
