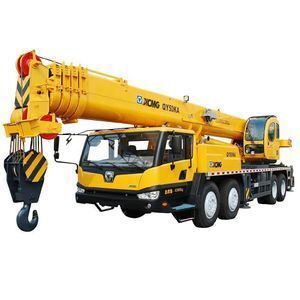

Top brand XCMG 50 tons hydraulic mobile truck crane QY50 QY50B QY50K QY50KA

Product details
Single gross weight:41000.0 KG;Certification:ISO;
Warranty:2000 HOURS,1 Year;Applicable Industries:Construction works ;
Marketing Type:New Product 2020;grade ability:0.42;
Machinery Test Report:Provided;Local Service Location:Peru,Indonesia,Algeria,Bangladesh,Uzbekistan;
Hydraulic Pump Brand:Bosch Rexroth;Single package size:1400X280X370 cm;
Engine rated power:276/2200kw/(r/min);Lifting Height:58.1;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;Hydraulic Cylinder Brand:Bosch Rexroth;
Span:6.9m;Showroom Location:Peru,Indonesia,Algeria,Uzbekistan;
Feature:TRUCK CRANE;Engine Brand:WEICHAI;
Engine Model:WD615.338;Core Components:Engine;
Hydraulic Valve Brand:Bosch Rexroth;Application:0-50ton;
Rated Loading Capacity:50ton;Condition:New;
Warranty of core components:1 Year;Video outgoing-inspection:Provided;
Packaging Detail:export standard packaging;Selling Units:Single item;
Brand Name:XCMG;Min. ground clearance:327mm;
Max. Lifting Height:57.7;Wheel base:2304+2075mm;
Min. turning diameter:24m;Engine rated torque:1500/1300-1600N.m/(r/min);
travel speed:0-85km/h;Rated Lifting Moment:1822kN.m;
Place of Origin:China;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;

Buying Guides

Top brand XCMG 50 tons hydraulic mobile truck crane QY50 QY50B QY50K QY50KA

Product Description

1.Leading lifting performance and traveling performance

2.Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry
3.Improved reliability of radiation and electric systems, safer lifting and driving operation
4.Air-assisting shift gears bring more comfortable operation
5.New upgraded outline and humanized design, more comfortable driving operation

Main Parameter

 Ⅰ.Main Technical Data Table in Travel configuration

Description Unit Parameter value
Overall length mm 13930
Overall width mm 2780
Overall Height mm 3630
Axle base 1st ,2nd axle mm 1470
2nd ,3rd axle 4300
3rd ,4th axle 1350
Wheel Base mm  2304+2075
Front overhang/rear overhang mm 2389/2064or 2376/2064
Front extension/rear extension mm 2131/226 or 2144/226
Total vehicle mass in travel configuration kg 42200
Axle load    Front axle kg 16200
Rear axle 26000
Engine Model   WD615.338
Engine rated power kw/(r/min) 276/2200
Engine rated torque N.m/(r/min) 1500/1300-1600
Max. travel speed km/h 85
Min. steady travel speed km/h 2~3
Min. turning diameter m 24
Min. ground clearance mm 327
Max. grade ability % 42
Approach angle ° 19
Departure angle ° 15
Braking distance (at 30 km/h, full load ) m ≤10
Oil consumption per 100km L 40
Exterior noise level during acceleration traveling dB (A) ≤88
Noise level at seated position dB (A) ≤90

Ⅱ.Main Technical Data Table for Lifting Operation

+
Max. total rated lifting capacity t 50
Min. rated working radius m 3
Turning radius at turntable tail mm 3800
Max. load moment Base boom KN.m 2009
Fully-extended boom 1129
Outrigger span Longitudinal m 6.1
Lateral 7.1
Hoist height Base boom m 11.9
Fully-extended boom 44
Fully-extended boom + Jib 58.1
Boom length Base boom m 11.4
Fully-extended boom 43.5
Fully-extended boom + Jib 59.5
Jib offset angle ° 0, 15, 30
Time for boom raising s ≤40
Time for boom extending fully s ≤90
Max. slewing speed r/min ≥2.0
Outrigger extending and retracting time Outrigger Extending s ≤35
beam Simultaneously
  Retracting ≤30
  Simultaneously
Outrigger Extending ≤40
jack Simultaneously
  Retracting ≤35
  Simultaneously
Hoisting speed Main winch No load m/min ≥130
single line Auxiliary winch No load ≥130
Exterior noise level dB (A) ≤118
Noise level at seated position dB (A) ≤90
Packaging & Shipping

We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

Company Information

Our factories have passed the certification of relevant organizations.

For example, ISO, CNAS, IAF and so on.

Products have also passed CE, GHOST certification and so on.



Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.



We have received more than 1000 clients and training engineers from more than 100 countries around the world.
