Water Pump Automatic Pressure Switch water pump pressure controller

Product details
Certification:CE;Supply Ability:20000 Piece/Pieces per Month;
Packaging Detail:Neutral export carton for Water Pump Automatic Pressure Switch;Port:shanghai/ningbo;
operating temperature:0-55;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;
Max. Current:12A;Brand Name:bingo;
Max. Voltage:110/230V;Place of Origin:Shanghai China;
Max. Working Pressure:10Bar;protection grade:ip 65;
Whether the smart:Yes;rated current:12A;
rated voltage:110/230V;Model Number:PS-WE10;
Main Recommend
Product Description

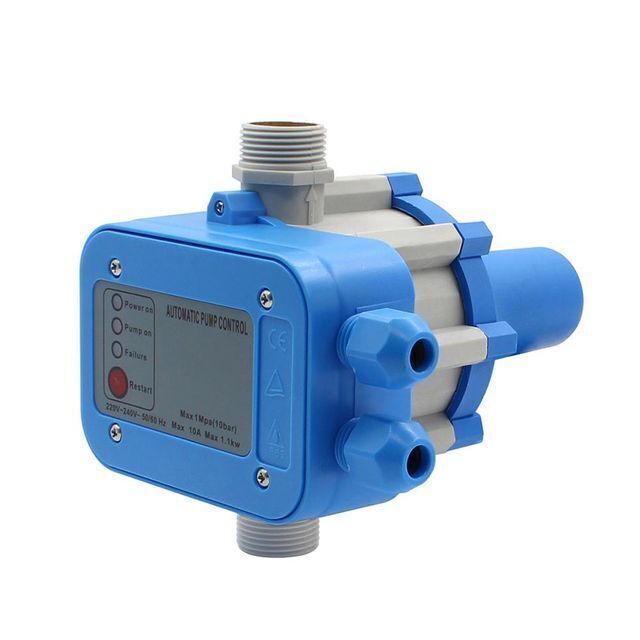

Water Pump Pressure Controller

Automatic pump controller Water pump electronic pressure controller can replace the complicated installations of automatic water pump. It has the features of stable performance, low maintenance and long lifespan.


1). Electric switch used in water systems.

2). It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed).

3). Starting pressure is adjustable during installation, adjustment range: 1.0bar-3.5bar.

4). Joint screw: G1"male.

5). Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.

6). Stop the water pump in the case of water shortage.

7). Automatic reset after a stop caused by dry running, standard time-interval 60min/1 test.

8). Customized setting.

Detailed Images

Panel.

CE, TUV Certificate, IP65.

Installation interface.

Threaded interface,easy to install,firm and watertight.

Brand new engineering plastics.

ROHS certificateDifferent color available.

Wire connection port.

With rubber sleeve,sealed interface,waterproof design.

Installation instruc

Vertical installation, arrows indicate the flow of water.

Product parameter
Model
PS-WE10
Medium
water
Starting pressure
1.0bar, 1.2bar, 1.5bar or 2.2bar
Max.pressure
10bar
Power
1.1KW(220V-240V),0.75KW(110V-120V)
Electric rating
10A; 110V-120V or 220V-240V, 50/60Hz
temperature
Max.60℃
Connection
G1"
Protection grade
IP65
Size
228mm*169mm*167mm
Relevant Model

Other type we can supply.

PS-WE10

PS-WE13

PS-WE14

PS-WE15

PS-WE16

PS-WE20

PS-WE21

PS-WE22

PS-WE23

PS-WE24

PS-WE30

PS--WE40
