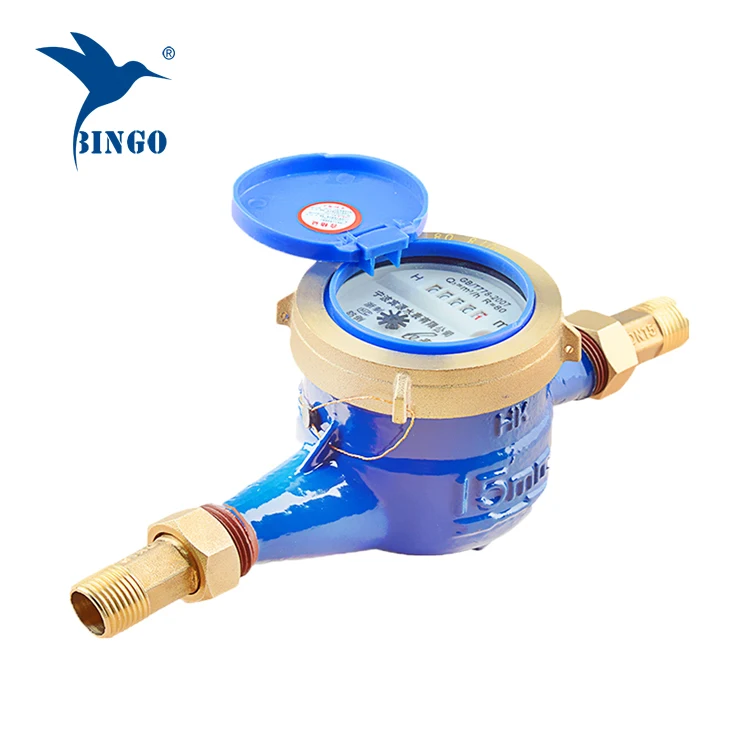

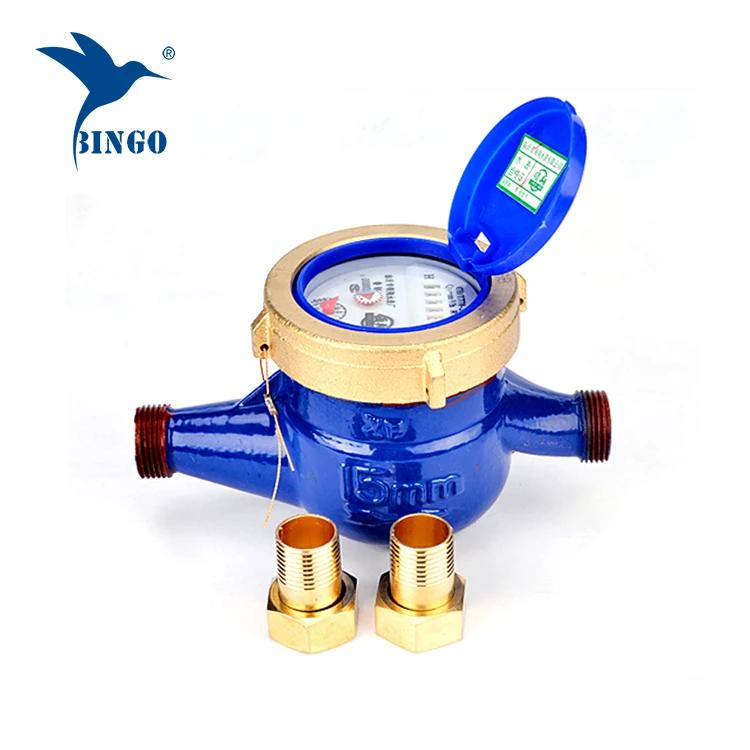

Brass gauge rotary vane Multi jet cold water meter with high quality

Supplier: Wenzhou Bingo Imp. & Exp. Co., Ltd.
Region: Shanghai, China
Contact: Mr Daniel Hu
Price: $7.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CE ISO;	Water pressure:	1Mpa (1.6MPa;
Product name:	Water meter;	Color:	Blue;
Supply Ability:	5000 Case/Cases per Month;	Material:	brass;
Packaging Detail:	normal packing;	Size:	DN15~DN50;
Port:	ningbo or shanghai;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Model Number:	WM001;	Name:	water gauge;
Brand Name:	Bingo sensor;	Place of Origin:	Shanghai China;
Type:	Multi-jet meters,Turbine meters;	Certification:	UL;

Feature:

1.Magnetic drive, protected against external magnetic tampering;
2.Vacuum sealed register, frost resistant, keeps clear reading for long time;

3.Brass body can be painted
4.External adjusting device,;
5.For cold water;
6.Remote transmission device can be added upon request
7.Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request 8.Pulse output may be 1l/pulse ,10l/pulse ;
9.The meters conform to ISO4064 Standard Class B

Working condition:

Available for cold water 0~30℃ and hot water30℃~90℃

Water pressure≤1MPa

(PN:1.6MPa/16bar)

Accuracy:

From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%

From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
