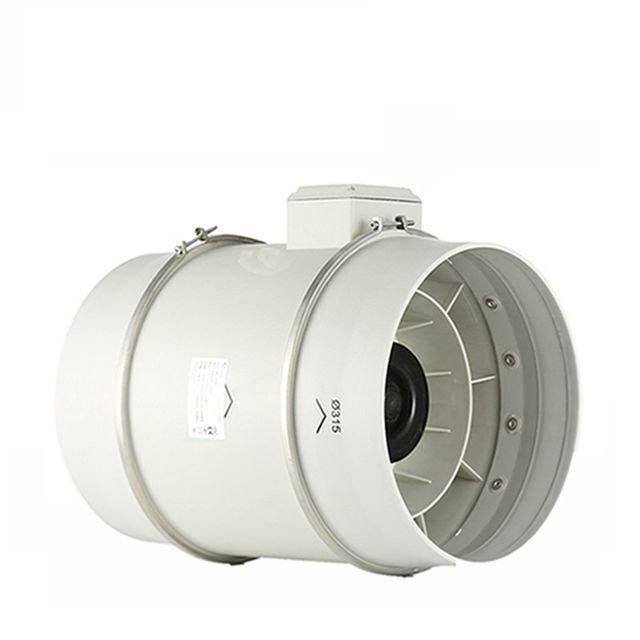

Hydroponic 4 6 5 8 10 Inches Mixed Flow Inline Duct Fan for Grow Tent Silent Extractor Fan

  • Supplier: Ningbo Hseng Electrical Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr Alan Han
  • Price: $15.89 / 100 - 499 pieces
    $13.86 / 500 - 999 pieces
    $12.56 / >=1000 pieces
  • Min. Order: 100 pieces
Click here to contact
Product details
Voltage:115 / 230(V);Avg. dBA@3m:29/33;
Item Name:plastic inline duct fan;After-sales Service Provided:Engineers available to service machinery overseas,Video technical support;
Place of Origin:Zhejiang China;Type:Centrifugal Fan;
Air Pressure (Pa):240/300;Mounting:Duct Fan;
Brand Name:ELMAK&OEM;Life time:up to 50,000 hours;
Packaging Detail:Standard Export Package;Payment Terms:L/C,D/P,D/A,T/T,MoneyGram;
Other name:Round Duct Fan;Electric Current Type:AC;
Supply Ability:100000 Piece/Pieces per Month;Port:NINGBO;
Power (W):48/54; 53/65;Certification:CCC,ce,RoHS,SAA;
Blade Material:Plastic;

Product Description



Product Features:

1.The shell is made of polypropylene plastic, one-time

disposable molded, with high anti-acid function.



2.Using ABS blades, design by hydromechanics to reach the optimal air and pressure.



3.Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.



4.IP44 Protection class, waterproof and dustproof more effective.



5.Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.



6.Run the ambient temperature range: -20°C~60°C.

Performance Parameter:

Model Gear Voltage/Frequency Current Power Speed Weight Air Flow Air Pressure Avg. dBA@3m
(Amps) (W) (RPM) (Kg) (M3/H) (Pa) (db)
HF-100
(4")		 H 230V/50Hz 0.12 26 2200 2.0 198 156 31
L 0.11 23 1850 165 131 26
H 115V/60Hz 0.26 30 2200 198 156 31
L 0.24 28 1850 165 131 26
HF-125
(5")		 H 230V/50Hz 0.14 33 2250 1.8 284 159 31
L 0.13 28 1850 248 106 26
H 115V/60Hz 0.30 32 2250 284 159 31
L 0.26 27 1850 248 106 26
HF-150
(6")		 H 230V/50Hz 0.24 54 2550 2.7 530 300 33
L 0.21 48 1850 410 240 29
H 115V/60Hz 0.58 65 2550 530 300 33
L 0.49 53 1850 410 240 29
HF-200
(8")		 H 230V/50Hz 0.57 128 2450 4.9 840 352 63
L 0.52 123 1950 690 274 55
H 115V/60Hz 1.41 162 2450 840 352 63
L 1.28 146 1950 690 274 55




+

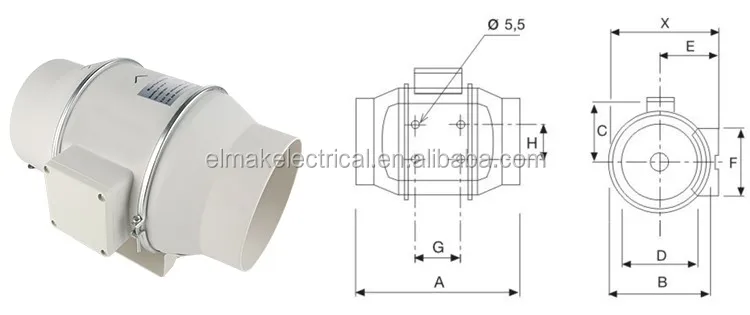

Model X A øB C øD E F G H
HF-100 188 303 176 115 97 100 90 80 60
HF-125 188 258 176 115 123 100 90 80 60
HF-150 212 320 200 127 147 112 130 80 60
HF-200 232.5 302 217 141 197 124 140 100 94

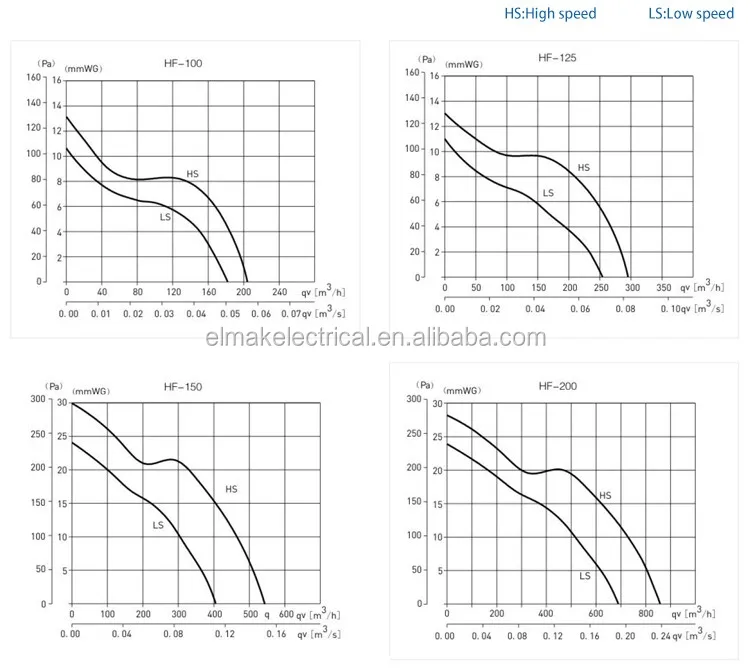

Performance Curves

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.

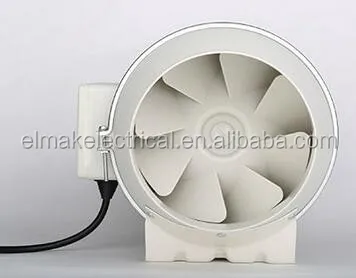

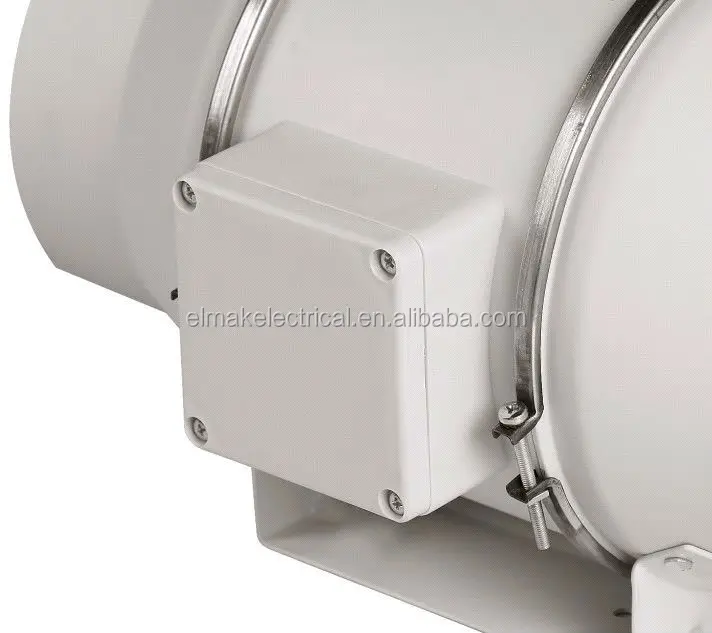

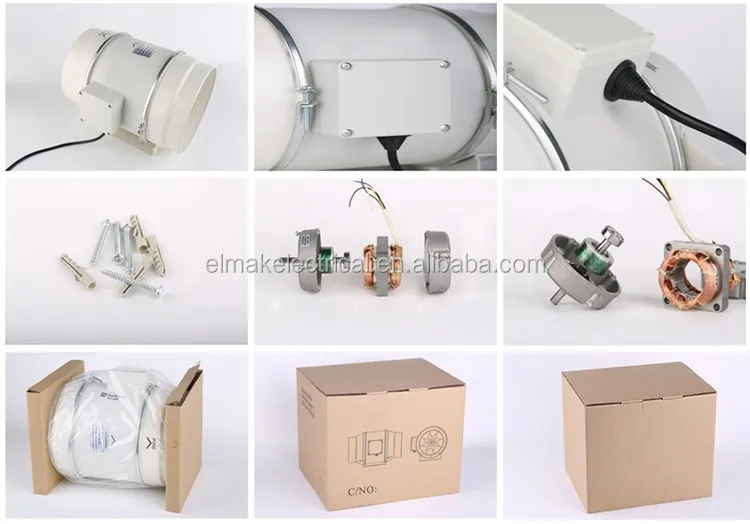

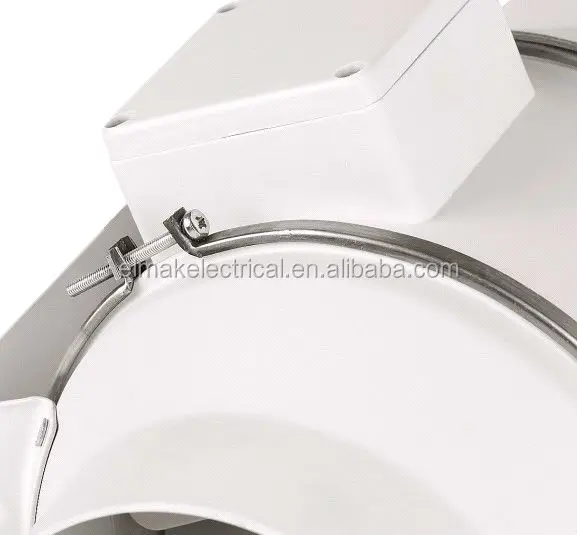

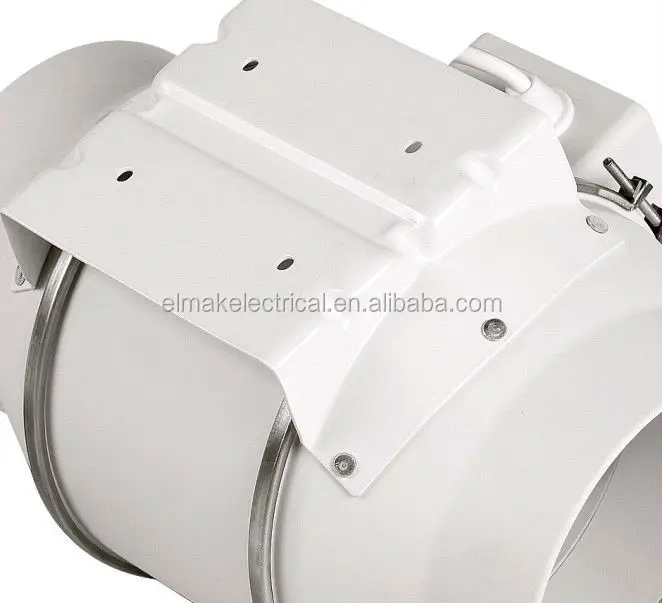

50mm TIMER Low Noise Mixed Flow Inline Bathroom Extractor Fan Round Duct Fan Photo Gallery (Various angles):

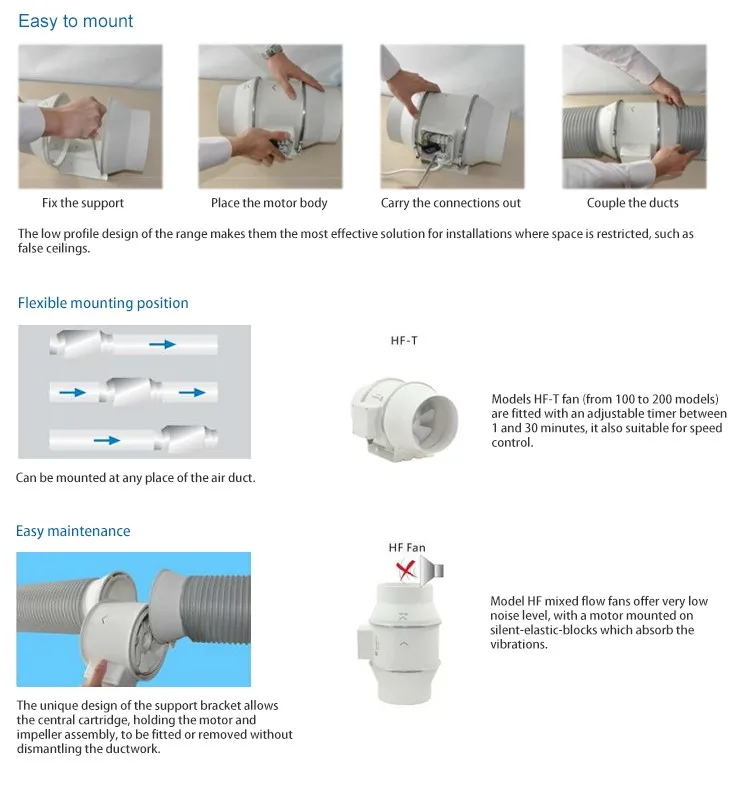

Installation and Maintenance

Packaging & Shipping





Company Information
Company Information



WHO WE ARE

We’re a team of people with strong experience and a leading supplier in electrical industries.

We’re making a difference in those industries by providing wholesalers, retailers and ultimately consumers with quality, innovative products for Switches & Sockets, Circuit Protection, Ventilation and lighting products.



As a company located in Ningbo, we are proud of our product development in electrical industries for your high standard demand and we are confident we can work together as partners to support your business with our range of electrical accessories.



FLEXIBILITY STANDS US APART

The flexibility to source, design and produce innovative electrical products keeps us ahead of our competitors. It means we’re able to innovate with new products development for your continuous demand. It means we’ll continue to apply our flexibility to all the markets we compete in.



NOW & IN TO THE FUTURE

The Elmak commitment to customers and suppliers is reflected in our expanding national representatives network. Our investment in two purpose built logistics and lay the foundation for future growth.Investment in our supply chain is considered imperative to ensure our service is second to none in the market. We are proud to bring high levels of customer service to customers from all over the world.
