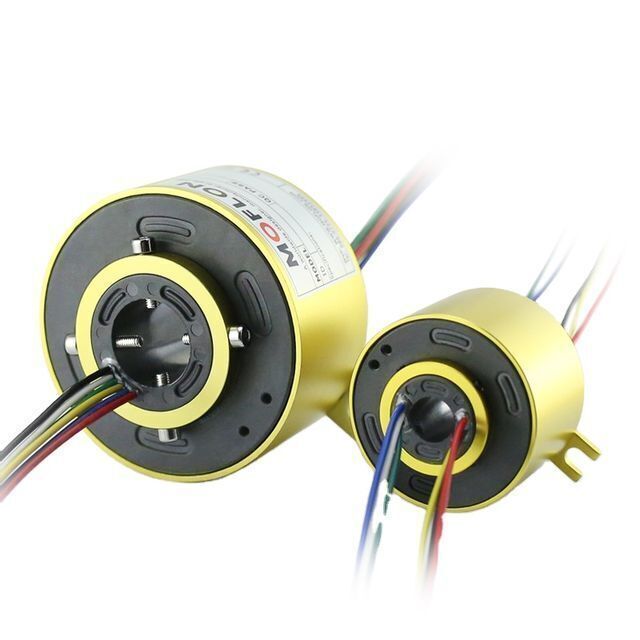

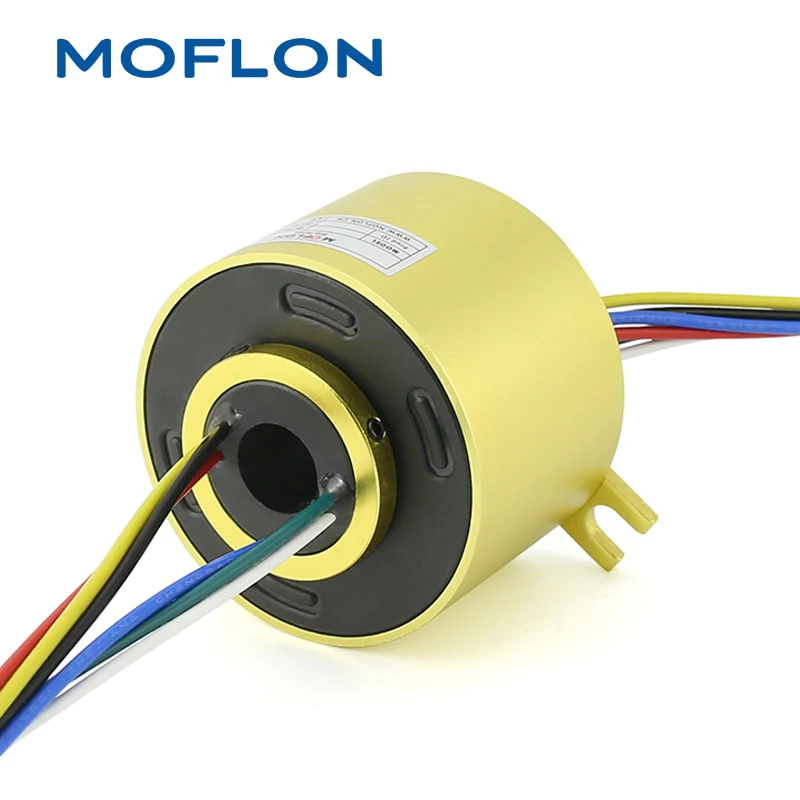

MT1233-S06 Rotating Electrical Connector Electrical Through Bore Slip Ring Through Hollow Slip Ring Price ID12.7mm OD33mm

  • Supplier: Shenzhen Moflon Technology Co., Ltd.
  • Region: Guangdong, China
  • Price: $95.00 / 2 - 9 pieces
    $75.00 / 10 - 49 pieces
    $65.00 / 50 - 99 pieces
    $40.00 / >=100 pieces
  • Min. Order: 2 pieces
Click here to contact
Product details
Working Temperature:-40℃~80℃;Place of Origin:Guangdong China;
Dielectric Strength:200VAC@50Hz,60s;Total Circuits:6 rings,5A/ring;
Brand Name:MOFLON;Model Number:MT1233-S06;
Single package size:15X15X10 cm;Rotating Speed:Max 250RPM;
Type:Through bore slip ring;Torque:0.2N.m;+0.01N.m/6ring;
Single gross weight:0.5 KG;Working Life:10 million revolutions;
Packaging Detail:standard packing;Operating Humidity:0~85% RH;
Selling Units:Single item;Rated Voltage:0~240VAC/VDC;
Contact Material:Precious Metal:Gold-Gold;Lead Wires:5A, AWG22#Teflon;
Why Choose Us
Welcome to Shenzhen Moflon Technology Co., Ltd.

Intuitive, Innovative, Slip Ring Solutions Offer

An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and other end-users.

Here at MOFLON, we have the privilege to work with and provide high perforamce slip ring solutions to some of the largest and most successful companies in the all kinds of Industry.

Let the team at Moflon prove their value in the successful launch of your next critical project.
About MOFLON
With over 30 years manufacturing and 15 exporting experience, our experienced engineers, production and QA QC team effectively ensure the advanced and practical products.

Work With Moflon, Work With Confidence Knowing Our Reputation

Our Advantage:
Products Description
MT Series Through Hole slip Ring Main Features
Through hole slip ring also called hollow slip ring with centre hole. it mainly apply to the devices where requires to transmit precise signal, weak current, large current, high voltage.

The main features:
* Advanced precious multi-point contact brush technology ensures reliable contact with low friction * Metal housing for better protection * Integrated structure design, easy installation * Hole size from 3mm to 300mm optional
* Standard item in stock
* Golden ring+Alloy steel brush(Golden)
* Support combined power and signal transimtion * Standard current: 0~20A,Standard voltage: 0~690VAC/VDC * Circuits No.: 0~300 circuits optional; * Customizations acceptable for circuits no. , current& voltage based on standard models;
MT Series Models
Model#
ID
(mm)
OD
(mm)
Circuits
(Ring）

Model#
ID
(mm)
OD
(mm)
Circuits
(Ring）
MT0317
3
17
1-8

MT3899F
38.1
99
1-72
MT0522
5
22
1-15

MT50119
50
119
1-108
MT0724
7
243
1-12

MT50119F
50
119
1-108
MT0729
7
29
1-12

MT 50130
50
130
1-144
MT1233
12.7
33
1-12

MT60130
60
130
1-108
MT1242
12.7
42
1-12

MT80158
70
158
1-108
MT2042
20
42
1-12

MT90158
70
158
1-108
MT1256
12.7
56
1-48

MT90185
90
185
1-108
MT1256F
12.7
56
1-48

MT100185
100
185
1-108
MT1286
127
86
1-96

MT120215
120
215
1-108
MT2069
20
69
1-48

MT150248
150
248
1-108
MT2069F
20
69
1-48

MT180298
133
298
1-108
MT2586
25.4
86
1-72

MT20345
200
345
1-108
MT2586F
25.4
86
1-72

MT210345
210
345
1-108
MT25119
25.4
H9
1-144

MT250398
250
398
1-108
MT3099
30
99
1-72

MT300476
300
476
1-108
MT3899
38.1
99
1-72





60% of MOFLON's sales are customized solutions, please contact customer service for special requirements.

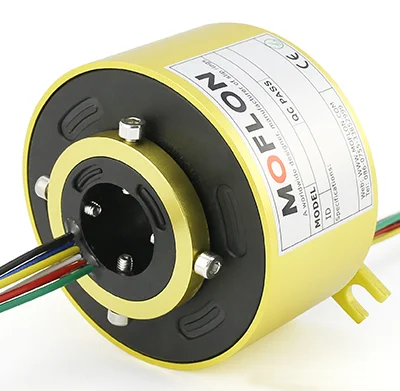

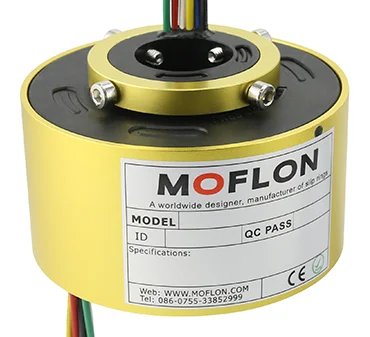

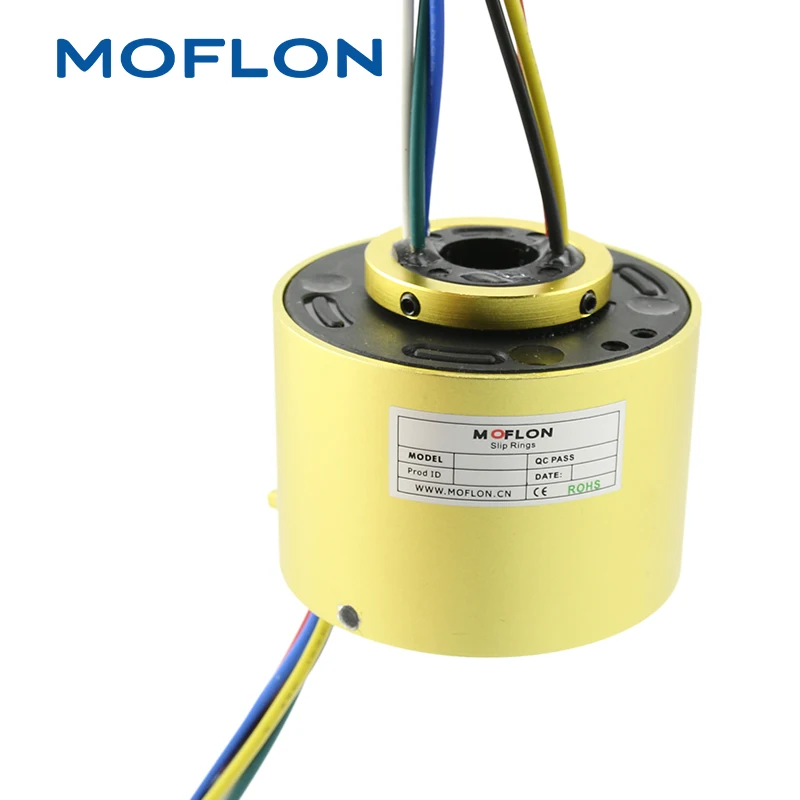

MT1233 Series Bore size 12.7mm, OD 33mm - Rotary Electrical Connectors
MT1233 series provides a 12.7mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 33 mm outside diameter, features long life, fiber brush contact technology for ultimate performance in many challenging applications.

MT1233 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. It can transmit signal(2A), 10A, multiple 10A current when 360° degree free rotating.Max rotating speed :250RPM, 600RPM,1000RPM(optional);

Standard product, stocks available
Customization available to combine power/signal transmitting

Integrated structure design, easy installation.

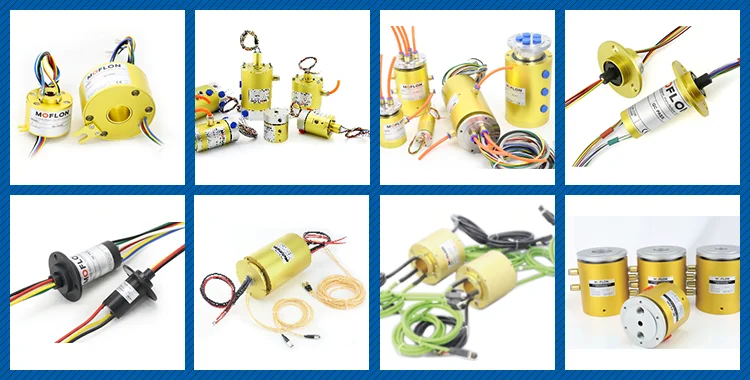

MT Through Hole Slip Rings
MOFLON MT2586 series through hole slip ring,hole size 25.4mm(suitable for shaft≤25.4mm),OD 86mm,housing material can be use plastic, aluminum alloy or stainless,is ingergal precision slip ring。It can stably transmit 2~36 circuits power circle(0-10A) or 2~72 circuit Signal circle(0-5A)
Excellent Technology for 15 years
Moflon specializes in manufacturing 360°rotating slip rings for 15 years
Redefining Cost Performance
Using advanced precious metal cluster brush multi-point contact, the reliability of contact can be guaranteed even under extremely low friction
Imported Raw Materials
Hard and wear resistant pressure, high temperature resistance, corrosion resistance, anti-aging
International Standard Quality
Always adhere to the most demanding military quality requirements, and implement the essence of German industrial process
standards
MOFLON Strength
How a high-quality lever slip ring supplied by Moflon

A well-known manufacturer incl. R&D/Production/Sales, with 7,000㎡ own factory and over 300 employees. Main staffs have over 10 years of related technical experiences

R & D/Production/Quality/Innovation/Service

Since founded. We believe quality and innovation are the life of our enterprise. We pay high attention to R&D, Raw Materials, Production, QC and After Sales Service for providing good products and services.
R & D
Moflon has a strong R & D team with 20 engineers over 10 experiences in this industry, have successfully developed more than 10,000 projects .

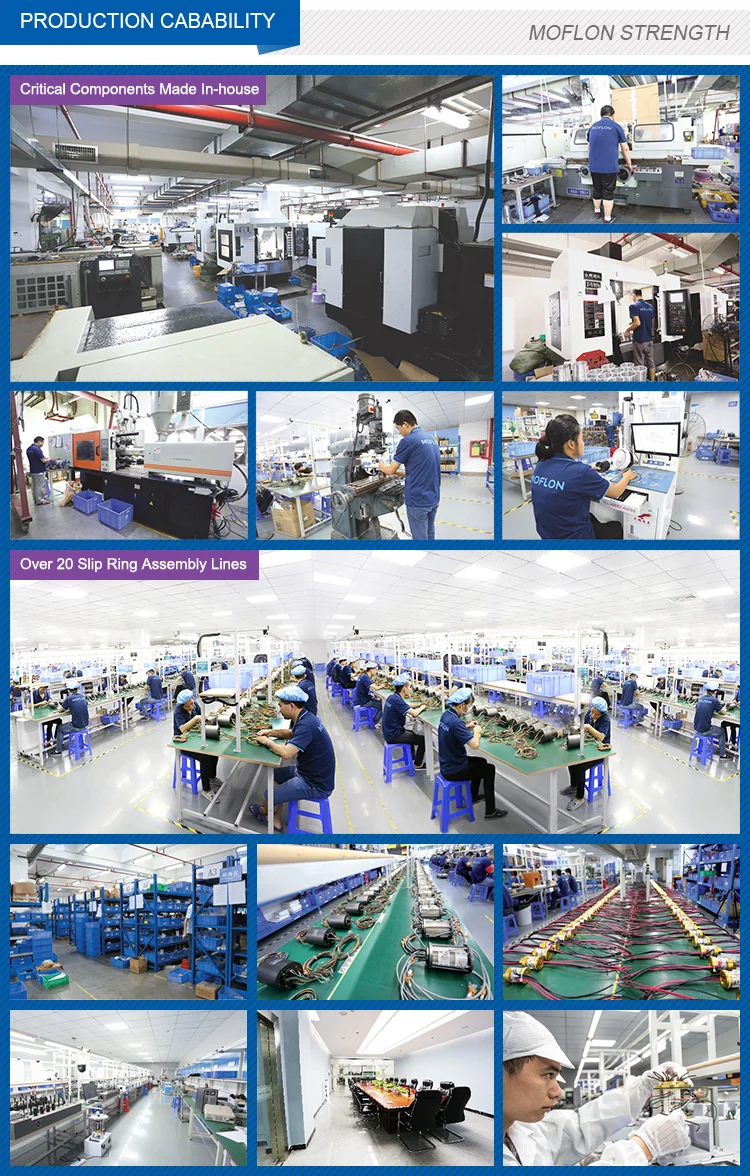

Production Capability
We have our own plastic injection factory and machining center, all the critical components made in-house, there are more than assemlby lines in our factory , which guarantee raw material internal control and the fast supply for your desired silp ring.

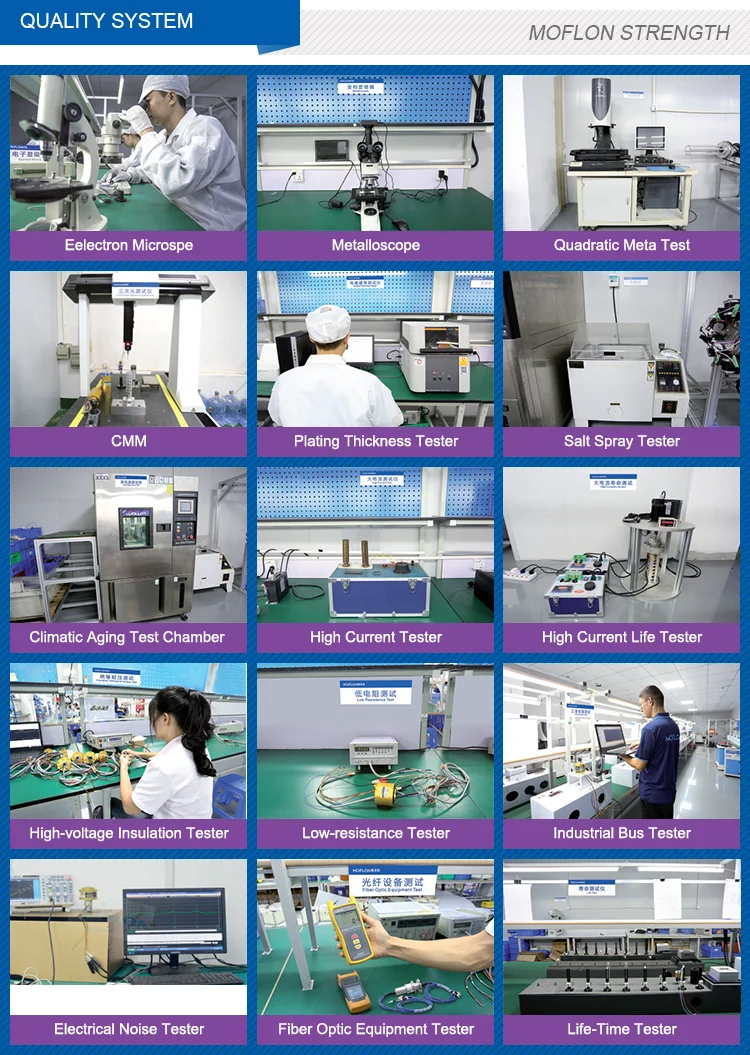

QA & QC System
There are more 15 steps QC process for your each slip rings in here.
Moflon is the only chinese comapny with level-5 slip ring testing laboratary.
Application & Project

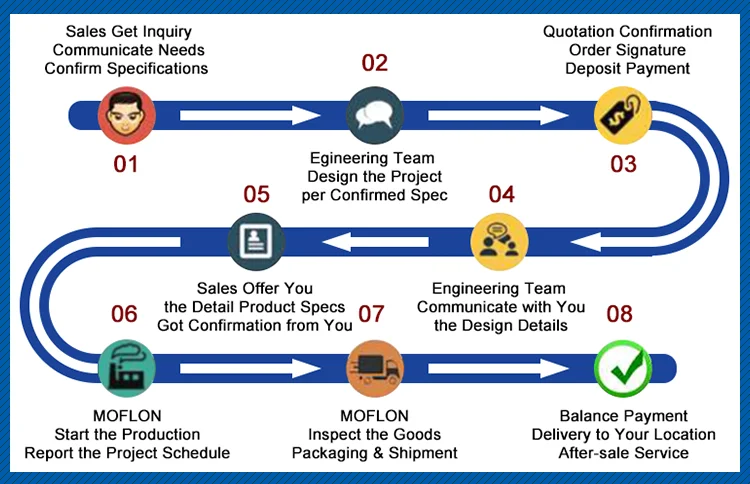

Service Process
Whatever Your Challengs, We Should Talk.
Success in project using slip ring technology means overcoming challenges in every area of your business. Challenges in design, production, cost control, delivery—the list goes on.
Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.
We can help you achieve improved performance while reducing your overall costs
Exhibition & Customer
Packaging & Shipment
FAQ
How to customize the slip rings?
1. What kind of media do you wanna to transmit?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?

4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
