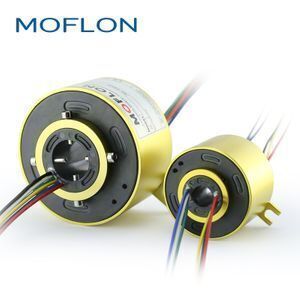

Through bore electrical slip ring 25.4mm with 2~12 circuits

Through bore electrical slip ring 25.4mm with 2~12 circuits

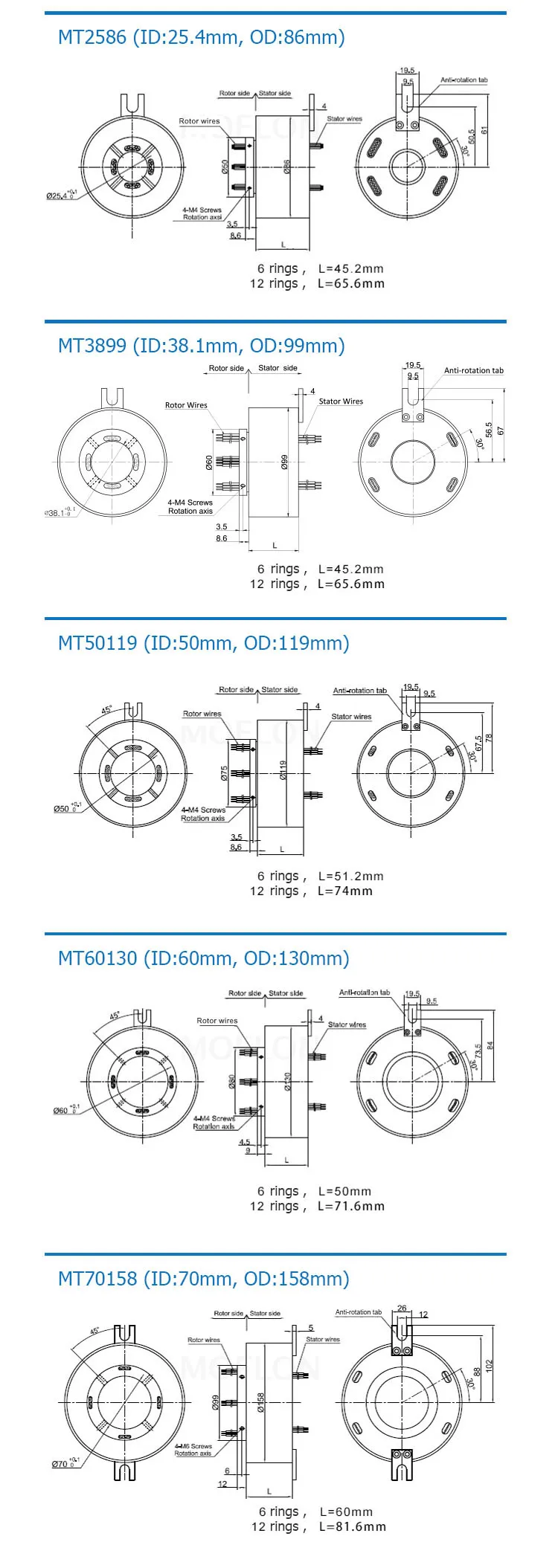

MT2586 series provides a 25.4mm through-bore for routing of hydraulic or pneumatic lines or hydraulic or pneumatic rotating shaft installation, and a compact 86mm outside diameter,features long life, fiber brush contact technology for ultimate performance in manychallenging applications.

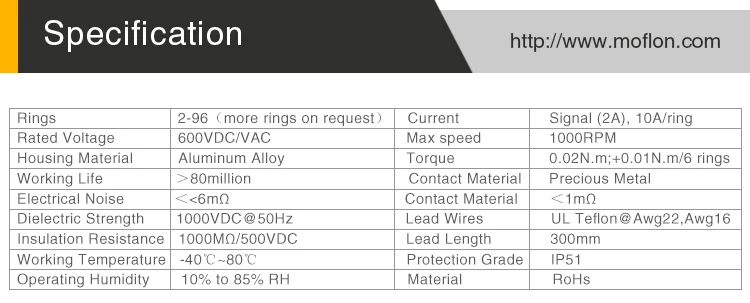

MT2586 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current when 360° degree free rotating.

How to customize the slip rings?

1. What kind of media do you wanna to transmit?

A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:

a. Total wires? The max current of each wire?

b. How many circuits for signal? The frequency and signal type?

c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:

a. What's gas do you need to transmit? Is air?

b. How much pressure?

c. What's size of each port? is G1/4"?

d. What is the maximum torque of slip ring that you can accept?

e. How to install? shaft mounting? flange mounting?  end of shaft mounting?

4. For Ethernet, the details should be provided as below:

a. 1000M or 100M?

b. Total wires? The max current of each wire?

c. How many circuits for signal? The frequency and signal type?

d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:

a. Total wires?

b. Connector type?

c. Type of fiber optic?

d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
