Product details
Size:850*570*1200(mm);Display:LED/LCD;
Capacity:1KW to 100KW;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Output Voltage:110/220/380/400/415V;Transfer time:≤4ms Automatice Transfer;
Model Number:TFT;Input Voltage:384V;
Input voltage range:322-480V;Input voltage:24V to 384V;
Type:DC/DC Converters,DC/AC Inverters;Certificate:ISO, ETL, TUV, CE, RoHS;
Colour:White;Recharge current:20-25A;
Port:Foshan;Place of Origin:Guangdong China;
Output wave:pure sine wave;Output Frequency:50/60HZ;
Supply Ability:500 Piece/Pieces per Month examine the speific plant;Transfer efficiency:85-87%;
Weight:3KG~300KG;Packaging Detail:wooden case,plywood box Grid Tie 1KW 2KW 3KW 5KW 6KW 8KW 10KW 20KW 30KW 50KW 100KW 100KVA Three Phase Solar Inverter With UPS function;
Inverter Efficiency:85-87%;Output Type:Single,DUAL,Triple;
Warranty:10year;Brand Name:TANFON;
Empty-load current:0.02A-0.03A;

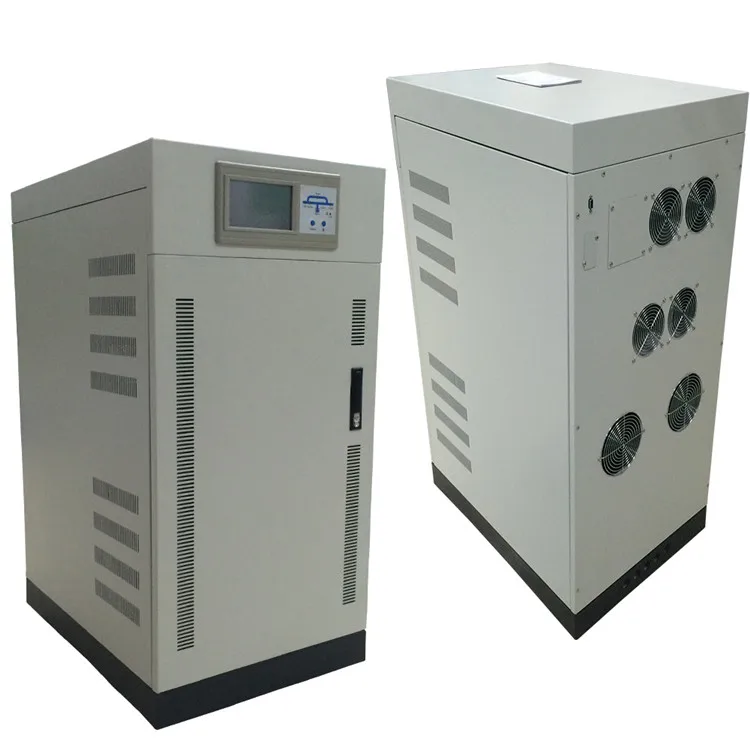

Off Grid Power Pure Sine Wave Three Phase Inverter
Model 30K
Power 30KW
Power Factor 0.8
Input Phase 3 phase 4 wire and ground
Voltage Range 380V±20%(3 phase), phase voltage 220V
Frequency Range 45-65Hz
Rectifier 3 phase 6 pulses, 12 pulses is optional
Output Phase 3 phase 4 wire and ground
Wave form Pure sine wave
Crest Factor 3:01
Rated Voltage 380/400/415V optional ±1% for static load, 5% forfluctuant load
Phase Voltage setting 200-244VAC, pls confirm when order
Transient Response ±5%,10ms
Frequency 50/60 Hz ±0.05%
Total-harmonic distortion < 3% linear load, <5%(nonlinear load)
short circuit current Short current for 0.1s(200% current)
Overload Capacity Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal
Battery Battery Maintenance free lead-acid cell
DC Voltage 384V
Max Charge Current 6-30A adjustable

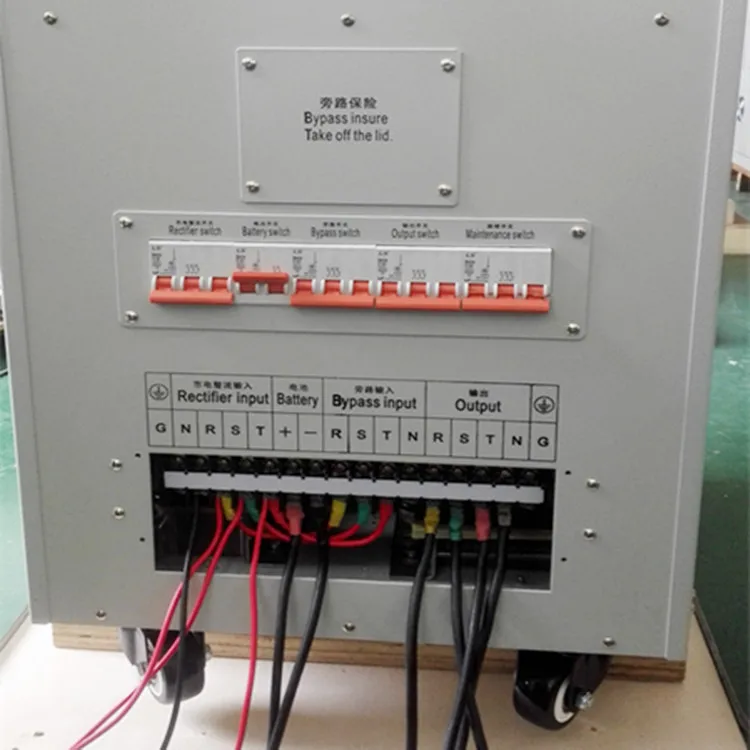

Bypass Type Static state +manual maintenance bypass
Input Phase 3 phase 4wire and ground
Input Voltage Range 15% - 25% (the front control panel selectable)
Transfer Time Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency Whole unit >85%
Inverter 95
Remote Signaling Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts
Communication Interface RS232 (SNMP, modem optional)
Running Temperature 0-40 degree Celsius
Relative Humidity Less than 95% (without condensing)
Noise at 1 M Less than 60dB
Degree of protection IP20
Applicable Standards EN50091-1-EMC, EN50091-2LIV.A
Product Size(mm)&Weight(Kg) 1100mm*660mm*1460mm, 380Kg
Package Size(mm)&Weight(Kg) 1450mm*1110mm*1880mm, 420Kg

VIEW MORE
On Grid Inverter, Solar Inverter, 3 Phase Solar Grid Tie Inverter
above is detail introduction of Grid Tie & Off Grid 1KW 2KW 3KW 5KW 6KW 8KW 10KW 20KW 30KW 50KW 100KW 100KVA 3 phase solar inverter Hybrid Power, include price, model, picture and supplier of Grid Tie & Off Grid 1KW 2KW 3KW 5KW 6KW 8KW 10KW 20KW 30KW 50KW 100KW 100KVA 3 phase solar inverter Hybrid Power.
