Product details
System:wind solar hybrid power system;wind turbine power:3KW;
Port:Foshan/Guangzhou;Output voltage:110/220v/230V/240V signalphase;
Brand Name:TF;Type:hybrid solar wind system;
Model Number:ws1kw-20kw;Supply Ability:1000 Set/Sets per Month accept OEM;
Output frequency:50HZ/60HZ;battery:lead acid battery or gel battery optional;
Payment Terms:L/C,T/T,Western Union,Paypal;Application:home, commercial, industrial, office;
Packaging Detail:photovoltaic system 5kw Wind Solar Hybrid System wind power generator solar panel pack by carton and plate. another parts pack by plywood case.;warranty:10 years for solar panel, 3 years for wind generator;
solar panel power:200w/ 250w optional;Place of Origin:Guangdong China;
Inverter type:off grid pure sine wave inverter;Input voltage:48v/96v;

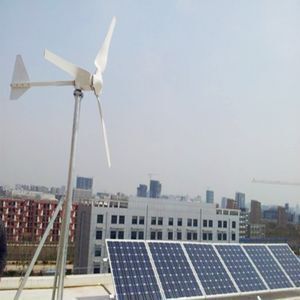

photovoltaic system 5kw Wind Solar Hybrid System wind power generator

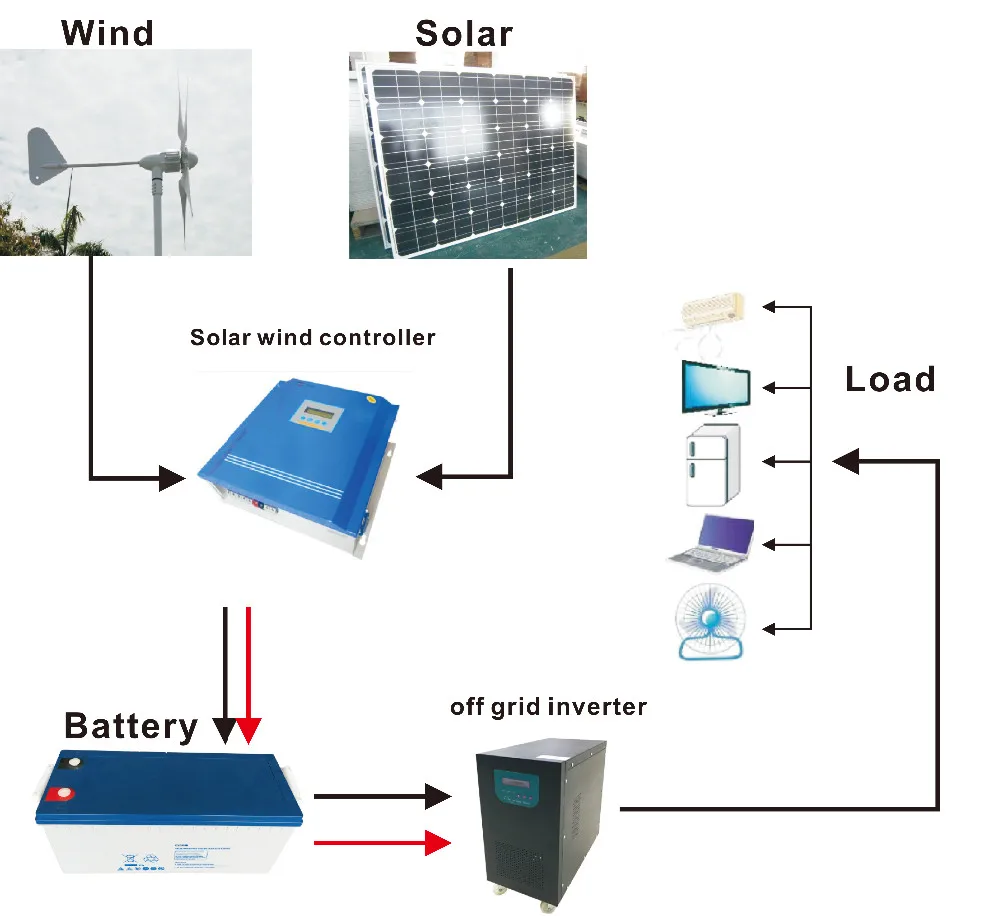

6KW solar system connection:

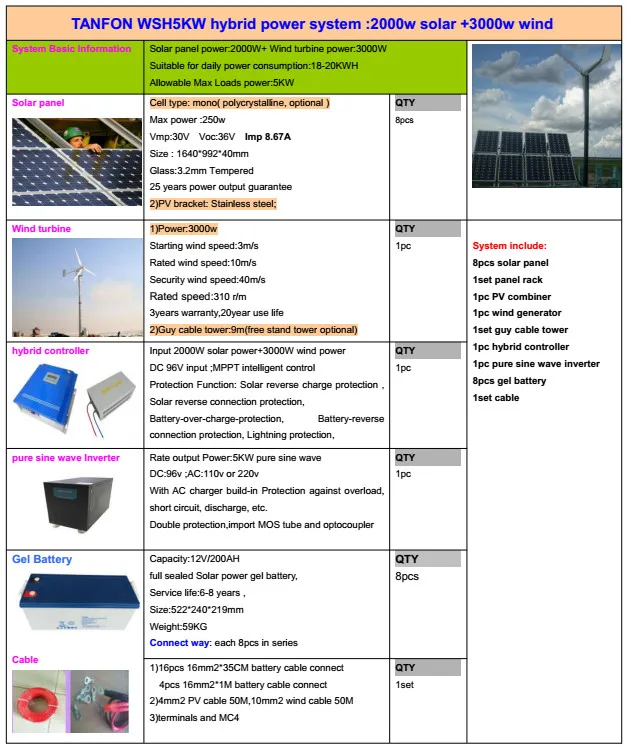

5kw Home Solar wind power hybrid charge system for reference



Wind turbine generator


 Wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.



Solar PV panel characteristics



Module TypeFS250-24v
Maximum power at STC(Pmax) 250W
Optimum operating voltage(Vmp)30V
Optimum operating current(Imp) 8.33A
Open-circuit voltage(Voc) 36V
Short-circuit current(Isc)9.68A
Short-circuit current temperature coefficient (0.065±0.015)%/℃
Open-circuit voltage temperature coefficient  -(80±10)mV/℃
Peak power temperature coefficient-(0.5±0.05)%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)   47±2℃
Operating temperature    -40℃ to 85℃
Maximum system voltage 600V DC
Power tolerance  ±3%

STC

lrradiance 1000W/m2, Module temperature 25℃, AM=1.5





Features

Nominal 24V DC for standard output.

High efficiency.

Outstanding low-light performance.

High transmission tempered glass.

Rugged design to withstands high wind pressure and snow load, easy installation.

Aesthetic appearance.

Design to meet unique demand of customer.

25 year module output warranty.



Pure sine wave home inverter / solar, wind system off grid inverter





Model

TF5K

Capacity(W)

5000

DC voltage(V)

48/96

Input voltage(V)

145-280VAC

Input frequency

45-65HZ

Output voltage

Four steps AVR, 110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤ 3%

Low-voltage protection(V)

39/78

Over voltage protection(V)

60/120

Recharge current

15-25A

Unit size(mm)

473*230*490

Transfer efficiency

87%--90%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection

Over load

120% of the rate capacity

Short circuit

300% of the rate capacity



Pure sine wave home inverter / solar, wind system off grid inverter Feature:



1) super wide input voltage: 160V---280VAC

2) completely controlled by CPU. Battery temperature sensor (BTS) Automatic generator starting (AGS)
3) protect against output short-circuit/overload. When you throw off its load, it will turn on automatically.
4) optional for charge build-in, charge current is 10A----30A.
5) different DC voltage: 12V, 24V, 36V, 48V, 96V, 110V,192V, 240V for optional.
6) inverter can operate with 120% of nominal load during 1 minute ;150% of nominal load during 10 second.
7) it can drive inductive loads, such as lighting, TV sets, fans, refrigerators and air-conditioner

8) it's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
9) ATM inverter, RS232 software, SNMP card for optional.

10) 100% import MOS and IC, promise high quality materials .

11) double protection ,city power &battery working mode button

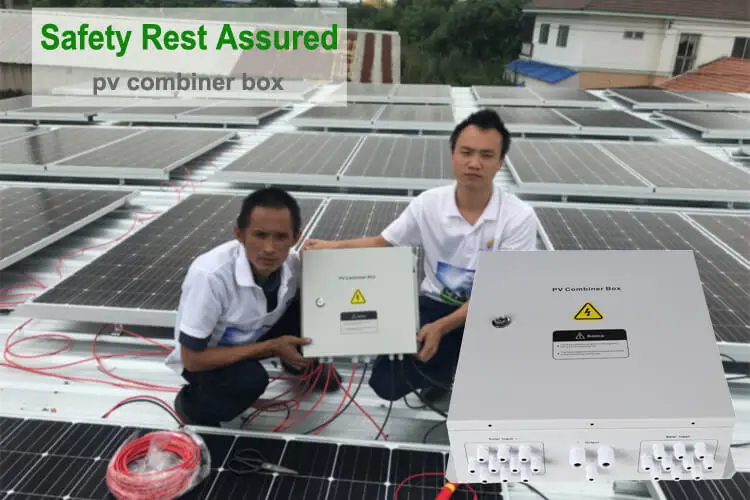

PV Array Combiner



Features:

1. Use to connect to multiple PV array strings inputs, Simplify wiring between PV array and controller, protections to controller.

2. It is equipped with the solar DC lightning protection devices. Both the positive pole and negative pole have the dual lightning protection function.

3. It adopts the professional DC breaker, capable to withstand voltage not lower than DC1000V. So it is safe and reliable.

4. The protection class is IP65, which meets the outdoor installation and usage requirements.

5. Easy and convenient installation and maintenance, long-term service life.

6. Reliable thunderstorm& surge protection

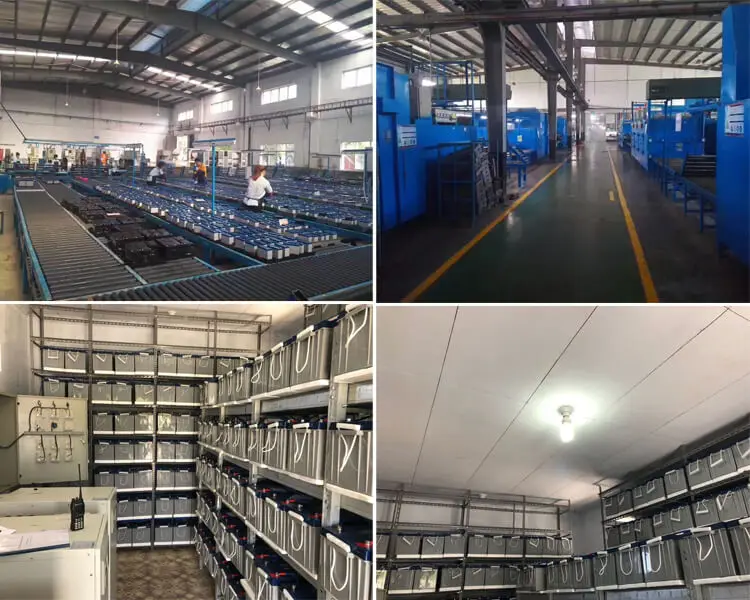

Gel Battery





Gel battery Features

1. A high storage capacity

2. Charge and discharge without mist.

3. Good charge acceptance, can be high current charge (0.8C-1C)

4. Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.

5. Can be super-deep discharge and repeated to make discharge, battery will not undermine.

6. Well adapt to the temperature, can be used within -50~60℃.

7. Small self-discharge; completely maintenance-free; the battery can still be used for normal if stored at room temperature after full charge.

8. Long design service life, double the life of lead acid batteries.

9. Environmental protection; It is easy to recycle and no pollution.

10. Without space limitation and allowed to be operated in any orientation.



Panel Rack


Features:

Ground mounting, Slope Rooftop or Flat rooftop mounting

wind load: 55m/s,snow load:1.5kn/m2

structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )





Solar system using feedback from customers:

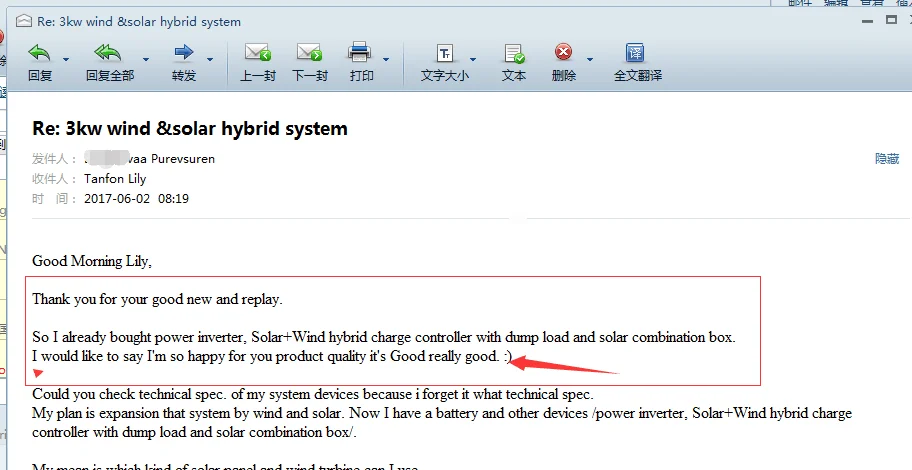

3kw home solar wind hybrid system feedback

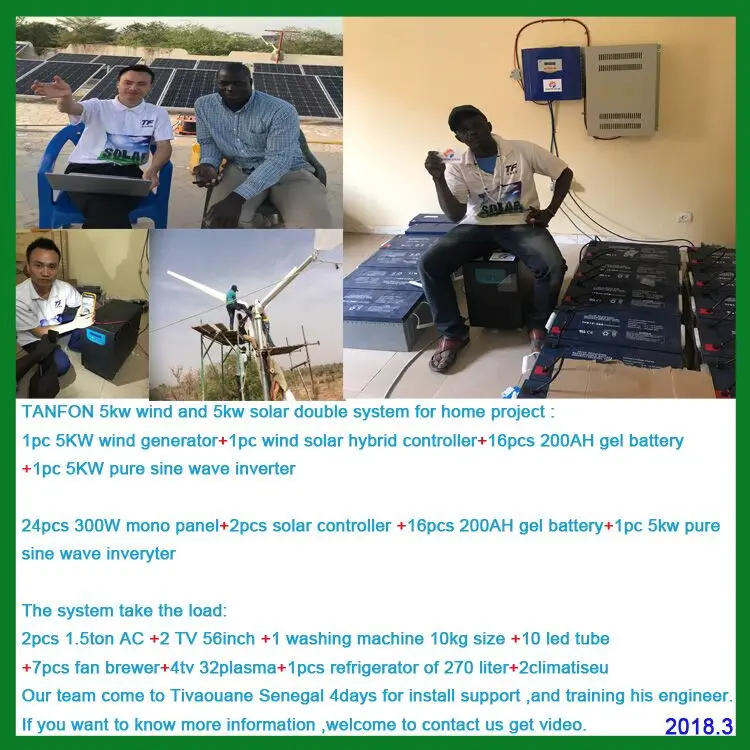

5KW solar wind hybrid power system project









Tanfon Solar products Certification





We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
