BAOC-13DT High speed copper Al rod breakdown production line wire drawing machine
- 12000.00 1 - 19 sets
- 10000.00 >=20 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Product Name: | BAOC-13DT; | Condition: | New,New; |
| After -sales service: | 1 Year Warranty; | Warranty: | 1 Year; |
| Package Preview: | ; | Showroom Location: | Egypt; |
| Marketing Type: | New Product 2020; | After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service; |
| Warranty of core components: | 1 Year; | Speed: | 25m/s; |
| Power: | 160kw; | Dies Number: | 13; |
| After Warranty Service: | Video technical support,Online support; | Dimension(L*W*H): | 3800*1500*1300mm; |
| Core Components: | Gearbox,Motor,PLC; | Machinery Test Report: | Not Available; |
| Video outgoing-inspection: | Not Available; | Brand Name: | BAOC; |
| Usage: | Cable; | Inlet Diameter: | 8mm; |
| Input Diameter: | 8mm; | Local Service Location: | Egypt; |
| Packaging Detail: | convenient pack; | Weight: | 8500KG; |
| Certification: | CO CIQ; | Voltage: | 380v; |
| Outlet Diameter: | 1.38-4.2mm; | Place of Origin: | Jiangsu China; |
| Quality: | High Quality; | Year: | 2019; |
| Key Selling Points: | Automatic; | Output Diameter: | 1.38-4.2mm; |
| Applicable Industries: | Manufacturing Plant,Construction works ,Wire Factory; | Drawing material: | Copper Wire; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Product Description

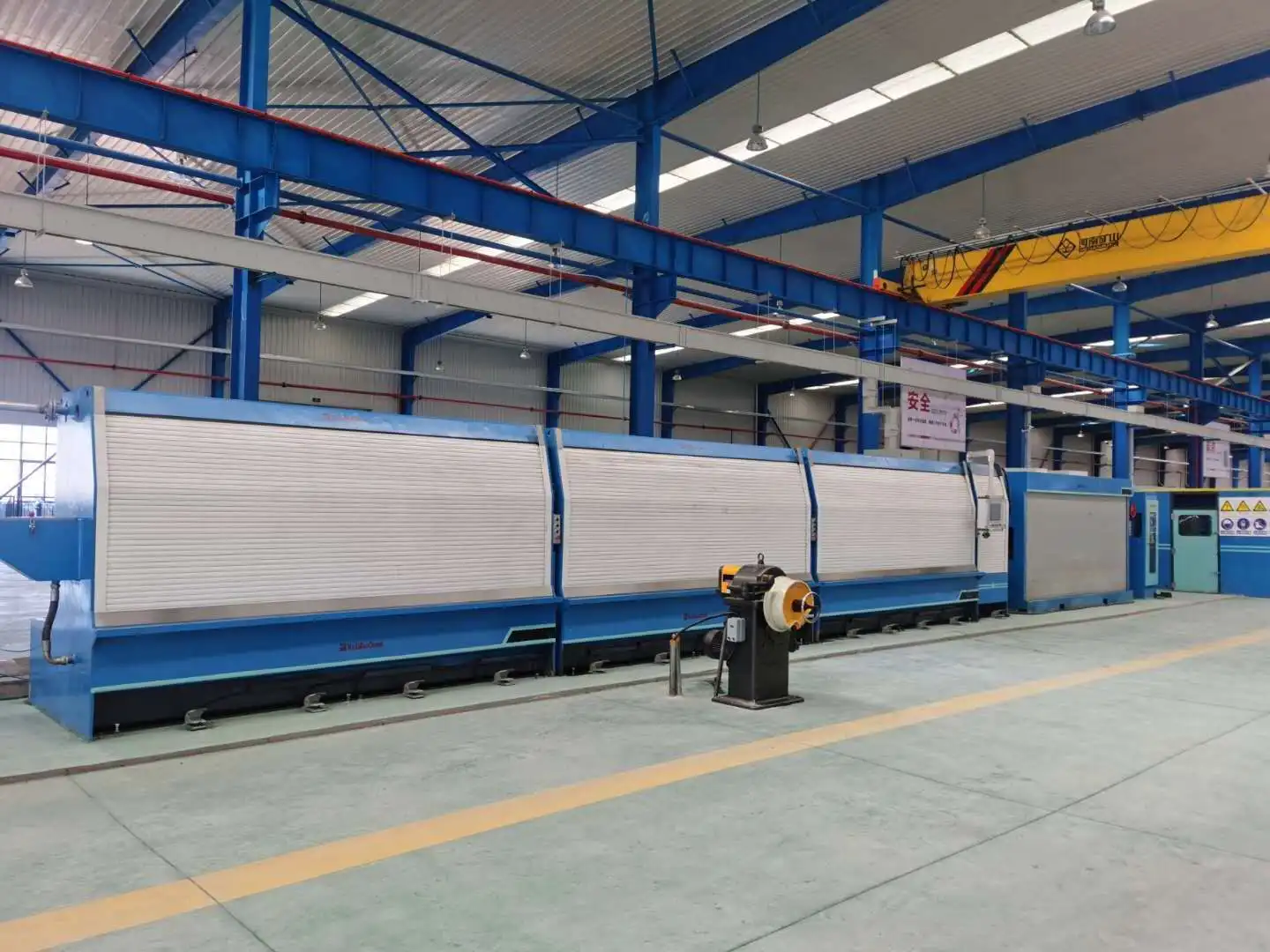

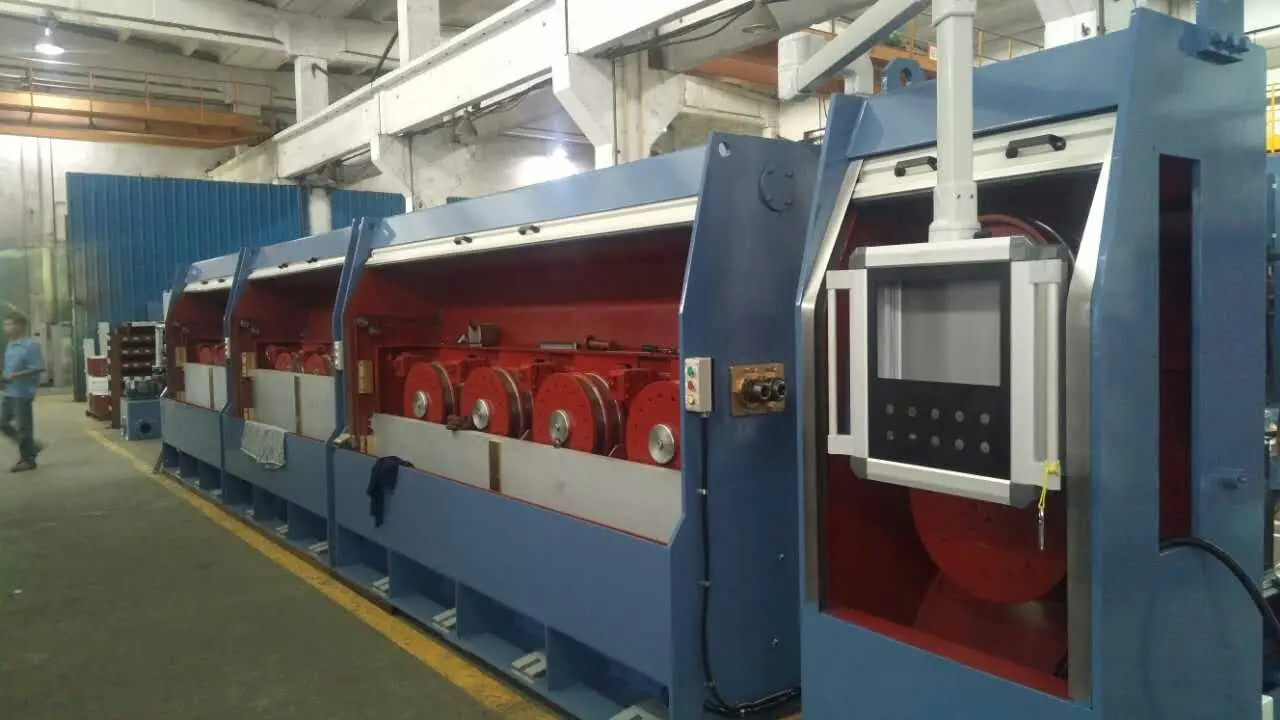

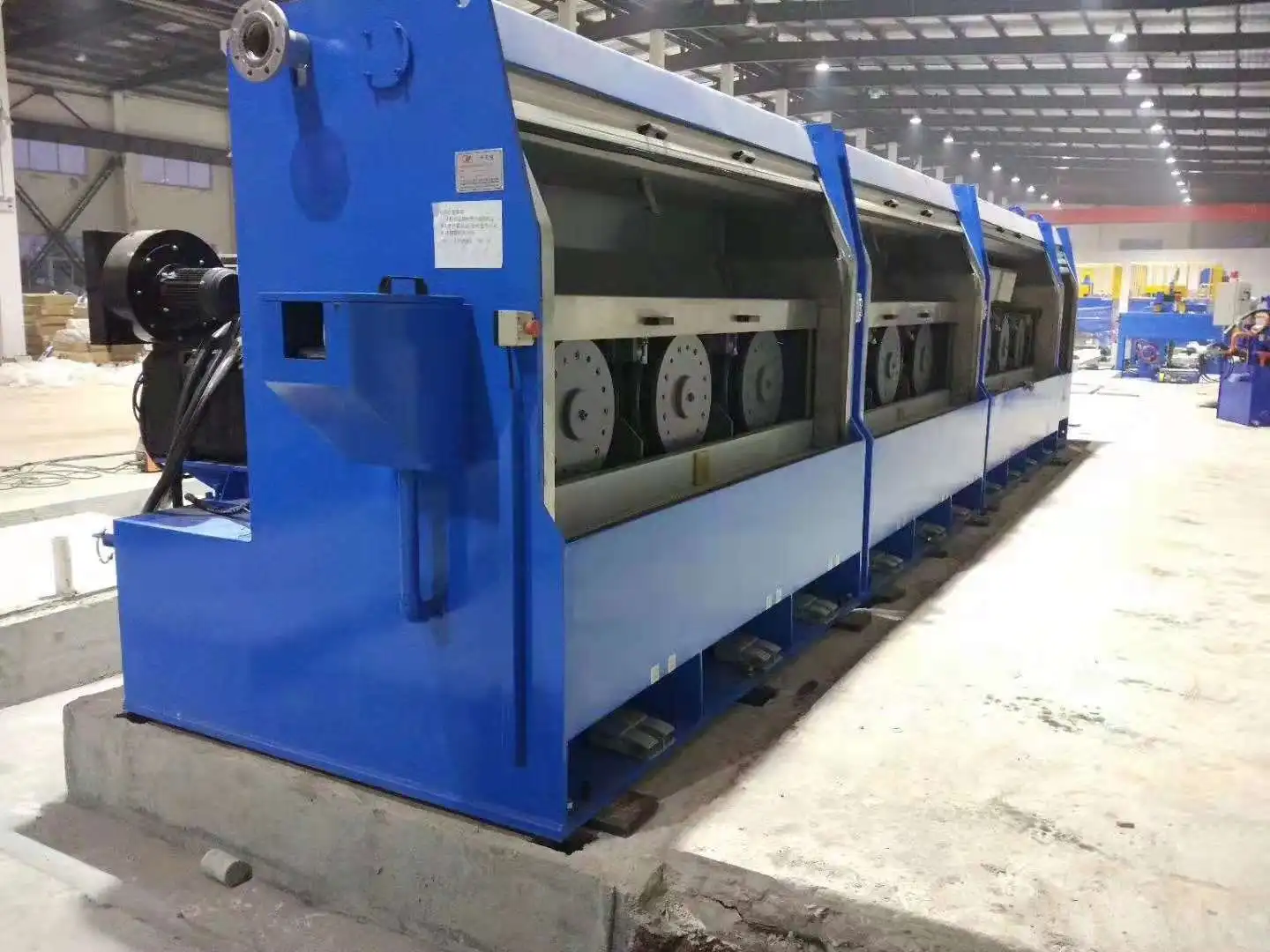

BAOC-13DT High speed copper Al rod breakdown production line wire drawing machine
Size Information
Machine Type | BAOC-13DT | ||||
Wire finished | Φ1.38—Φ4.2mm | S | M | L | XL |
Wire inlet | Φ2.5-3.5mm | ||||
Drawing line speed | 1500mpm(max) | ||||
Drawing dies No. | 13 | ||||
Capstan dia.(MAX) | Φ450mm | ||||
Main Motor | 250KW | ||||
Spooler motor | 75KW | ||||
Annealing drawing mode | Single-motor drive / Flat belt transmission | ||||
Annealing machine type | BAOC-450T Horizontal type | ||||
Annealing wheel dia. | Φ350mm | ||||
Annealing voltage current | DC 60V 6000A | ||||
Take-up type (optional) | Double take-up 500-630 with automatic change drums system or Ccoiler | ||||
Single drum take-up |
Related Products
Company Introduction
Wuxi Baochuan/Shuochuan Machinery Manufacture CO., Ltd was established in 2009. We always insist on the company ideology of “High quality, consistent improvement, conscientious service”,and spare no effort to build our brand and service.
Wire and cables equipment researching, manufacturing and marketing is our main business, which contains Large/Medium/Fine Wire Drawing Machine series, Extruding Machine Series, Annealing Machine series, High-speed Auto Stranding Machine series, Take Up Machine series, Full Auto Coiling and Packing System, Caterpillar Machine series, Single Stranding Machine with microcomputer, taping Machine, and Accessories for Auxiliary Equipment, as well as the customization of related electromechanical equipment.
Wire and cables equipment researching, manufacturing and marketing is our main business, which contains Large/Medium/Fine Wire Drawing Machine series, Extruding Machine Series, Annealing Machine series, High-speed Auto Stranding Machine series, Take Up Machine series, Full Auto Coiling and Packing System, Caterpillar Machine series, Single Stranding Machine with microcomputer, taping Machine, and Accessories for Auxiliary Equipment, as well as the customization of related electromechanical equipment.
FAQ
Q: Could you please arrange the installation?
A: Yes, we could and the buyer pay the charge.
Q: Could you arrange the production education?
A: Yes, we could do it on line. The buyer pay the charge if we fly to your country.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment.
Q:Can you produce according to the samples or designs?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:Do you test all your goods before delivery?
A: Yes, We have 100% test before delivery.
