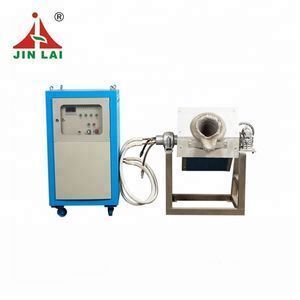

JINLAI Best Selling Mini Factory Price MF 5KG Induction Melting Furnace for Steel and Iron (JLZ-25)
- 1000.00 set
| Condition: | New; | Delivery Detail: | 10-15 days after receipt your payment; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Working theory: | Electromagnetic induction melting smelting; |
| Brand Name: | Jinlai; | Packaging Detail: | Plywood case Induction heater : package size 820*640*670mm 95KG Furnace : package size 700*950*1000mm 120KG; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Warranty: | 1 Year; |
| Supply Ability: | 500 Set/Sets per Month; | H.S code: | 8514200090; |
| Power(W): | 25KW; | Max input current: | 36A; |
| Weight: | 215KG; | Package: | plywood case; |
| Type: | Induction Furnace; | Voltage: | 3 phase 380V; |
| Melting material: | Steel / Iron; | Port: | Guangzhou, Shenzhen, Hongkong; |
| Capacity: | 5KG; | Place of Origin: | Guangdong China (Mainland); |
| Usage: | Melting Furnace; | Dimension(L*W*H): | Custom Made; |
| Certification: | ISO9001:2008, SGS, CE; | Temperature: | 2000 degree; |
| Crucible: | Magnesia crucible; |
Dongguan JINLAI Best Selling Mini Factory Price MF 5KG Induction Melting Furnace for Steel and Iron (JLZ-25)
Main parts of the melting furnace system
1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.
Characteristics of M.F Melting Furnace
- Better Heating penetration and even temperature inside the melting metal.
- M.F field force can stir the melting pool to achieve better melting quality.
- Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
- Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.
Main Technical Data
Model | JLZ-25KW | ||
Input power desire | 3 phase 380V 50/60HZ | ||
Oscillate power max | 25KW | ||
Input current | 5-45A | ||
Output voltage | 70-550V | ||
Oscillate frequency | 1-20KHZ | ||
Cooling water desire | Furnace + induction heater | ≥0.2MPa ≥6L/Min | |
| Induction heater | ≥0.2MPa ≥3L/Min | |
Duty cycle | 100% 40°C | ||
Heating Speed | First cool furnace: 50-60mins Second heated furnace: 20-30mins | ||
Dimension | Heating power | Generator: 560*350*550mm, Transformer: 550*300*420mm | |
| furnace | 1000*650*840mm | |
Net weight | 180kg | ||
Cable length | 2-6(Meters)
| ||
Capacity | 5KG | ||

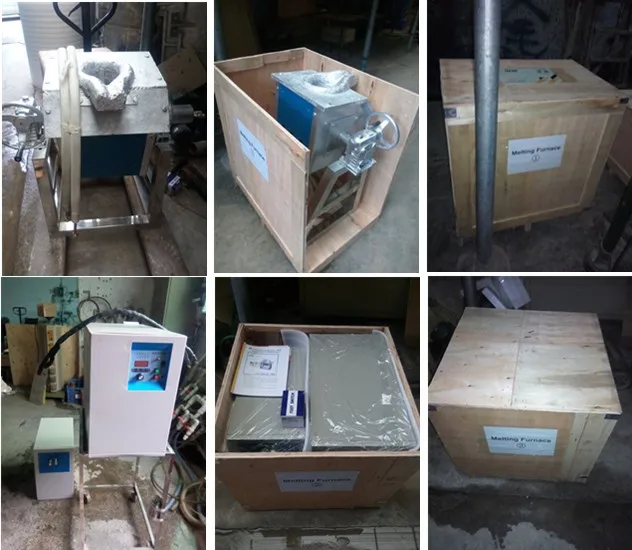

List of Accessories In the Package
Item | Name of machine or parts | Specification | Amount |
1 | JLZ-25KW Generator | - | 1 pc |
2 | JLZ-25KW transformer | - | 1 pc |
3 | 5KG tilting type melting furnace |
| 1 set |
4 | Foot pedal | 3 core | 1 pc |
5 | Connect cable | - | 1 set |
6 | Instruction Manual | - | 1 pc |
7 | Product catalog | - | 2 sets |
(Melting speed: the first cool furnace 50-60mins/furnace, the second heated furnace 20-30mins/furnace)
Model | Steel ,iron | Copper, Gold , Silver | Aluminum |
JLZ-15 15KWMelting Furnace |
| 10KG | 3KG |
JLZ -25 25KW Melting Furnace | 5KG | 20KG | 6KG |
JLZ -35 35KW Melting Furnace | 10KG | 30KG | 10KG |
JLZ -45 45KW Melting Furnace | 18KG | 50KG | 20KG |
JLZ -70 70KW Melting Furnace | 25KG | 100KG | 30KG |
JLZ -90 90KW Melting Furnace | 40KG | 120KG | 40KG |
JLZ -110 110KW Melting Furnace | 50KG | 150KG | 50KG |
JLZ -160 160KW Melting Furnace | 100KG | 250KG | 100KG |

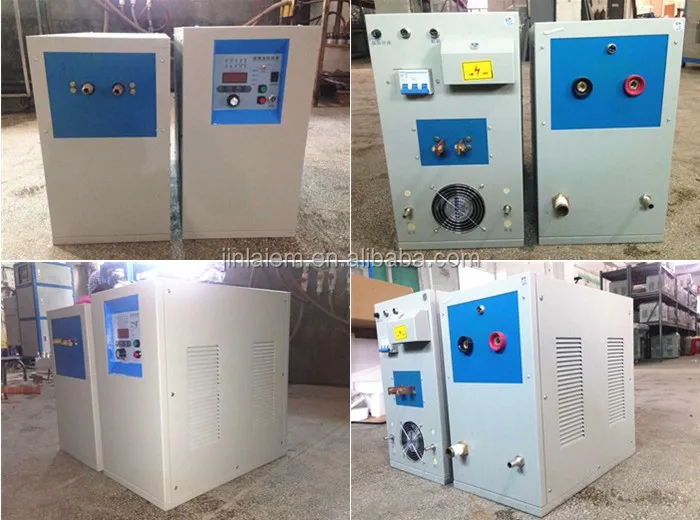

Outside

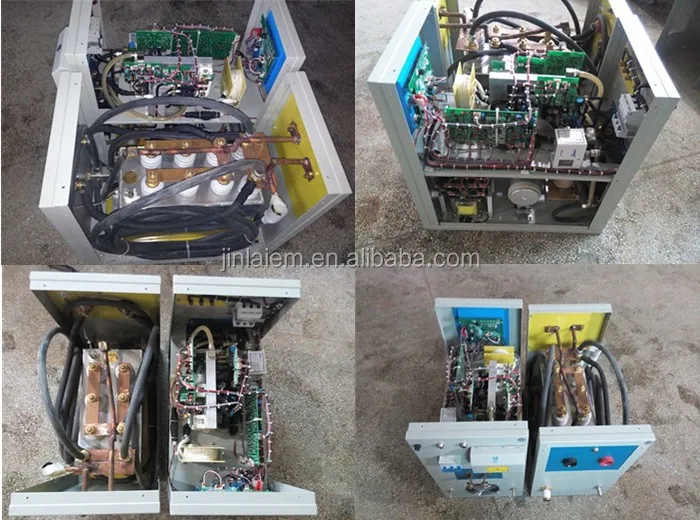

Inside
Graphite Crucible

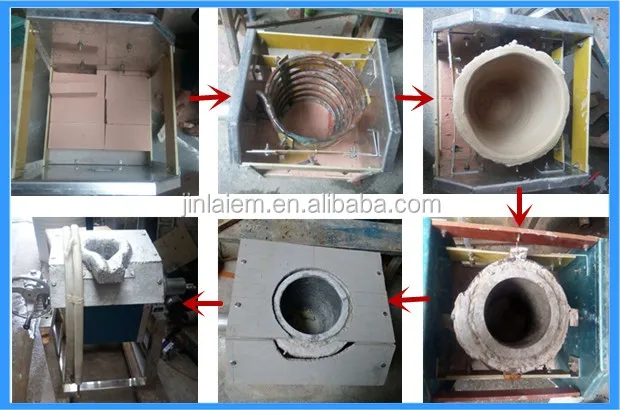

Making Steps

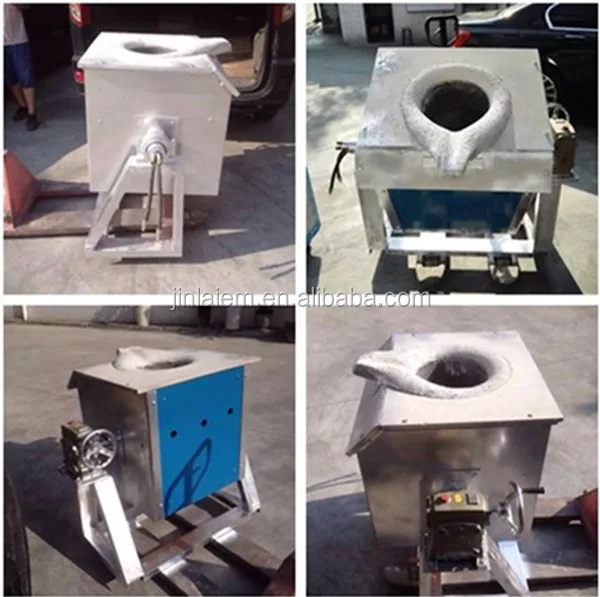

Furnace Appearance
