Henan Recycle Scrap Copper Wire Granulating Machine

Product details
Port:Qingdao Ports,or any other Chinese Ports;Power supply:380V 50Hz/60Hz;
Supply Ability:10 Set/Sets per Month;Condition:New;
Brand Name:RECYCLE (SUNY);Total power:62KW;
Place of Origin:Henan China (Mainland);Color:blue/yellow,customized service available;
Model NO.:ZY-TMJ300;Weight:6850KG;
Type:fully automatic;Packaging Detail:Standard Packing, Wooden case or as customer requirement for Henan Recycle Mixed Copper Wire Cable Granulator For Copper Recycling;
Applicable Industries:Manufacturing Plant,Energy & Mining,Waste Recycling;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Certification:CE ISO;Key Selling Points:Long Service Life;
Copper purity:99.99%;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Power (kW):45;Input capacity:200~300kg/h;
Advantage:high reliability,no dust pollution,powerful;Weight (KG):6850;
Warranty:1 Year;

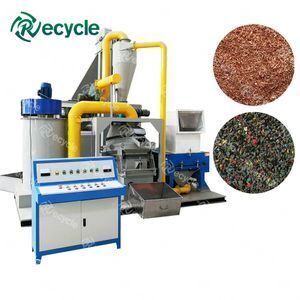

Henan Recycle Scrap Copper Wire Granulating Machine
GET THE LATEST QUOTE ↓
PRODUCT APPLICATION

The Henan Recycle Scrap Copper Wire Granulating Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameterer is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication calbe, etc.

TELL US YOUR RAW MATERIAL ↓
FIANL PRODUCTS

Henan Recycle Scrap Copper Wire Granulating Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.

CUSTOMIZE YOUR SOLUTIONS ↓
PRODUCT STRUCTURE

The Henan Recycle Scrap Copper Wire Granulating Machine consists of shredding system, crushing system, sorting system and dust collection system. The whole process is controlled by PLC.

Through shredding, crushing, vibration screening, (the incompletely separated metal and nonmetal will reentry into the crushing machine and be crushed again) gravity separating, electrostatic separating and pulse dust collecting, the separation rate of the copper and plastic will reach about 99% , eventually get metal and non-metallic collective.

PROCESS DESCRIPTION

For the small capacity, the cable wire raw material can be put into the all-in-one machine directly, after crushing, then the air separtor will make the copper and plastic suspended on the screen. Then the Copper will be separated from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

For larger capacity, the cable wire raw material will be firstly put into the shredder, then go into crusher to get the small pieces wires, then the air separator will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. The copper wire recycling production line including the crushing system, air separator system, dust and fiber collection system and high voltage electrostatic separator.

REQUEST A QUOTE RIGHT NOW ↓
PRODUCT FEATURE

1. Compact structure and reasonable layout, safe and reliable, easy to install, No dust outlet, the dust separation rate can reach up to 99%.

2. Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.

3. Back feeding system will crush the unfinished material again, which guarantee the totally separation of copper and plastic.

4. This Henan Recycle Scrap Copper Wire Granulating Machine use the air separator and the high voltage electrostatic separator together, to improve the recovery rate up to 99%.

PRODUCT DISPLAY
TECHNICAL PARAMETERS
ModelPower (Kw)Weight (Kg)Capacity (Kg/H)Dimension (m)
RSK-TMJ200281850100-2002.2*2*2.3
RSK-TMJ300392500200-3003.2*2.1*2.3
RSK-TMJ400453200300-4004*2.1*2.5
RSK-TMJ500683850400-5006.2*5*3.3
RSK-TMJ800755500700-80010.4*2.1*3.3
RSK-TMJ1000958200800-100012*4.1*4.5
NOTE:

1. Working voltage:380±10V(415V ,440V also can be custom);

2. It can be customized fur 1t/h ur larger capacity.

(If you want more detailed parameters and quotations, please contact us)

TELL US THE MODEL YOU NEED ↓
RELATED CONFIGURATION
GET THE QUOTE ↓
FRIENDLY COOPERATION
FAQ
Q: Why Choose Us?

1). We are manufacturer with own factory for many years.

2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.

3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).

Q: What Is Your Service?

1). Pre-Sale Service

According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.

2). On Sale Service

You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.

3). After-Sale Service

We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.

Q: How Do You Ensure The Machine Quality?

A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.

Q: How About The Motor?

A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.

YOUR QUESTIONS ↓
WHY CHOOSE RECYCLE

RECYCLE support team has more than 20 professional engineers to provide clients professional solutions, facing multitudinous requirements, RECYCLE team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, RECYCLE keep growing and now owns ability of taking large wood to sawdust/powder plant, scrap tires to rubber granules/powder plant, waste metal downsize project,WEEE recycle plant in China or abroad, under the support of internal business department, RECYCLE is able to take"Turn-Key" projects in China or abroad.

WELCOME TO VISIT OUR FACTORY

-- Our customers from over 30 countries and regions.

-- High efficiency,high quality,lowcost. No chemical process involved and no pollution.

-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
