supermarch 2018 hot sale stainless steel laser welding machine price

Supplier: Shenyang Jiahua De-Long Science & Technology Co., Ltd.
Region: Liaoning, China
Contact: Ms Carolina Liang
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Place of Origin:	Liaoning China (Mainland);
Laser Wavelength:	1064nm;	Supply Ability:	500 Set/Sets per Month;
Pulse Width:	0.2-20ms;	Focal Spot Diameter:	0.3-3.0mm;
Condition:	New;	Warranty:	1 Year;
Facula diameter:	0.3-3.0mm;	Brand Name:	SYJH;
Wavelength:	1064nm;	Cooling System:	Water Cooling;
Packaging Detail:	wooden case;	Pulse Frequency:	≤50Hz;
Laser type:	Nd:YAG Pulse Xenon Lamp;	Observing system:	CCD( microscope for option);
Max. Output Power:	400W;	Payment Terms:	T/T,Western Union;
Warranty:	12 Months;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certification:	CE;	Dimensions:	750*1000mm;
Single Pulse Energy:	120J;	Usage:	Welding;
Power Supply:	220V 10% /50Hz60Hz 380V 10%50Hz 60Hz;	Port:	Qingdao;

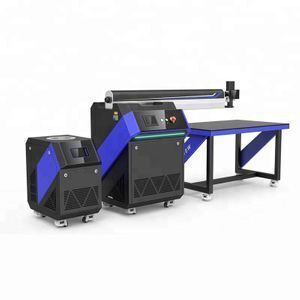

CNC high frequency Laser Welding Machine

ONLY FOR SUPER SPETEMBER !!!

Technical parameter

Model No.	300W	400W
Laser source	Nd3+:YAG Rod
Rated power	300W	400W
Max. single-pulse energy	90J	120J
Total power	6KW	12KW
Power supply	220V, 40A 50/60HZ compatible	380V, 60A 50/60HZ compatible
Laser wavelength	1064nm
Facula diameter	0.30-3.0mm
Molten pool diameter	0.3mm-3mm
Pulse width	0.2ms-20ms
Pulse frequency	1-50Hz
Controlling system	Single-chip microprocessor
Operation interface	English
Observing system	CCD
Locating system	Infrared and locating rod
Working table scale	1000*750mm
3-axis itinerary	X=700mm,Y=150mm,Z=200mm
Dimensions	P1: 11606101150mm P2: 14208701100mm	P1: 12607101150mm P2: 960+7101150mm P3: 1420870*1100mm
Gross Weight	280Kg	340Kg

Machine Features:

1. Red light fast positioning, CCD display, microscope optional

2. Adjustable working table allows welding from small size to big size of work piece

3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope

4. Slight distortion and affect by heating.

5. Capable of partial heating process.

6. Able to deal with complex, profiled, or tiny letters.

7. Low noise and no pollution.

8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position

9. New metal processing technology brings higher quality of end products.
10. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding

11. Laser cavity can move left and right easily for more space when welding big letters

12.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option

Prospect of laser welding in AD signs making:
     With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features. AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It’s widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.
     Regular combination and fixing of metal letters are done via glue, rivets or soldering, but all of them have big defects. Metal letters combined by glue always get loose with time goes by, especially at outdoors. Fixing by rivets sounds good, but not good-looking. Soldering is never a green way of fixing metal letters because of the poisoning gas produced when processing.
     However, laser welding technology makes two metal sheets become one only by a few melting spots. From any aspect, laser welding is the best solution and the greenest.

Water Chiller:

Chiller for 200W machine - 220V, 50HZ or 60HZ optional, 8.5L tank, 1600W cooling capacity, operate flow>3.5L/min, release flow<2L/min, cooling temperature 8-30 Celsius Degree, environment temperature <38 Celsius Degree

Chiller for 400W machine - 220V, 50HZ or 60HZ optional, 11.2L tank, 2700W cooling capacity, operate flow>3.5L/min, release flow<2L/min, cooling temperature 8-30 Celsius Degree, environment temperature <38 Celsius Degree

Spare parts:

Protective lens: $20/pc (service life depends on operation skills)

Xenon lamp: $100/pc (8000000 times of shooting for each piece, at least 1 year)

Locating rod $10/10 pcs (service life depends on operation skills)

Gift accessories:

laser-proof glasses 1 pair

installation tools 1 set

ceramic dimmer chip 1 pc

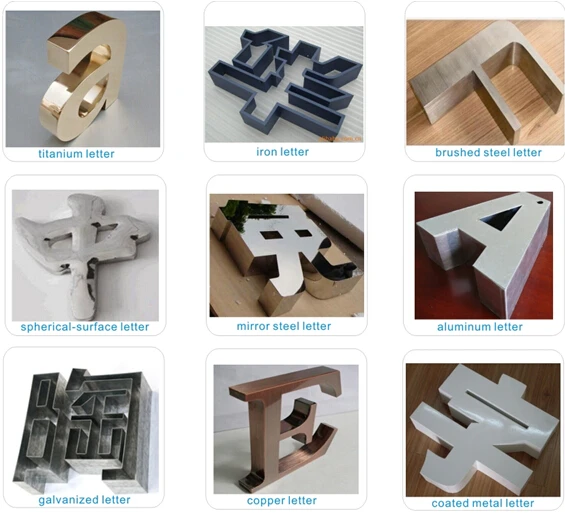

Applicable materials:

Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.

Sample
