WC67K hydraulic press brake steel bending machine

Supplier: Chongqing Kaku Machinery Imp & Exp Co., Ltd.
Region: Chongqing, China
Contact: Mr Victor Wen
Price: $3846.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Electrical Components:	Schneider Electrical From French;	Raw Material:	Steel Bar;
Port:	Shanghai;	Type:	Press Bending Brake;
Material / Metal Processed:	Aluminum, Carbon Steel, Stainless Steel;	Extra Services:	End Forming;
Place of Origin:	Chongqing China (Mainland);	Travel Switch:	Schneider Electrical From French;
Hydraulic Pump:	Bosch-Rexroth Form Germany;	Delivery Detail:	Shipped in 30 days after payment;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	ISO 9001:2000;
Payment Terms:	L/C,T/T;	Power:	CNC;
Machine Type:	Beading Machine;	Condition:	New;
Supply Ability:	200 Piece/Pieces per Month;	Color:	Customized;
Tubing Connector:	Emb Form Germany Brand;	Foot Switch:	Kacon From South Korea;
Hydraulic System:	Bosch-Rexroth Form Germany;	Brand Name:	KAKU;
Backgauge & Ramdrive:	Inverter From Taiwan Delta;	Model Number:	WC67k-40t/220;
Automation:	Automatic;	Packaging Detail:	Wooden box;
Nc Control System:	E21nc System;

Product Description

WC67K Series Hydraulic Plate Bending Machine Hydraulic Press Brake

1. Product Description:

Standard Equipment:

--- Estun E21NC control System

--- Powered Depth Y-axis&Back gauge X-axis

--- DELTA Inverter controlled back gauge

--- HIWIN Ball screws & Polished rod with 0,05mm accuracy.

--- Plate Support Arms

--- Germany Bosch-Rexroth Hydraulic

--- Germany EMB Tubing connector

--- Germany Siemens Main Motor

--- Tele mecanique/Schneider Electrics

--- Hydraulic &Electrical overload protection

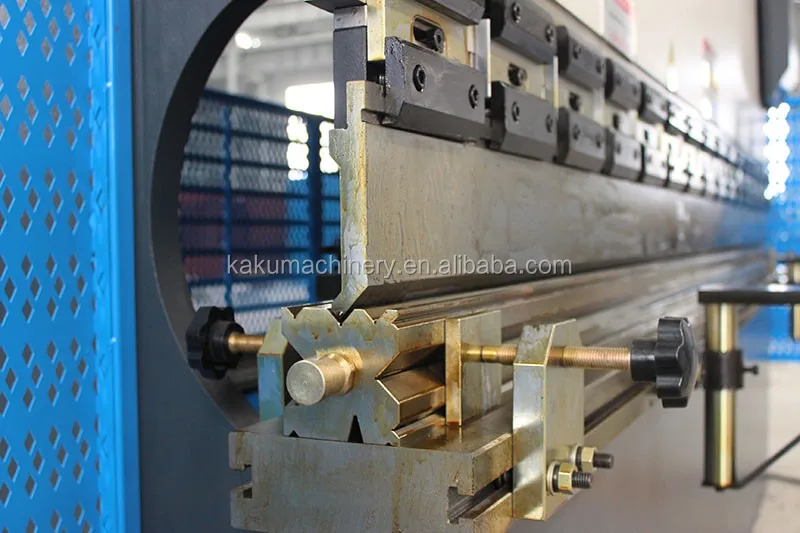

--- Top and Bottom Tooling(86°,R0.6mm)

--- Safety Standards(2006/42/EC):

Safety Equipment:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

--- Front finger Protection(Safety light curtain)

--- South Korea Kacon Foot Switch(Level 4 of safety)

--- Back metal safe fence with CE standards

--- Safety relay with Monitor the pedal switch and safety protection

Estun E21 NC Control system:

--- Back gauge and block control

--- Control for general AC motors,frequency inverter

--- Intelligent positioning

--- Stock counter

--- Holding/decompression time setting

--- Program memory of up to 40 programs Up to 25 steps per program

--- One side positioning

--- Retract function

--- One key backup/restore of parameters

--- mm/inch

--- Chinese/English

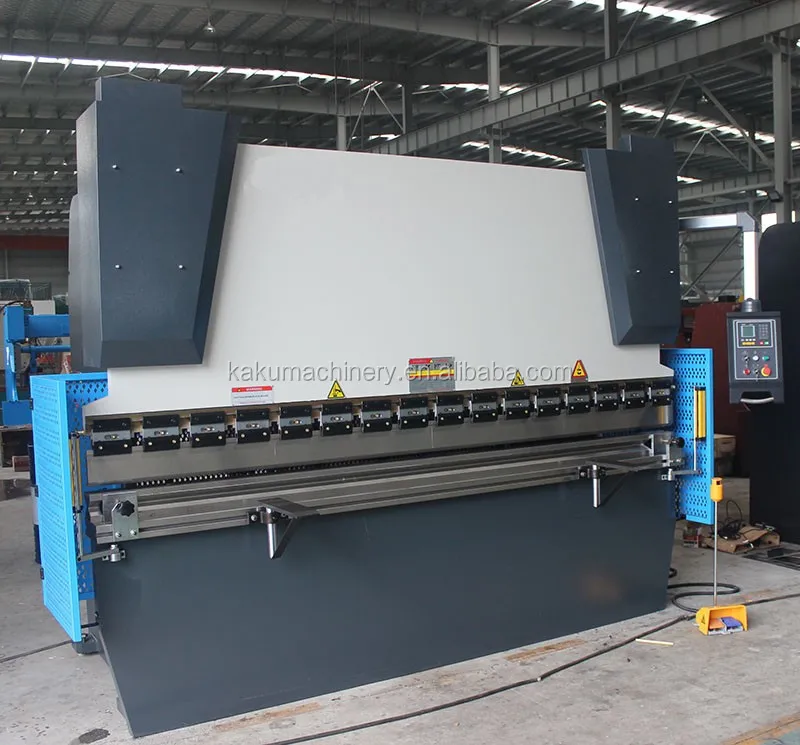

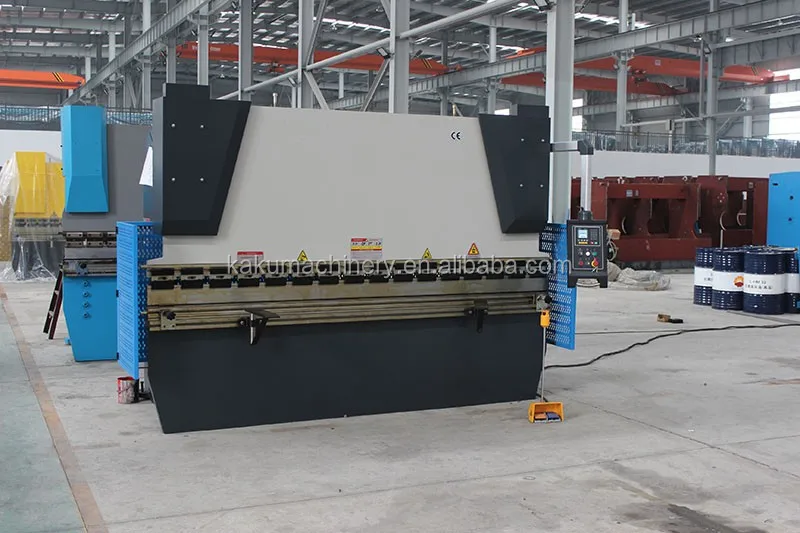

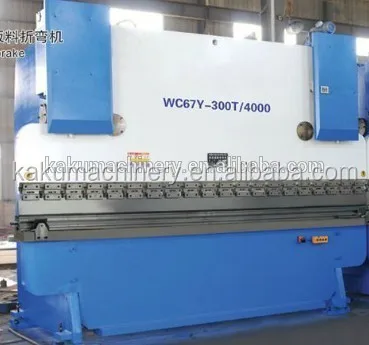

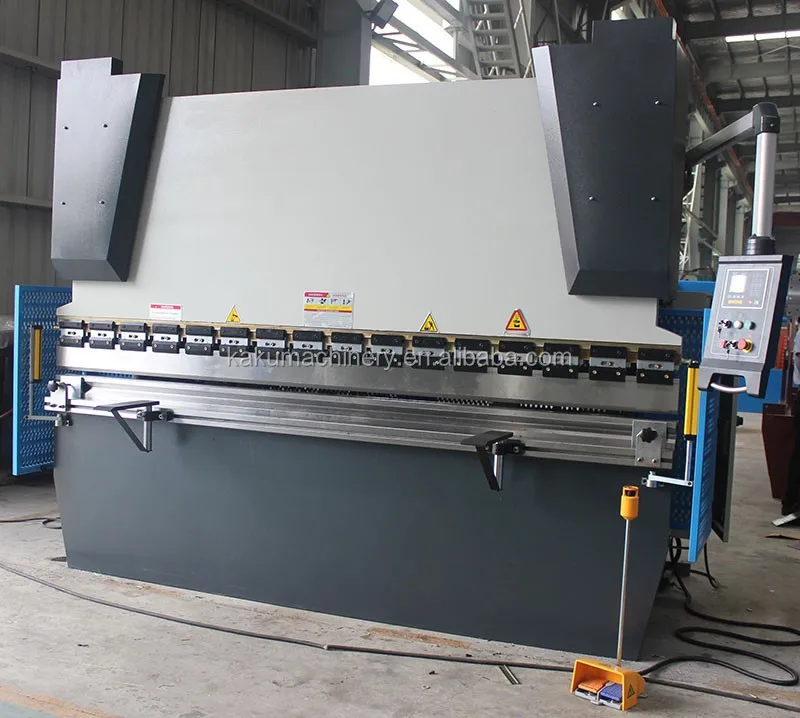

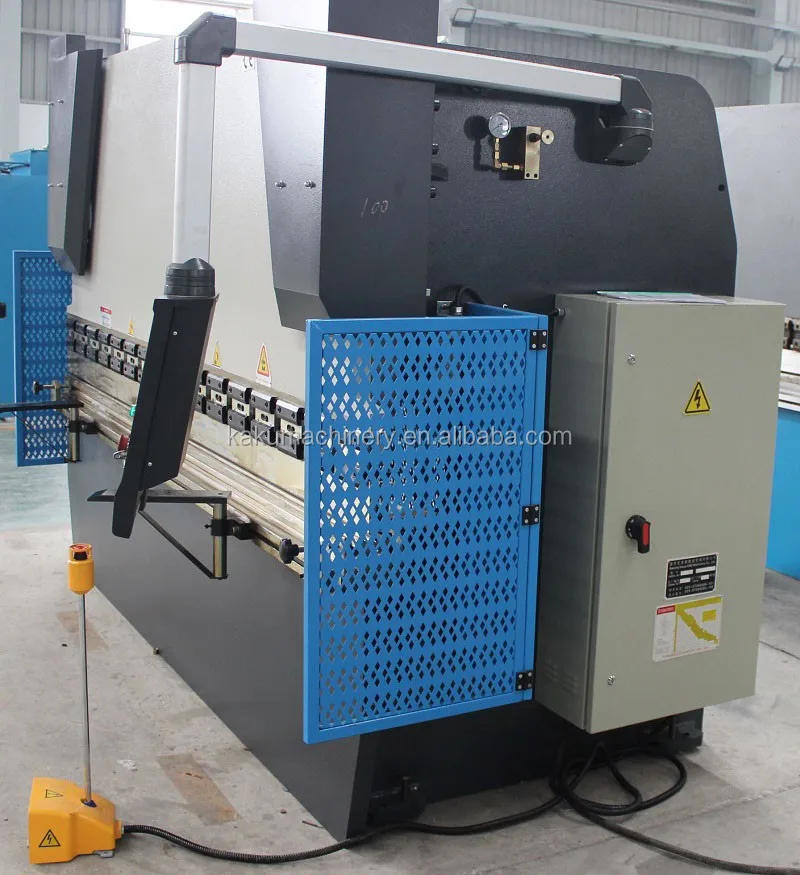

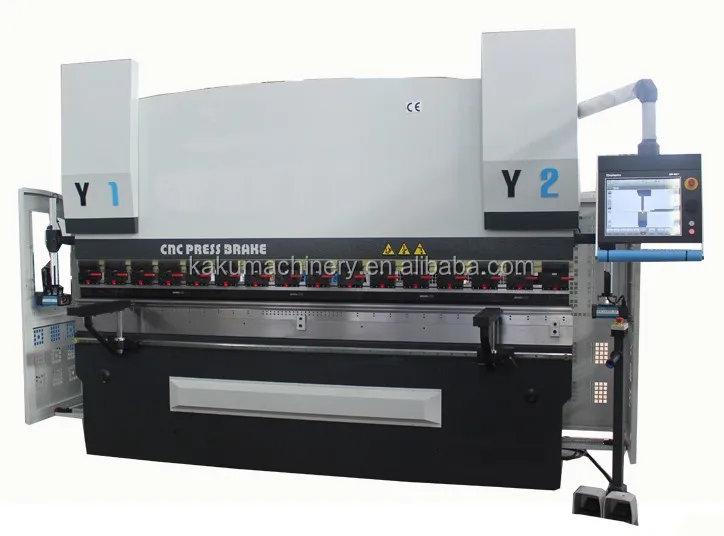

Detailed Images

Parameters

Type	Nominal Force (KN)	Worktable length (mm)	Poles Distance (mm)	Throat Depth (mm)	Slider Travel	Max Open (mm)	Power (kw)
40T/2200	400	2200	1875	230	100	320	5.5
40T/2500	400	2500	1875	230	100	320	5.5
50T/2500	500	2500	1875	230	100	320	5.5
63T/2500	630	2500	2020	250	100	320	5.5
63T/3200	630	3200	2575	250	100	320	5.5
80T/2500	800	2500	2020	300	100	320	7.5
80T/3200	800	3200	2590	320	100	350	7.5
80T/4000	800	4000	3050	320	100	350	7.5
100T/2500	1000	2500	2020	320	120	320	7.5
100T/3200	1000	3200	2600	320	120	370	7.5
100T/4000	1000	4000	3050	320	120	370	7.5
125T/3200	1250	3200	2600	320	120	370	7.5
125T/4000	1250	4000	3050	320	120	370	7.5
160T/3200	1600	3200	2600	320	200	460	11
160T/4000	1600	4000	3000	320	200	460	11
160T/5000	1600	5000	4000	320	200	460	11
160T/6000	1600	6000	4940	320	200	460	11
200T/3200	2000	3200	2600	320	200	460	11
200T/4000	2000	4000	3000	320	200	460	11
200T/5000	2000	5000	4000	320	200	460	11
200T/6000	2000	6000	5000	320	200	460	11
250T/3200	2500	3200	2500	400	250	590	18.5
250T/4000	2500	4000	3000	400	250	590	18.5
250T/5000	2500	5000	4000	400	250	590	18.5
250T/6000	2500	6000	5000	400	250	590	18.5
300T/3200	3000	3200	2530	400	250	590	22
300T/4000	3000	4000	3470	400	250	590	22
300T/5000	3000	5000	4000	400	250	590	22
300T/6000	3000	6000	5000	400	250	590	22
400T/4000	4000	4000	3000	400	250	590	30
400T/5000	4000	5000	4000	400	250	590	30
400T/6000	4000	6000	5000	400	250	590	30
500T/5000	5000	5000	4000	400	250	590	45
500T/6000	5000	6000	5000	400	320	590	45
600T/4000	6000	4000	3000	400	320	590	55
600T/6000	6000	6000	5000	400	320	590	55
800T/6000	8000	6000	5000	400	320	590	55
