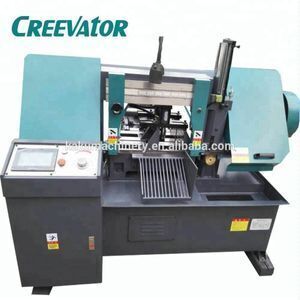

GZK4235 CNC Auto feed automatic band saw

Supplier: Chongqing Kaku Machinery Imp & Exp Co., Ltd.
Region: Chongqing, China
Contact: Mr Victor Wen
Price: $3864.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certification:	ISO9001-2008;	Packaging Detail:	Wooden case package;
Brand Name:	KAKU;	Use:	Metal Cutting;
Port:	Main port in China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	195013001500mm;	Condition:	New;
Warranty:	1 Year;	Weight:	1100kg;
Supply Ability:	250 Piece/Pieces per Month;	Type:	Band Saw;
Usage:	Metal Cutting;	Place of Origin:	Chongqing China (Mainland);
Delivery Detail:	25 working days;	Voltage:	220V/380V;
Model Number:	GZK4235;	Power(W):	3kw;
Payment Terms:	L/C,T/T,Western Union;	Style:	Horizontal;

Product Description

GZK4235 Semi-automatic horizontal metal band saws

1. Double-column sawing machine structure, hydraulic feed, good rigidity, stability, sawing smooth.

2 saw blade in fast operation also maintain a good tightening force, extend the life of the saw blade.

3. Steel brush-type cleaning chip, to ensure thorough cleaning of sawdust.

4. Saw narrow, save material, energy saving, high precision sawing, easy operation, high production efficiency.

5. Reasonable saw with a guide device, effectively extending the life of the saw blade. Driven by precision balancing correction, reduce vibration, feed rate is stable, this precision system can prevent abnormal saw blade damage, to achieve the desired sawing effect.

6 with self-diagnostic function, each boot or reset will all kinds of interfaces, parameter settings, coordinates, machining procedures for a full range of diagnosis, operation of the power, spindle, limit and the input and output for real-time diagnosis.

7. Independent operation box, using energy-saving design simple circuit board, clamping, sawing process fully automated, excellent space for the electrical box, stepping to ensure low failure rate and easy machine maintenance, saving time; with internal cooling , Broken belt protection, overload protection, open the door power, lighting and other maintenance boxes

8. Controlled by CNC system, with counting function, regular maintenance tips, regular tool change tips, with three-color lights (green normal operation, yellow strip material, red equipment failure) touch screen display fault information.

9. The equipment is equipped with cooling system, tank water cleaning chip system, easy to clean.

10. The device has the advantages of simple operation, high degree of automation, accurate feeding and so on.

11. After loading the infrared knife function, feeding speed, cutting is complete with automatic alarm function.

12. Set the program to enter a one-time cutting degrees, cutting length, stroke combined cutting, you can set 5 or more cutting combinations.

Parameters

Model	GZK4230/35	GZK4235
Cutting capacity	Round: Φ300mm	Round: Φ350mm
Cutting capacity	Rectangular: 350 x 300 mm	Rectangular: 350 x 350 mm
Blade size	3850×27×0.9 mm	4115×34×1.1 mm
Blade speed(m/min)	40/60/80	40/60/80
Main motor	3.0kw	3.0kw
Oil pump motor	0.55kw	0.75kw
Cooling pump motor	0.04kw	0.09kw
Working clamping	Hydraulic	Hydraulic
Blade tension	Manual	Manual
Working table height	620mm	650mm
Machine size	1950x1200x1400mm	1950x1300x1500mm
Weight	1000kg	1100kg
Column diameter	Φ100mm	Φ100mm

Configurations

Item	Model	Manufacturer
PLC		Taiwan FATEK
Hydraulic components		Hydraulic components
Relay		Taiwan SHINDA
Transformer	BK-300	Zhengtai
Contactor	CJX2-0910	Zhengtai
Small relay	HH52P	Zhengtai
Switching power supply	S-24-35	Schneider
Indicator light	XD16-22DS	Zhengtai
Emergency stop switch	XAY7	Zhengtai
Proximity switch	DHM124MC1-NPN	Schneider
Proximity switch	DHL18-5MC1-NPN	Schneider
Photoelectric switch	P18-03DNA-NPN	Schneider
Combination Switch	HZ5-20/4L02	Schneider

Standard Attachments
Item	Model	Quantity
Saw blade		1
Nut knife		1
Live mouth wrench		1
Allen wrench		1
14,17,19 dumb wrench	14、17、19	1
user's Guide		1
Certificate		1

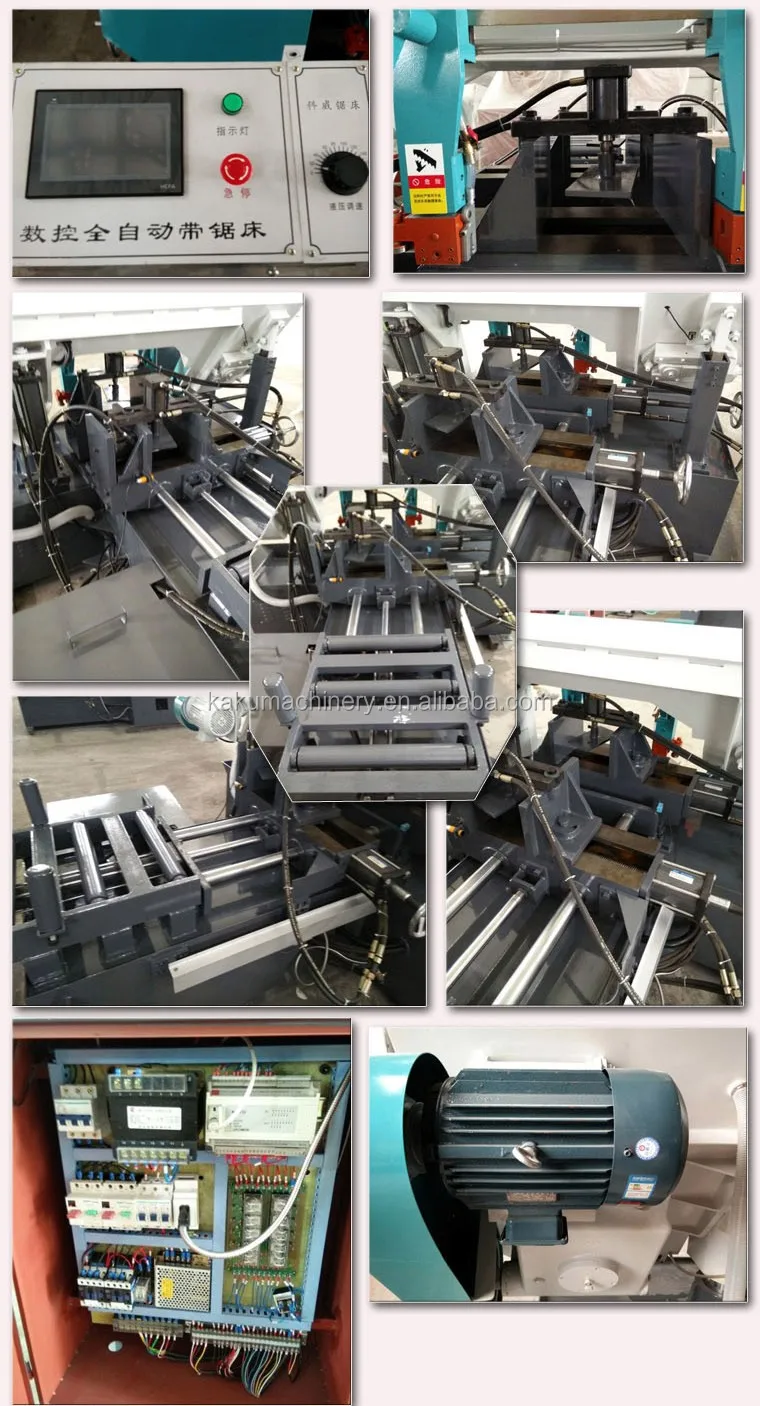

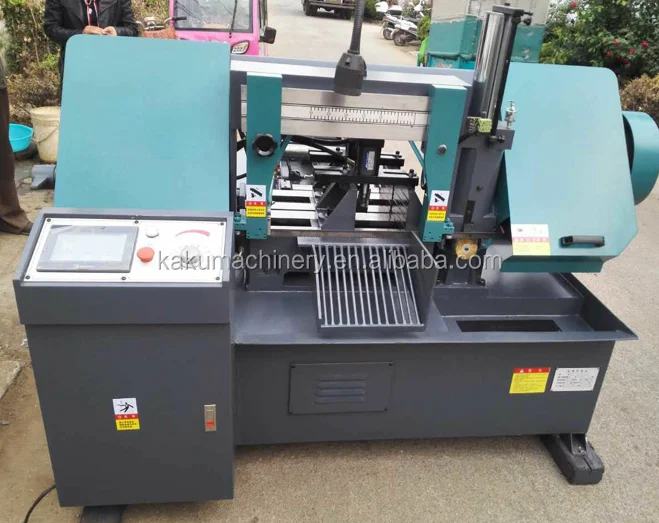

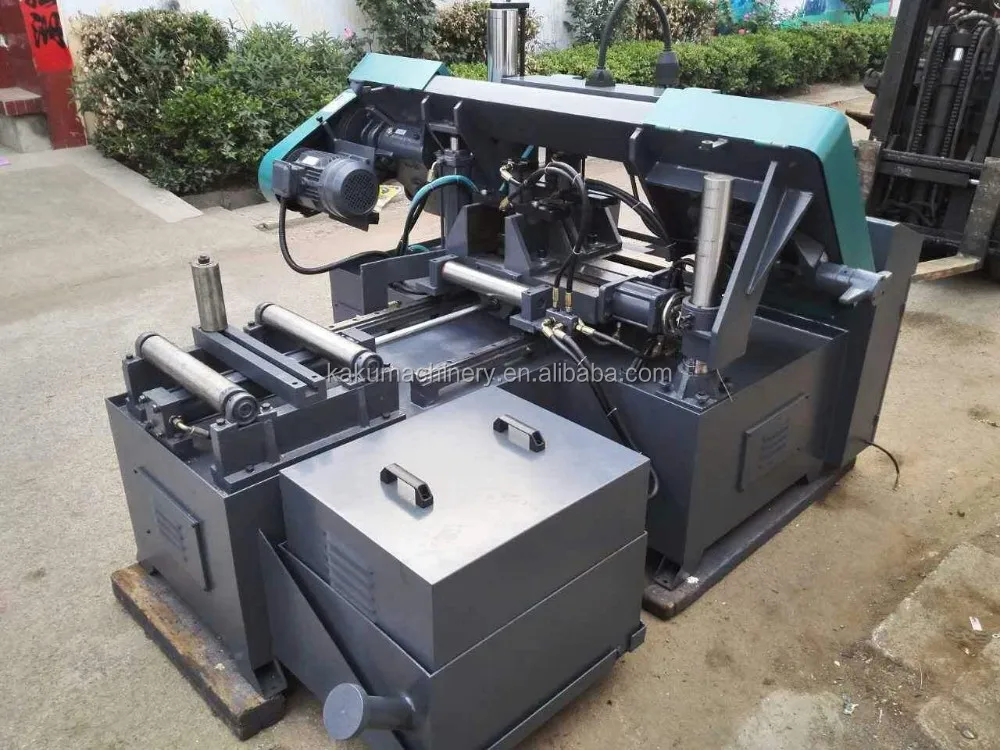

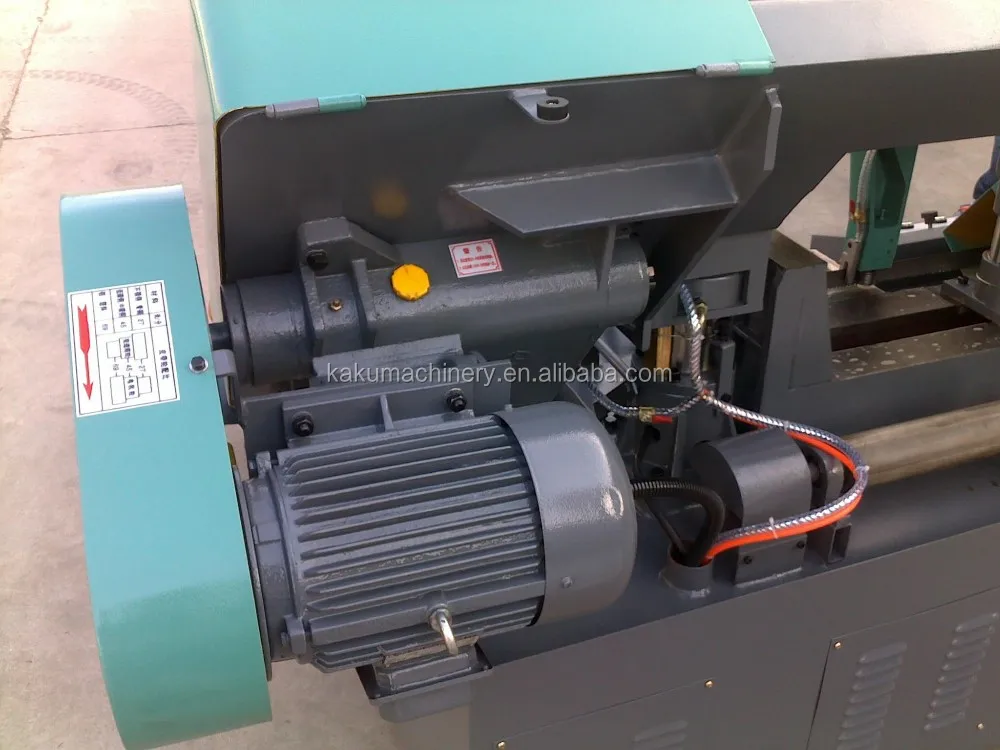

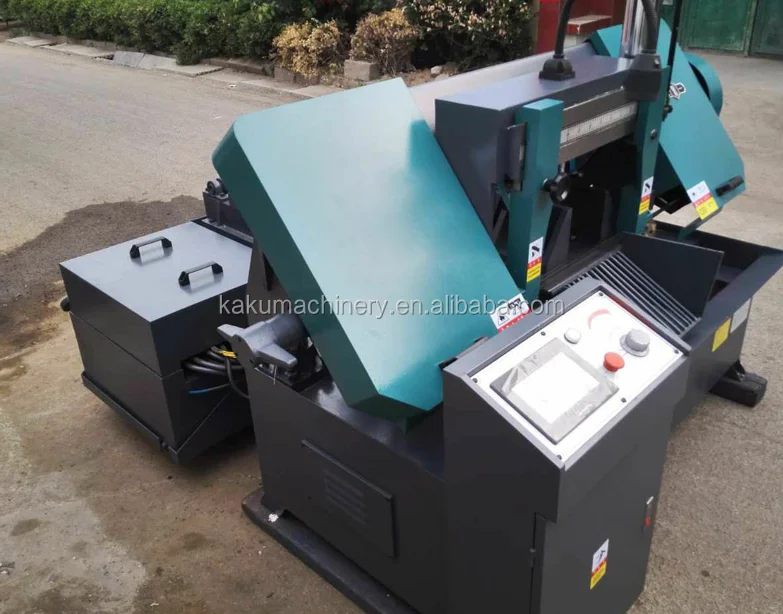

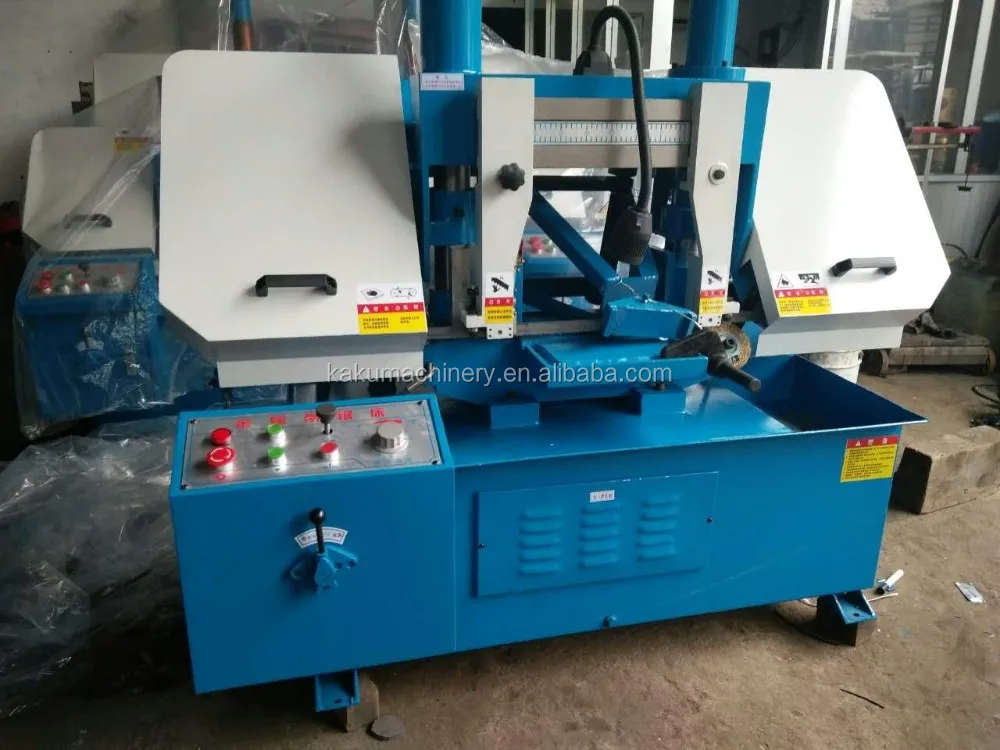

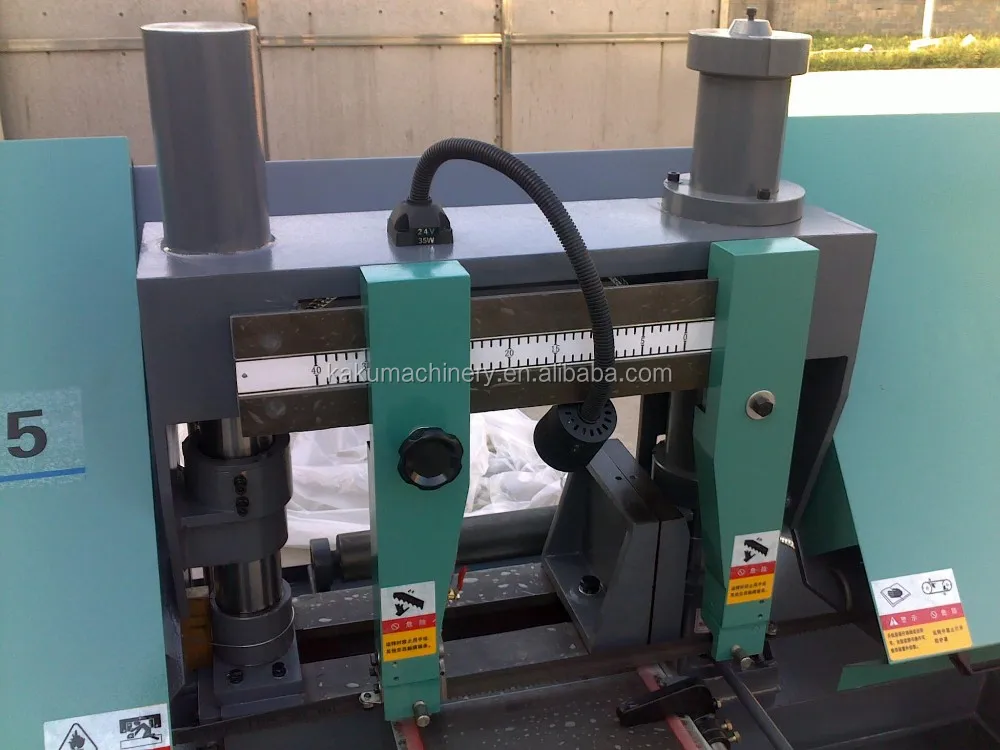

Detailed Images
