Diesel Engine 600m Deep Water Welling Drilling Rig / Rock Well Drilling Rig Machine / hard rock drilling rig

Supplier: Luohe Orange Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jasmine Yuan
Price: $14999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Easy to Operate;	Drilling Speed:	30 m/h;
Drilling Diameter:	300mm,50mm,75mm,60mm,100mm,200mm;	Drilling depth:	600 meter;
Machinery Test Report:	Provided;	Dimension(LWH):	7007002500;
Supply Ability:	500 Set/Sets per Month core drilling equipment for 600m;	Type:	Rotary Drilling Rig;
Brand Name:	ORANGEMECH;	Local Service Location:	None;
Drill rod length:	4m/ piece;	Packaging Detail:	Standard export wooden case package;
Max drilling hole diameter:	300 mm;	Core Components:	Bearing,Gearbox;
Weight:	120KG;	Warranty:	1 Year;
Drilling method:	Percussive and rotating type;	Drilling Depth:	Max.600m;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Showroom Location:	None;
Product name:	core drilling equipment for sale;	Port:	qingdao,shanghai ,ningbo,tianjin,guangzhou etc.;
Applicable Industries:	Farms,Construction works ,Energy & Mining;	Power Type:	Diesel;
Video outgoing-inspection:	Provided;	Usage:	Water Well;
Condition:	New;	Marketing Type:	Ordinary Product;
Warranty of core components:	1 Year;	Place of Origin:	Henan China;
Rod change method:	Full automatic screw thread;	Drilling type:	Twist Spiral Drilling;
Fuel:	diesel;	Voltage:	DIESEL;
Certification:	ISO;	Feature:	diesel engine Mounted;

Product Description

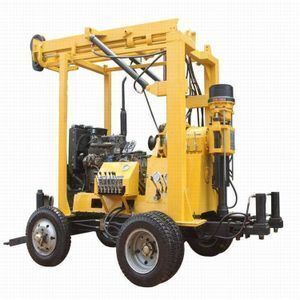

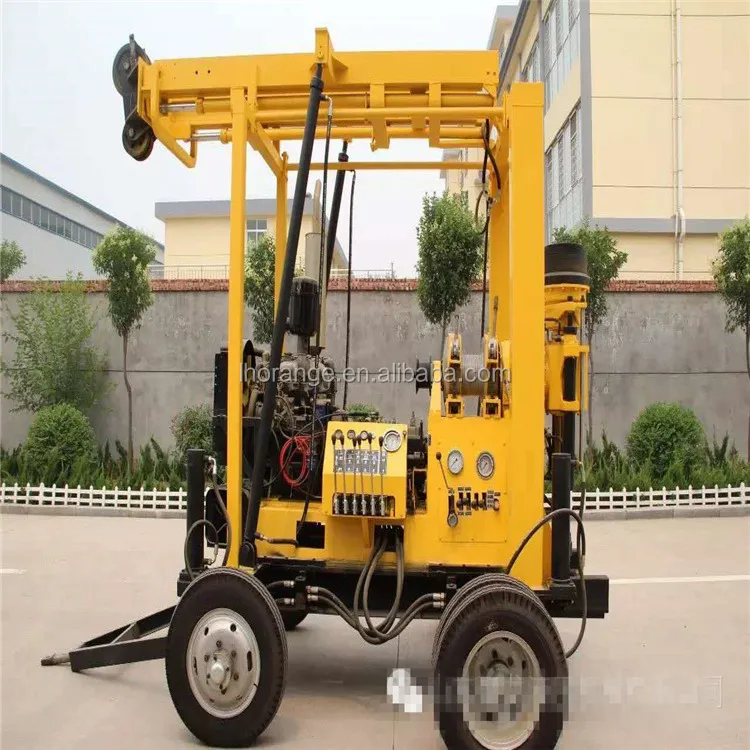

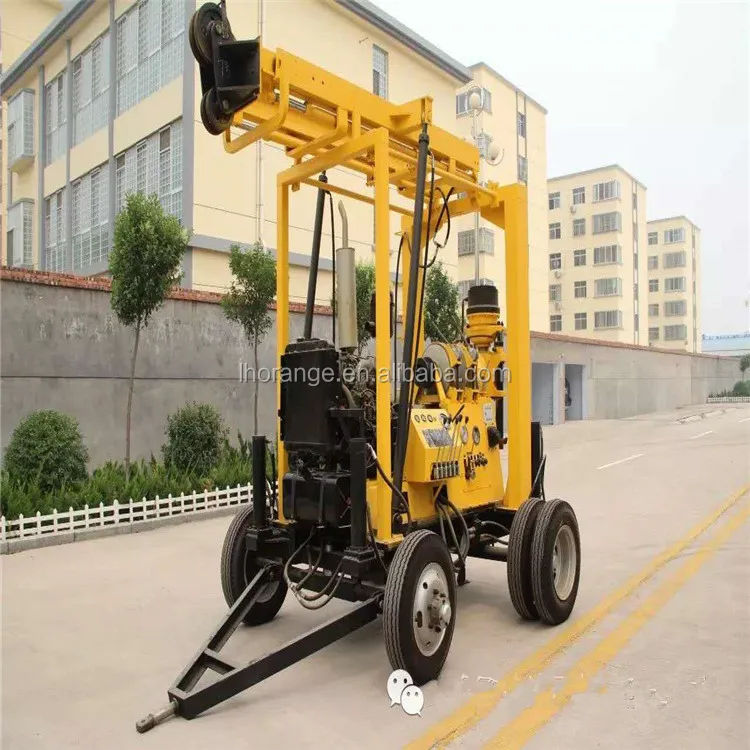

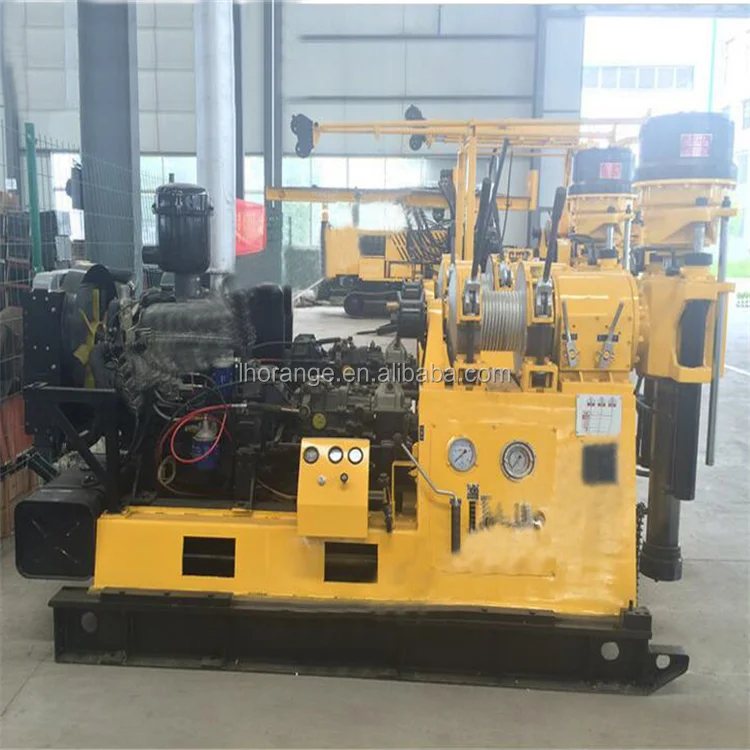

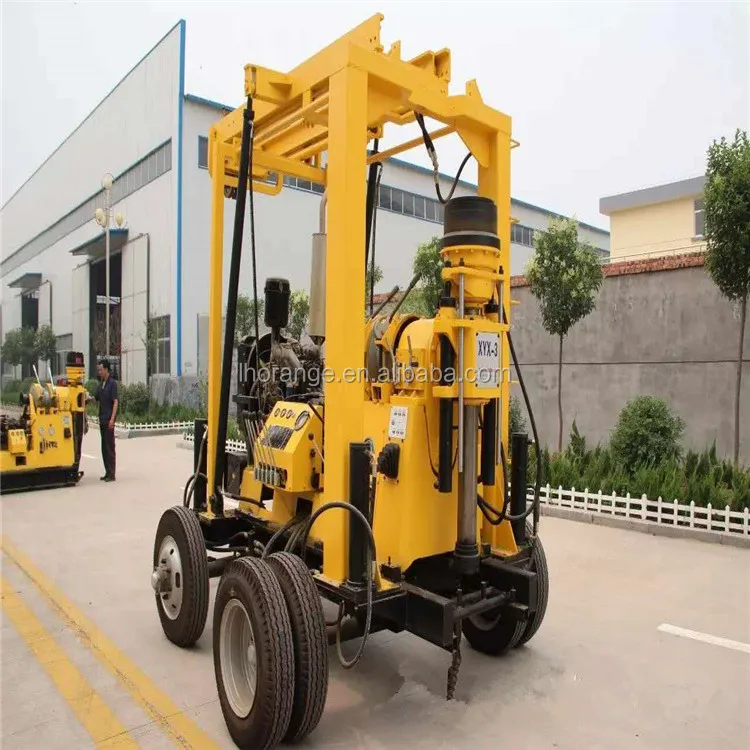

Diesel Engine 600m Deep Water Welling Drilling Rig / Rock Well Drilling Rig Machine / hard rock drilling rig

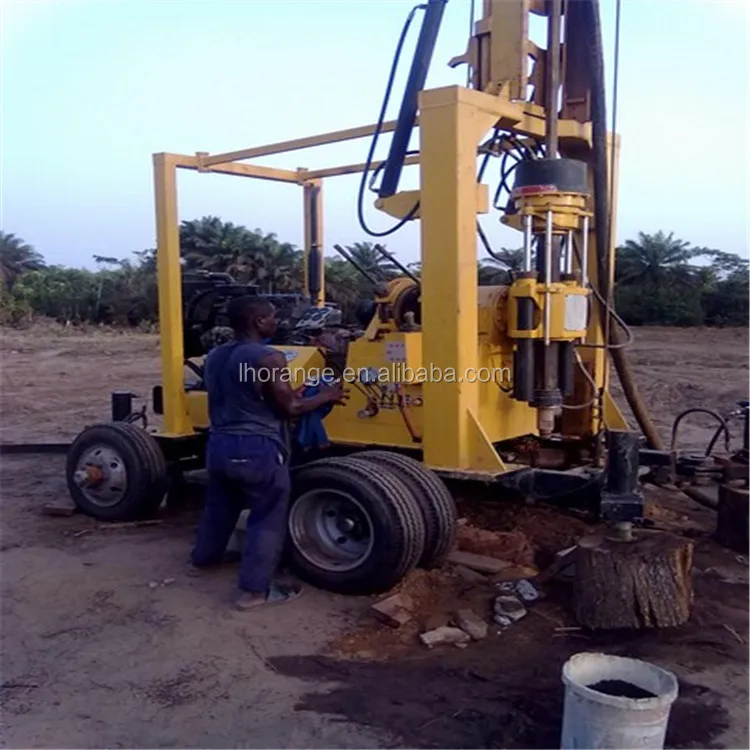

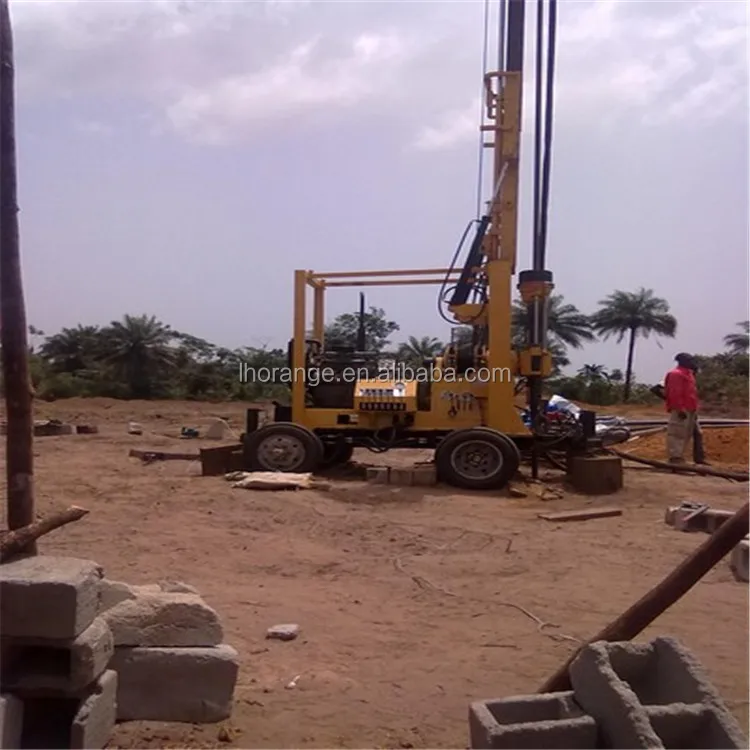

This equipment is a kind of full multifunctional and steady function deep core drilling rig.It suitable for alloy/diamond core drilling,widely used for exploration and gelogical survey,construction project,water-power engineering project,highway,railway and seaport drilling project.Also suitable for drill a water well .

Advantage of this 600m drilling machine:

1,Adopt auto vehicle transmission and cluth,good speed gear,easy operation.

2,Taper clutch with outstanding transmission torque, easy operation and maintenance-free features

3,With light structure,easy disassemble,convenient to move.

4,Four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.

Technology parameter

Drilling depth		600m
Max open hole caliber		325mm
End hole caliber		75mm
Drilling Rod diameter		60mm
Drilling angle		90°~65°
Drill rig moving stroke		600mm
Power		Diesel engine 39HP
Spindle speed		32~1057 r/min
Spindle stroke		600mm
Max.Single line lifting capacity		3000kg
Max.Single line lifting speed		0.41 0.82 1.64m/s
Wirerope caliber		13mm
Mud pump		Diesel 250L/min
Work pressure		1.5Mpa
Water inlet pipe diameter		40mm
Water outlet pipe diameter		30mm
