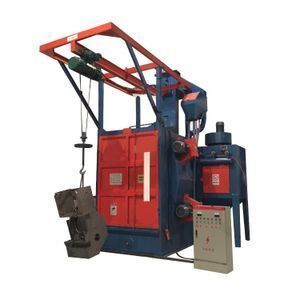

Double hook orbital shot blasting machine, derusting machine used in electric tricycle frame

Supplier: Yancheng Ding Tai Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Merry Wang
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	DingTai;	Keywords:	shot blasting Derusting;
After-sales Service Provided:	Engineers available to service machinery overseas,Online support;	Material:	Metal / Coil;
Payment Terms:	L/C,T/T;	Dimension(LWH):	Customised;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Package Preview:	;	Power:	Cusomized;
Abrasive:	Seel Shot;	Showroom Location:	None;
Machinery Test Report:	Provided;	Advantage:	Service-life Longer;
Core Components:	Motor,shot blasting turbine,dust collector;	Abrator:	High Performance Shot Blasting Blade;
Video outgoing-inspection:	Provided;	Weight (KG):	6000;
Blast wheel:	Driven Blast Wheel;	Port:	shanghai;
Condition:	New;	Warranty:	1 Year;
Certification:	ce,ISO9001:2008;	Local Service Location:	None;
Supply Ability:	50 Set/Sets per Month;	Machine Type:	Abrator;
Warranty of core components:	1 Year;	Packaging Detail:	1.wooden case packing 2.in container;
hook type shot blasting equipment:	made in China;	Usage:	Remove Oxide Scale;
Key Selling Points:	Easy to Operate;	Use:	Burnishing,Degreasing,rust removal and rust cleaning;
Fuel:	Electric;	Cleaning Process:	steel shot /steel grit;
Place of Origin:	Jiangsu China;	Transportation:	Sea Transportation;
Cleaning Type:	shot blasting /sand blasting;	Marketing Type:	Hot Product;
Dust collector:	Cartridge Filters;

Double hook orbital shot blasting machine, derusting machine used in electric tricycle frame

Product description

Q37 series hook type shot blasting cleaning machine is mainly used in steel structures, casting, the surface cleaning and strengthening of the aluminum alloy parts and other components, are widely used in foundry, forging, machinery, iron and steel industry, etc. Have no pit, compact structure, high productivity etc.

Structure

Q37 series hook type shot blasting machine

1.Applicable to many varieties, large, casting, forging, welding and heat treatment of surface cleaning or reinforcement;

2.Single hook type and double type two kind of main form;

3.Chamber adopts fully closed structure, no projectile splash phenomenon;

4.With special wear-resistant alloy cast iron plate

5.Using electric hoist implementation artifacts on unloading, lifting and walking

6.Using rotation devise implementation artifacts in indoor blasting of positive and negative rotation

7.Use automatic or manual control

Technical parameter

Item	Unit	Q376	Q378	Q3710	Q3720	Q3730	Q3750	Q3780
Single Load	kg	600	1000	1000	2000	3000	5000	8000
blast quantity	kg/min	200	250	250	250	250	250	250
separation capacity	T/h	25	30	30	45	45	60	60
lifting capacity	T/h	25	30	30	45	45	60	60
Cleaning workpiece size	mm	600*1100	800*1500	1000*1850	1400*2300	1600*2300	1600*2500	2000*3000
Air volume	m3/h	2800	6000	9000	15000	15000	18000	20000
Total power	kw	22	37	46	61	64	78	81

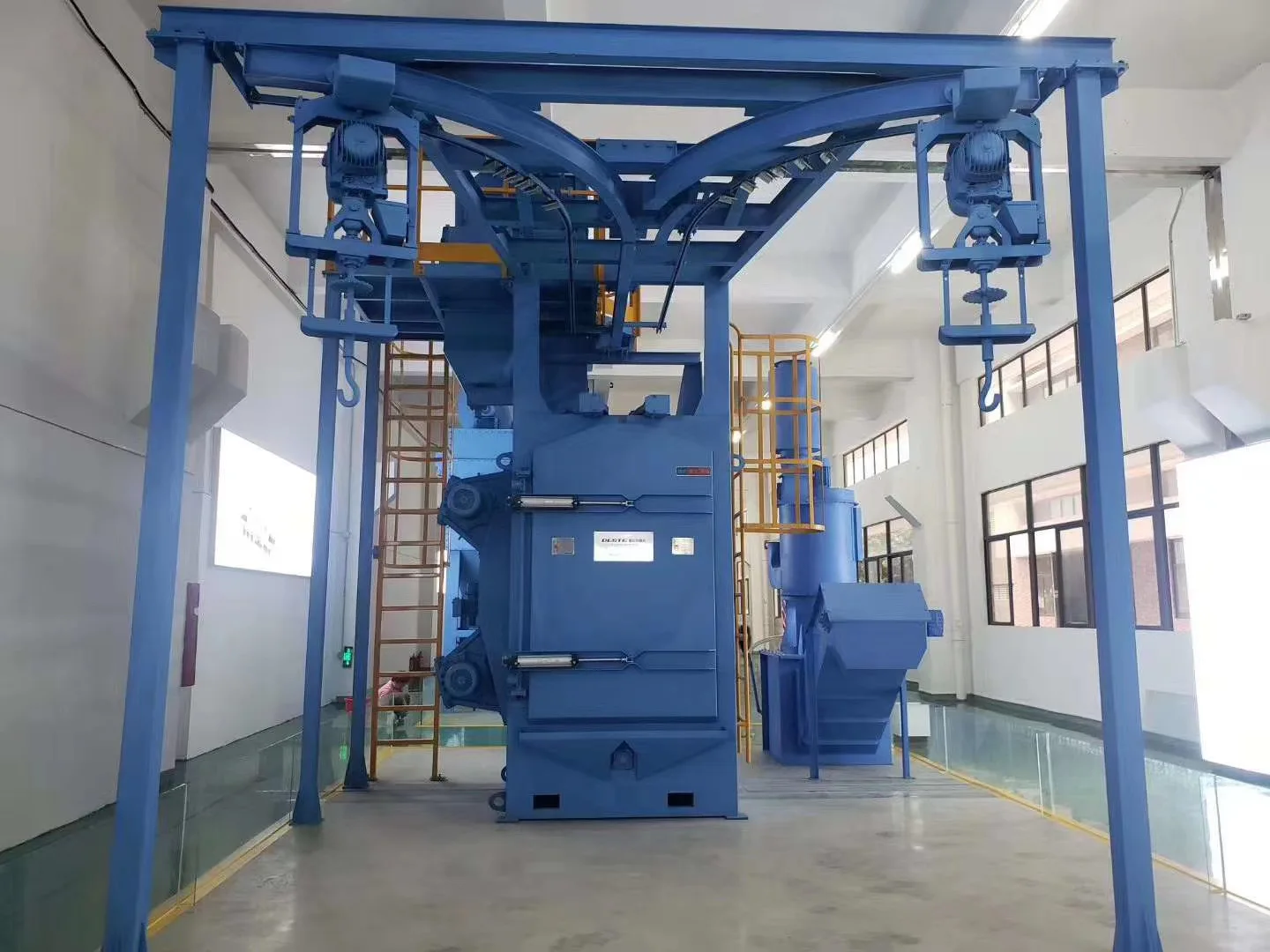

Product show

Packing and delivery

Our clients

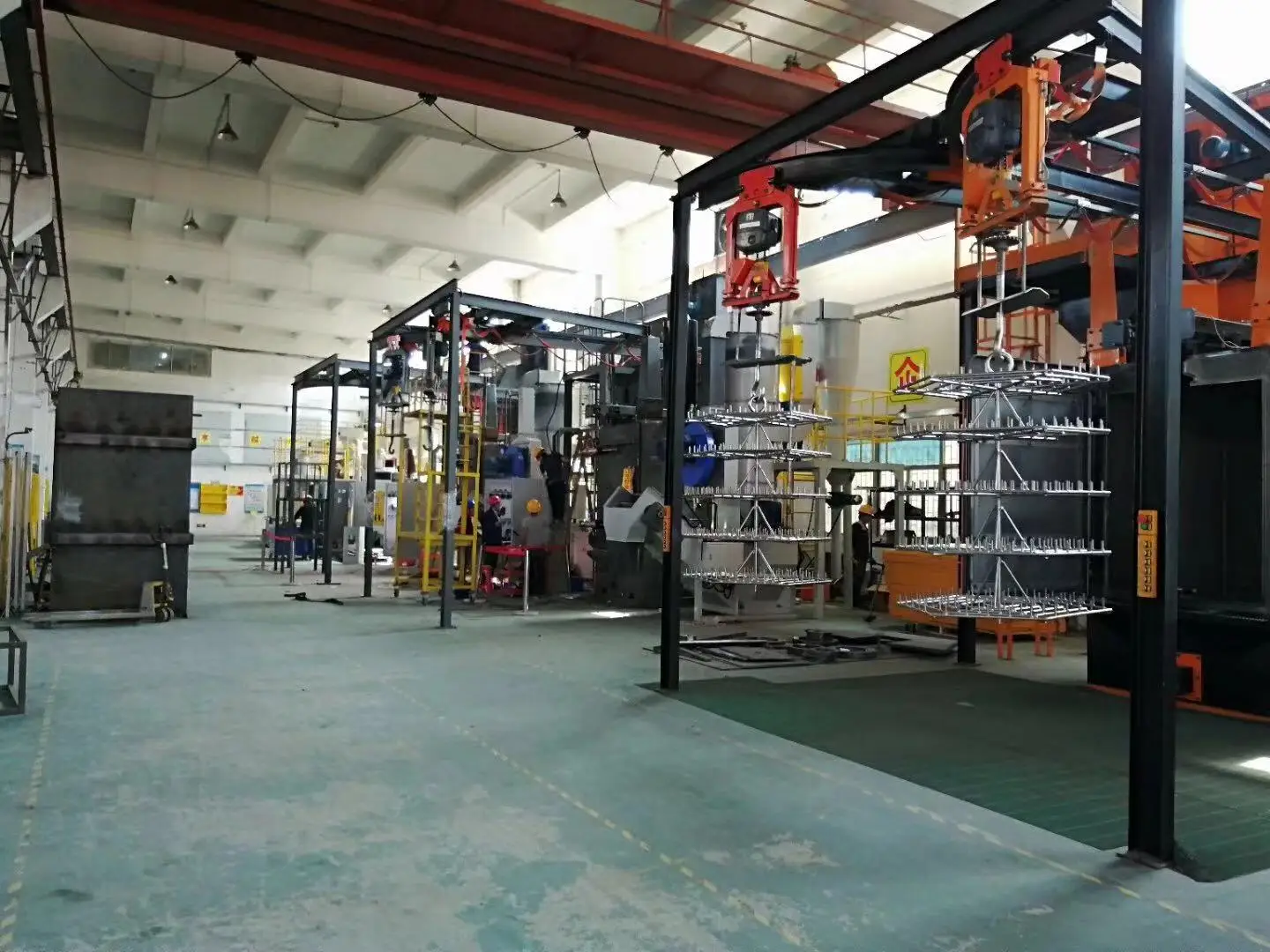

Our office and workshop

Our service

1.Reply your inquiry in time.

2. Experienced staffs answer all your questions in time.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

If you are interested in this equipment, please don't hesitate to contact us!

If the machine is not suitable for your workpiece, please tell us the following infromation:

1) What kind of workpiece will you clean?

2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)

3) How many the weight of maximum and minimum workpiece?

4) Please tell us your requirement cleaning efficiency?

According to your infomation, the most suitable machines will be designed for your workpieces.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-30 days if the goods are not in stock, it is according to clients' requirements.

Q: Do you have warranty period ?

A: Yes, we could offer 0.5-1 year warranty period.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
