Product Introduction:

Machine Manufacturers & Suppliers  Hot Sales New Hook Abrasive Machine For Wiring System Surface Cleaning With Ce Certificate Description:
1. Shot blasting is a method used to clean, strengthen (peen) or Polish metal.
2. Shot blasting is used in almost every industry that uses metal, including aerospace, automotive, construction,foundry,shipbuilding rail, and many others. There are two technologies used: wheel blasting or air blasting.

Machine Manufacturers & Suppliers  Hot Sales New Hook Abrasive Machine For Wiring System Surface Cleaning With Ce Certificate Features:
1. Shot blasting chamber body is made of 6mm manganese steel precision welding; the body with double wear-resistant manganese steel shield fastened by high wear-resistant nuts; Easy to repair and maintenance, greatly improving the maintenance.  Machine body ensure 20 years use life.

2. Y type double rail input and output convey system, manual control loading and unloading, input and output convey(This way is safe)

3. The shot blasting chamber adopts compact and closed design, to ensure no steel shots splash.

4. Adopting  precision casting high performance shot blaster which is equipped with semi-automatic flow control valve to adjust the shot flow.

5. The recovery steel shot adopts spiral pusher + elevator+ air separator, the bottom is equipped with photo electricity induction system to monitor and alarm the pellet recovery system which is stable and reliable.

6. Dust collecting system  uses dry dust collector,fire safety, without any spare parts, use cost low, dust emissions is less than 50 mg/m3.

7. Electrical system adopts Siemens system, and human-machine interface use 7 inches color touch control panel, 3D animation guidance prompt, powerful function.

8. All necessary labels on the machine are posted at distinct positions, such as safety tips, maintenance tips, operation standard, equipment status, customer service engineer card and service record sheet, etc.

9. All motors of the machine are driven by direct transmission, and the safety and maintenance performance are greatly improved.

Machine Manufacturers & Suppliers  Hot Sales New Hook Abrasive Machine For Wiring System Surface Cleaning With Ce Certificate Operation:

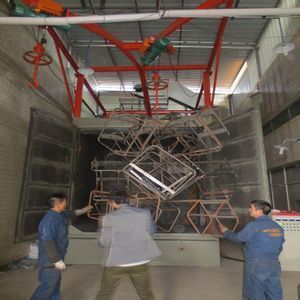

1.Work pieces are placed in work piece holders or are suspended directly from the running gear's rotating hook. The work pieces are then pushed into position in front of the blasting machine. An automatic feed mechanism then advances the work pieces to the first blasting position.

2.After the blasting program begins, the machine door is automatically closed and electro-pneumatically locked. As the work pieces rotate, they are blasted at three different blasting stations according to the pre-set blasting times.

3.The blasting abrasive is continuously cleaned, recirculated and reused. An abrasive metering device feeds the cleaned abrasive from the abrasive storage bunker to the high-performance turbines.

4.Upon completion of the blasting cycle and after the turbines have come to a complete stop, the machine door opens automatically and the suspended work pieces return to their initial position.

5.A fan unit creates the partial vacuum necessary to maintain dust-free operation of the blasting unit. Extracted air is cleaned in a special filter unit.

Machine Manufacturers & Suppliers  Hot Sales New Hook Abrasive Machine For Wiring System Surface Cleaning With Ce Certificate Technology Data:

+

             Spinner Hanger Hook Type Shot Blasting Machine Technology Data

Model

MHB2-1216P11-2

MHB2-1216P11
-2E

MHB2-1216P11
-2M

MHB2-1216P11
-2H

NO.

Technology Data

Economical

Medium Quality

High Quality

1

Application

Gear/Gear Shaft/Forging/Casting Parts etc.

2

Machine Size:L*W*H

6300mm*8200mm*5550mm

3

Parts Size (mm)

1200*1600(Rotary Dia.* Height)

4

Working Way

Hanging type(Double Hanger)

5

Hanger RataryDia.

1200mm

6

Loading Weight

1000kgs(Including tooling)

7

Produce Speed

10-15 batch/min

8-10 batch/min

5-8 batch/min

8

Dust Emision(mg/m³)

≤30

≤20

9

Noise(dB)

≤85

≤80

10

Total Power(kw)

37.3

40.8

42.8

11

Air Loss(m³/min)

0.5

NO.

Configuration

Economical

Medium Quality

High Quality

1

Full Manganese Steel Shot Blasting Room

YES

2

Steel Shot Automatic Recycle
System Fault Detection Alarm

YES

3

DC-6 Cartridge Filter

YES

NO

4

MWDC-80 Wet Dust Collector

NO

YES

5

Q034-11kw Impeller Head

YES

NO

6

P11 Impeller Head

NO

YES

7

Dust Cyclone Separation System

NO

YES

8

Hanger Automatic Lifting System

YES

9

Hanger Auto-loading and Unloading System

YES

10

Steel Shot Flow Semi-Automatic Control System

YES

NO

11

Steel Shot Flow Automatic Control System

NO

YES

12

Impeller Head Frequency Converter Control

NO

YES

13

Electrical Cabinet Air Condition

NO

YES

14

Soundproof Room

NO

YES

15

Vibrating Screen Sorting System

FOR CHOOSING

16

Tooling Customization

FOR CHOOSING

17

Storage Silo Alarm System

NO

YES

18

Maintenance Tool (1 Set)

YES

19

Spare Parts

FOR CHOOSING


Machine Manufacturers & Suppliers  Hot Sales New Hook Abrasive Machine For Wiring System Surface Cleaning With Ce Certificate Main Parts:
1.Shot blasting chamber: 1 set
2.Rail systems (2 sets hanger): 1 set
3.Spiral pusher system: 1 set
4.Elevator system: 1 set
5.Separator system: 1 set
6.Maintenance platform: 1 set
7.Steel shot semi-automatic flow valve: 2 sets
8.CNC processing turbine: 2 sets
9.Transmission system: 1 set
10.Dust collecting system: 1 set
11.Electric system: 1 set

Machine Manufacturers & Suppliers  Hot Sales New Hook Abrasive Machine For Wiring System Surface Cleaning With Ce Certificate Application Industry:
1. Wind power gear , fire power gear.brake,casting,metal,machinery.
2. Mine machine gear box.
3. Heavy gear.
4.Metal, including aerospace, automotive, construction,foundry, shipbuilding rail, and many others.
